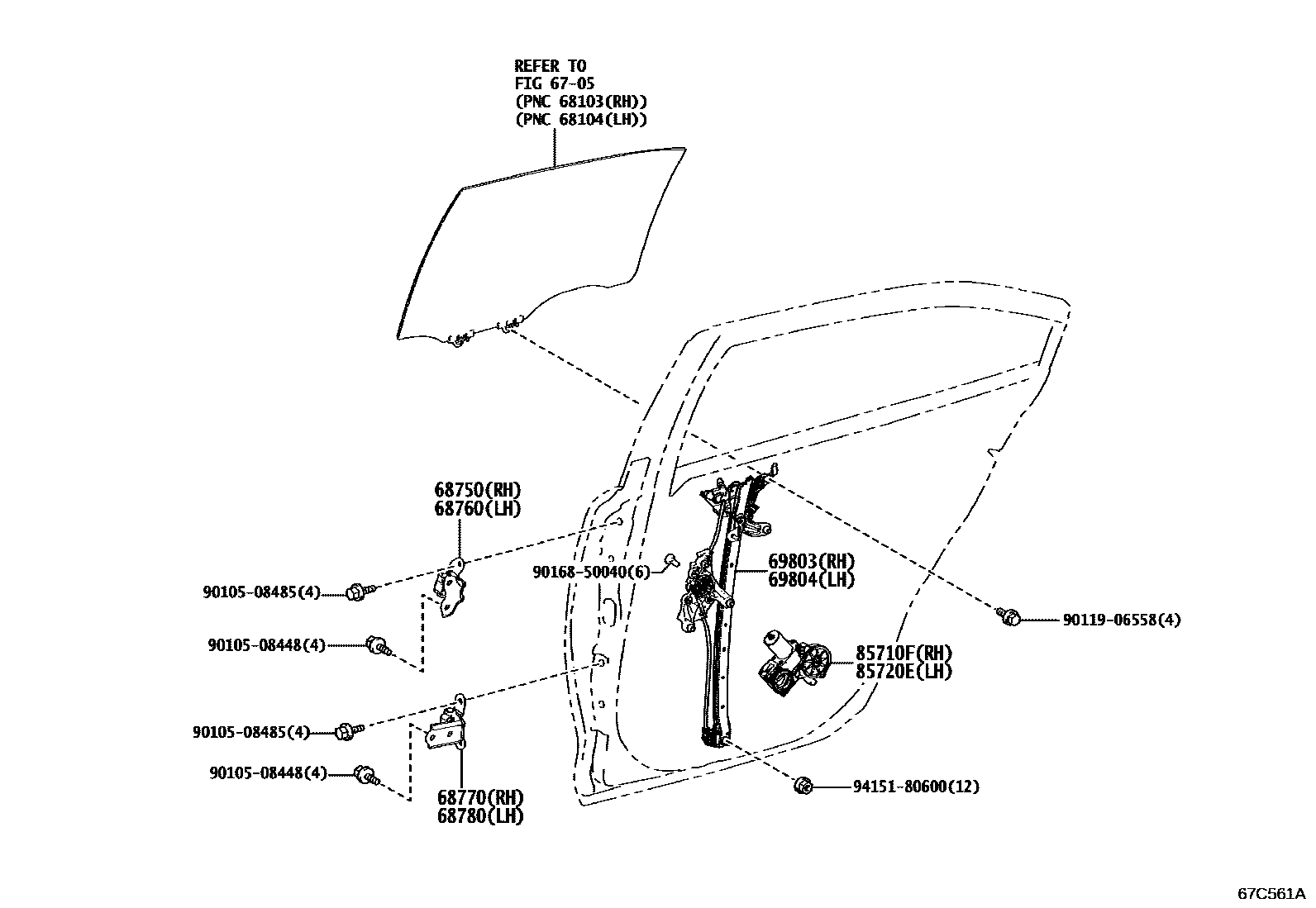

Toyota GR COROLLA — REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1 0003 1RC�������(2���)

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122iGZEA14..02S¥1,850202212-202304

main68750-20122iGZEA14..05S¥1,850202212-202409

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20122iGZEA14..02S¥1,850202212-202304

main68760-20122iGZEA14..05S¥1,850202212-202409

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-33050iGZEA14..02S¥2,030202212-202304

main68770-33050iGZEA14..05S¥2,030202212-202409

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-33050iGZEA14..02S¥2,030202212-202304

main68780-33050iGZEA14..05S¥2,030202212-202409

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-12213iGZEA14..05S¥3,940202212-202409

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-12213iGZEA14..05S¥3,940202212-202409

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12541iGZEA14..05S¥12,600202212-202306

main85710-12570iGZEA14¥12,600202306-202409

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12531iGZEA14..05S¥12,600202212-202306

main85720-12580iGZEA14¥12,600202306-202409

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

9011906558

main90119-06558¥70

9016850040

main90168-50040¥70

9415180600

main94151-80600¥60

14 parts on this diagram · 3 diagrams in section
