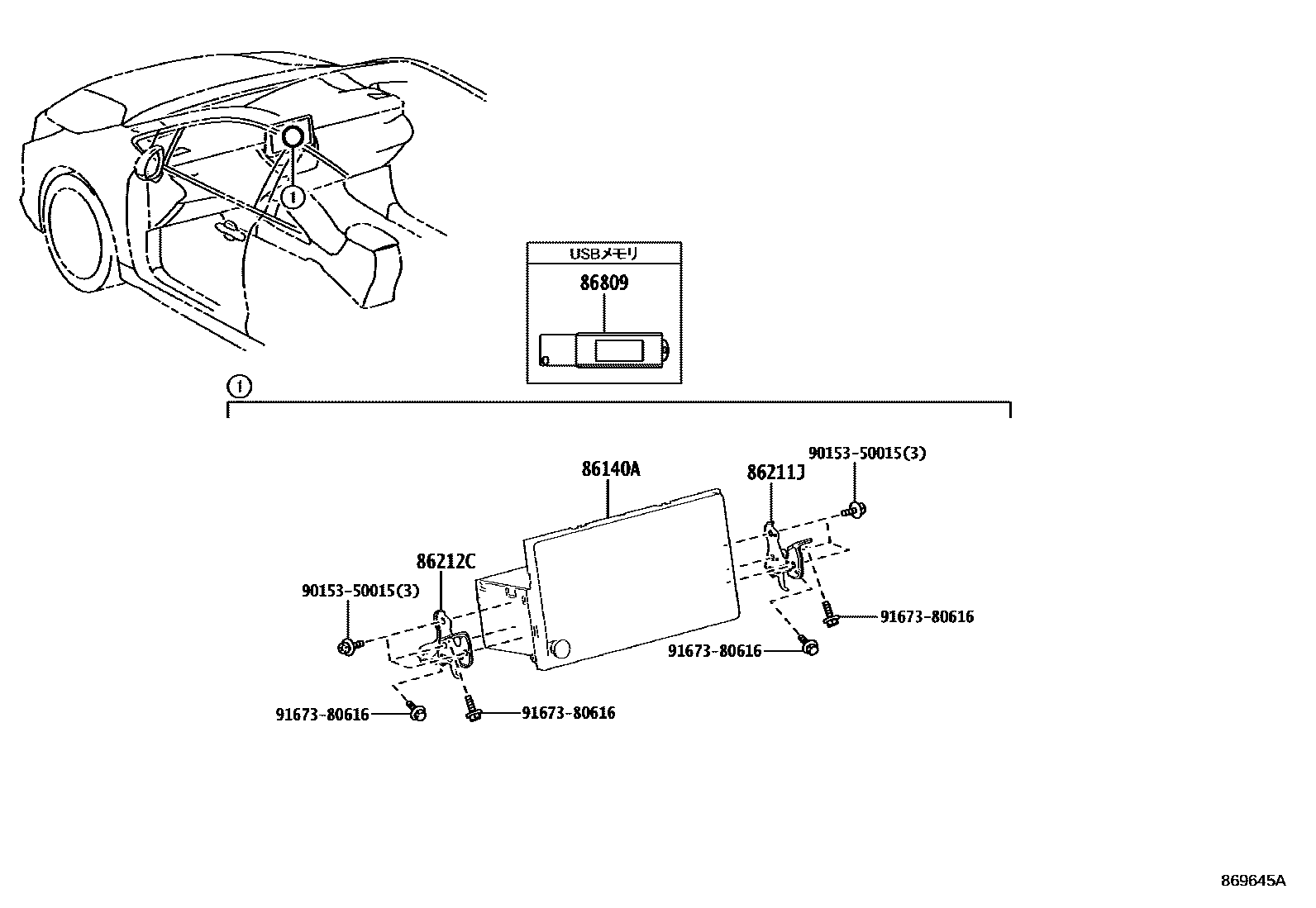

Toyota GR COROLLA — NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-12E30iGZEA14¥179,000202212-202302

�c�d�m�r�n�@�s�d�m

main86140-12E31iGZEA14¥185,000202303-202310

�c�d�m�r�n�@�s�d�m

main86140-12E32iGZEA14¥185,000202311-202402

�c�d�m�r�n�@�s�d�m

main86140-12E33iGZEA14¥185,000202403-202405

�c�d�m�r�n�@�s�d�m

main86140-12E34iGZEA14¥185,000202406-202409

�c�d�m�r�n�@�s�d�m

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-12470iGZEA14..02S¥260202212-202304

main86211-12470iGZEA14..05S¥260202212-202409

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-12460iGZEA14..02S¥320202212-202304

main86212-12460iGZEA14..05S¥320202212-202409

86809USB SET, USB MEMORY NAVIGATION DATA

main86809-78011¥27,600

main86809-78012¥27,600

main86809-78013¥27,600

main86809-78014¥27,600

9015350015

main90153-50015¥60

9167380616

main91673-80616¥60

6 parts on this diagram · 3 diagrams in section
