Toyota GR COROLLA — METER

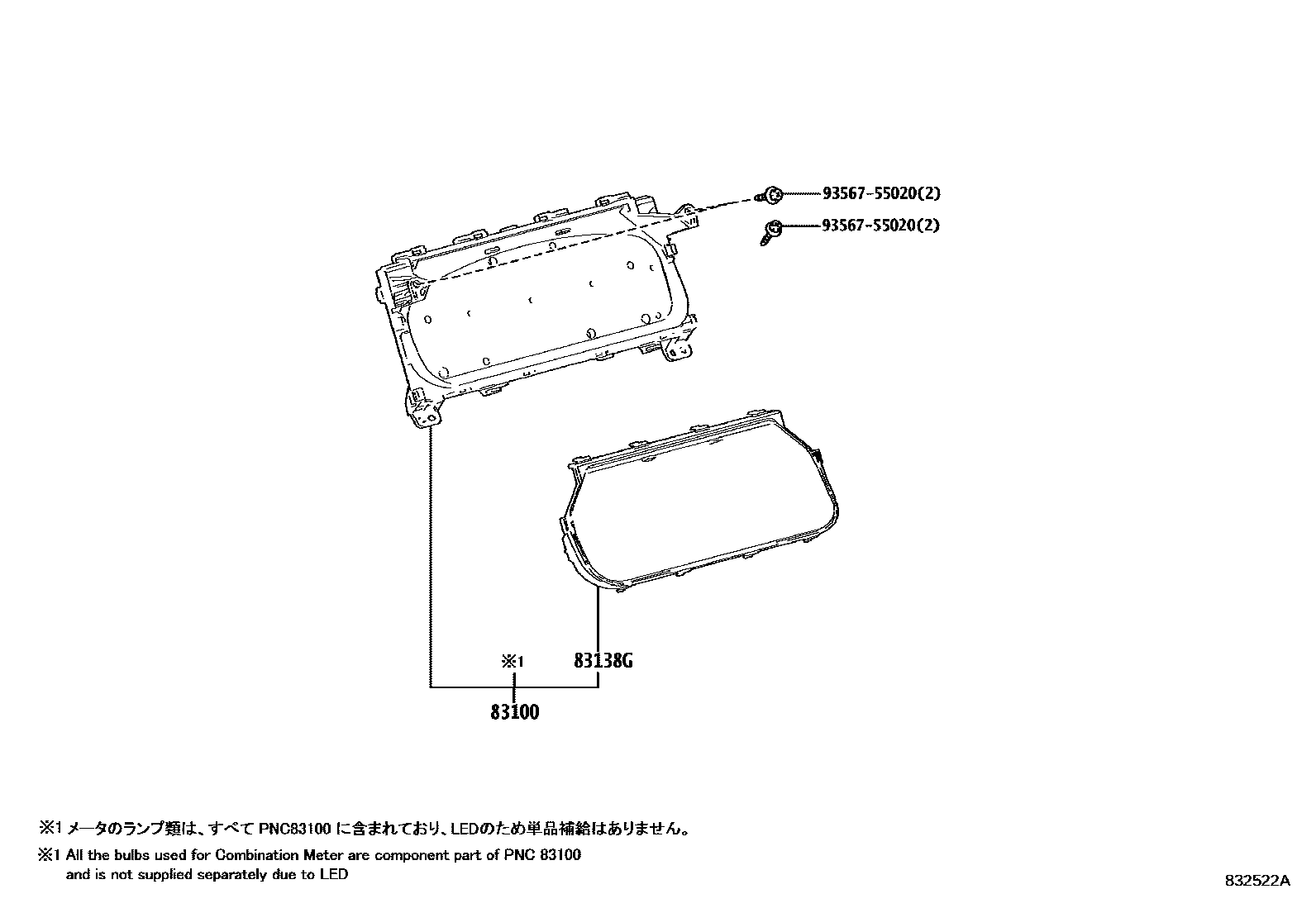

Parts diagram

83100METER ASSY, COMBINATION

main83800-1AW10i¥106,000202212-202304

�c�d�m�r�n

sub83800-1AW11¥106,000

main83800-1AW10i¥106,000202212-202305

�c�d�m�r�n

sub83800-1AW11¥106,000

main83800-1AW11i¥106,000202306-202309

�c�d�m�r�n

sub83800-1AW12¥106,000

main83800-1AW12i¥106,000202309-202311

�c�d�m�r�n

sub83800-1AW13¥112,000

main83800-1AW13i¥112,000202311-202409

�c�d�m�r�n

83138GGLASS, COMBINATION METER

main83852-16760i¥1,750202212-202304

main83852-16760i¥1,750202212-202409

9356755020

main93567-55020¥70

3 parts on this diagram · 2 diagrams in section
