Toyota GR COROLLA — IGNITION COIL & SPARK PLUG / GLOW PLUG

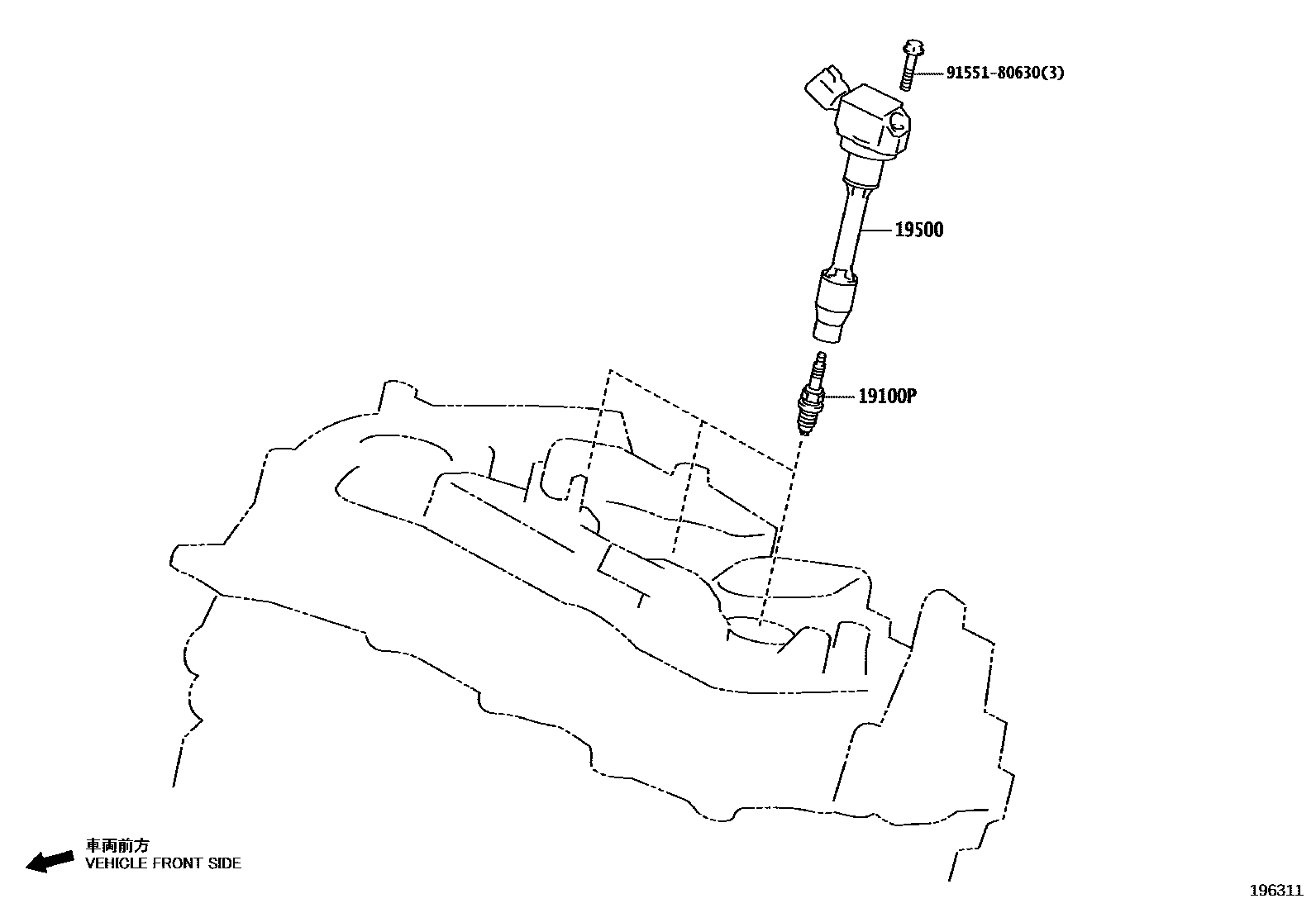

Parts diagram

19100PPLUG, SPARK

main90919-01302i¥2,300202212-202409

19500COIL ASSY, IGNITION

main90919-02277i¥7,500202212-202409

9155180630

main91551-80630¥60

3 parts on this diagram · 1 diagram in section
