Toyota GR COROLLA — HORN

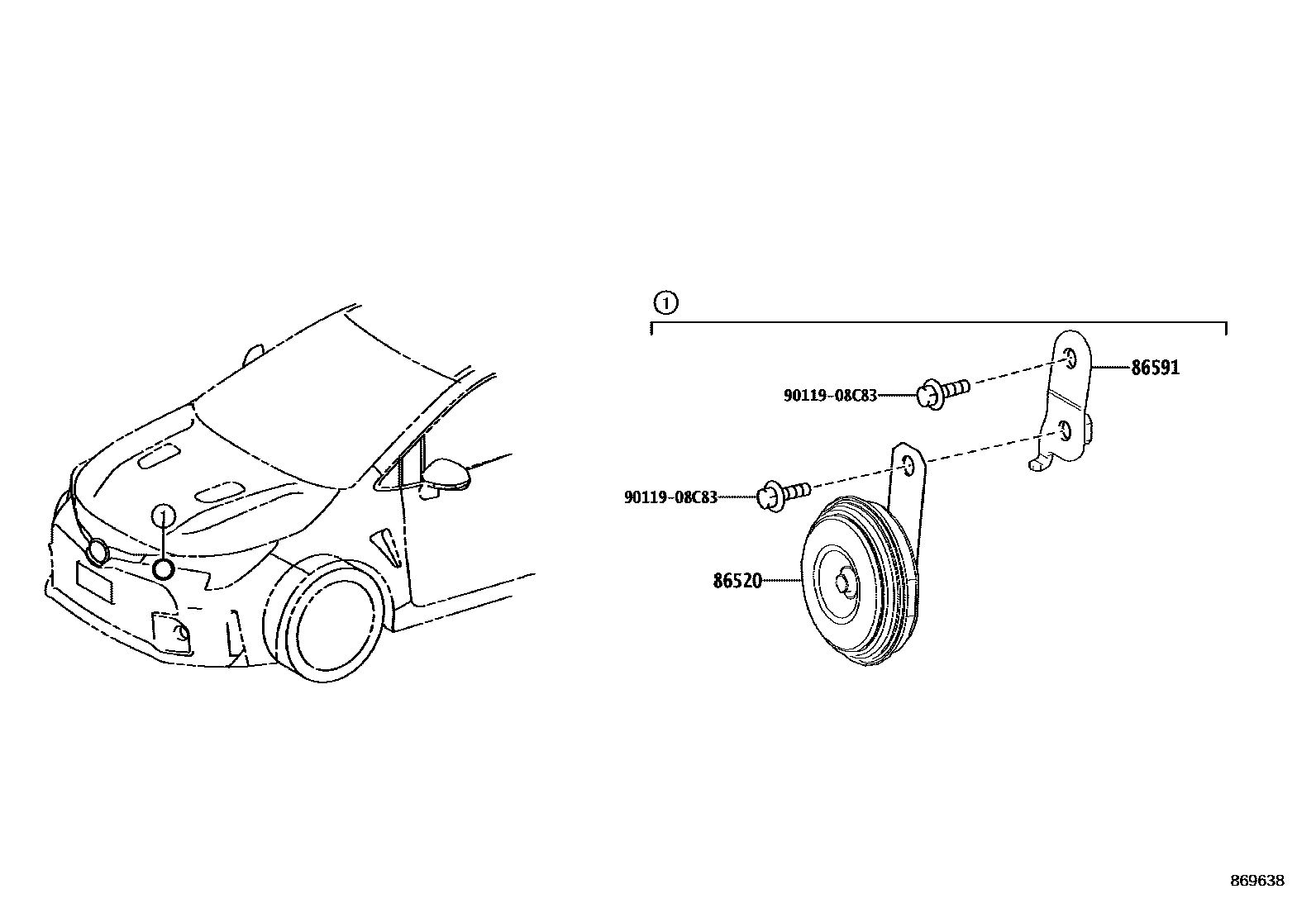

Parts diagram

86520HORN ASSY, LOW PITCHED

main86520-52230i¥2,190202212-202304

main86520-52230i¥2,190202212-202409

86591BRACKET, HORN

main86591-12090i¥410202212-202304

main86591-12090i¥410202212-202409

9011908C83

main90119-08C83¥80

3 parts on this diagram · 1 diagram in section
