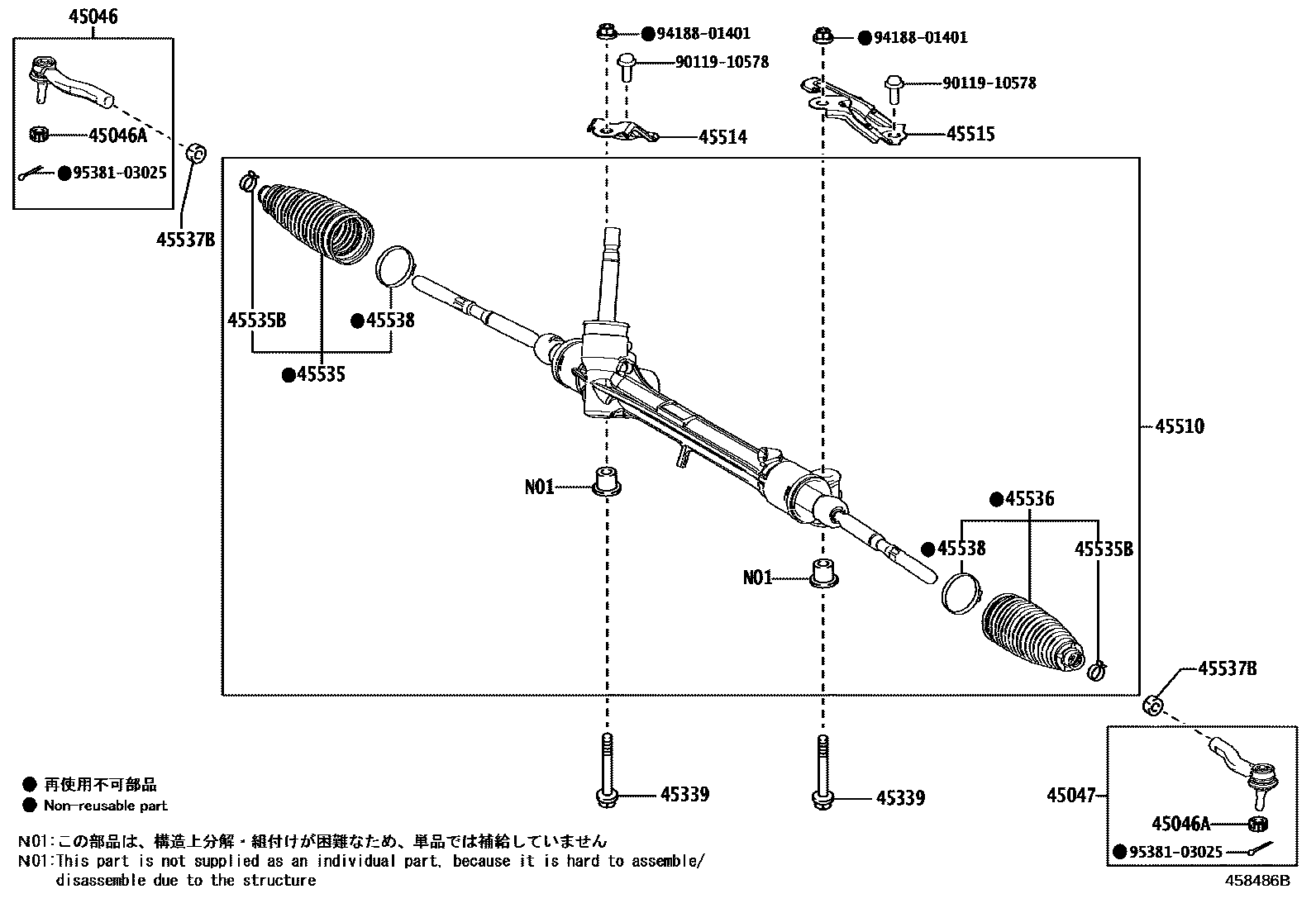

Toyota GR COROLLA — FRONT STEERING GEAR & LINK
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45339BOLT, STEERING GEAR HOUSING
45510GEAR ASSY, STEERING
45514BRACKET, STEERING RACK HOUSING, NO.1
45515BRACKET, STEERING RACK HOUSING, NO.2
45535BOOT, STEERING RACK, NO.1
45535BCLIP(FOR STEERING RACK BOOT)
45536BOOT, STEERING RACK, NO.2
45537BNUT, RACK END LOCK
45538RETAINER, STEERING RACK BOOT
9011910578
9418801401
9538103025
15 parts on this diagram · 1 diagram in section
