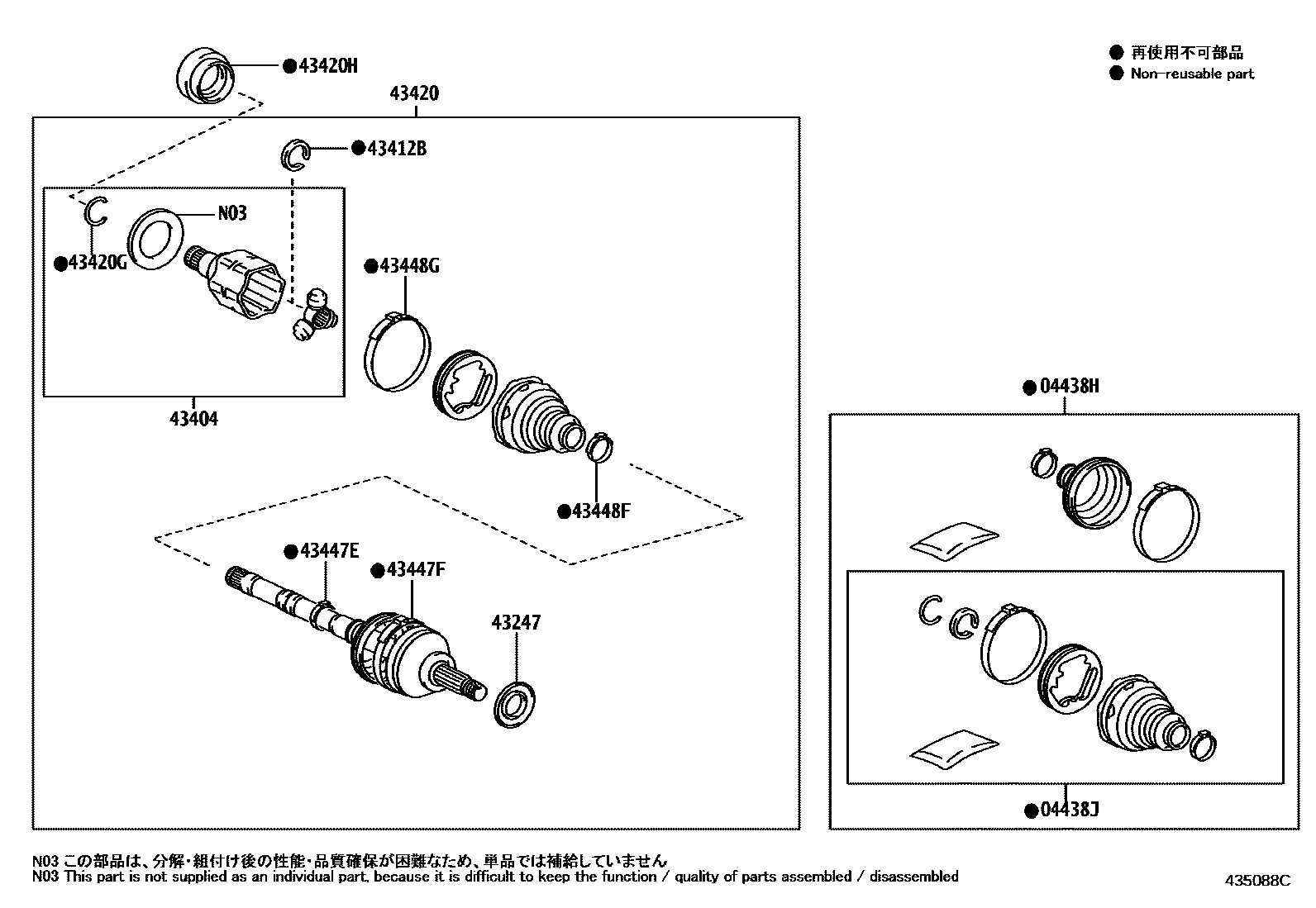

Toyota GR COROLLA — FRONT DRIVE SHAFT

0001 1������� 0002 1������

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04427-12810iGZEA14..02S¥7,700202212-202409

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04438-33150iGZEA14..02S¥4,150202212-202409

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-76010iGZEA14..02S¥480202212-202409

43404JOINT SET, FRONT AXLE INBOARD, LH

main43404-12020iGZEA14¥14,900202212-202409

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-58030iGZEA14..02S¥60202212-202409

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-12B70iGZEA14..02S¥44,900202212-202409

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main43425-78050iGZEA14..02S¥100202212-202409

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50058iGZEA14¥610202212-202409

main90311-50058iGZEA14¥610202212-202409

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-24020iGZEA14..02S¥400202212-202409

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-58140iGZEA14..02S¥510202212-202409

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-48140iGZEA14..02S¥260202212-202409

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-48130iGZEA14..02S¥450202212-202409

12 parts on this diagram · 2 diagrams in section
