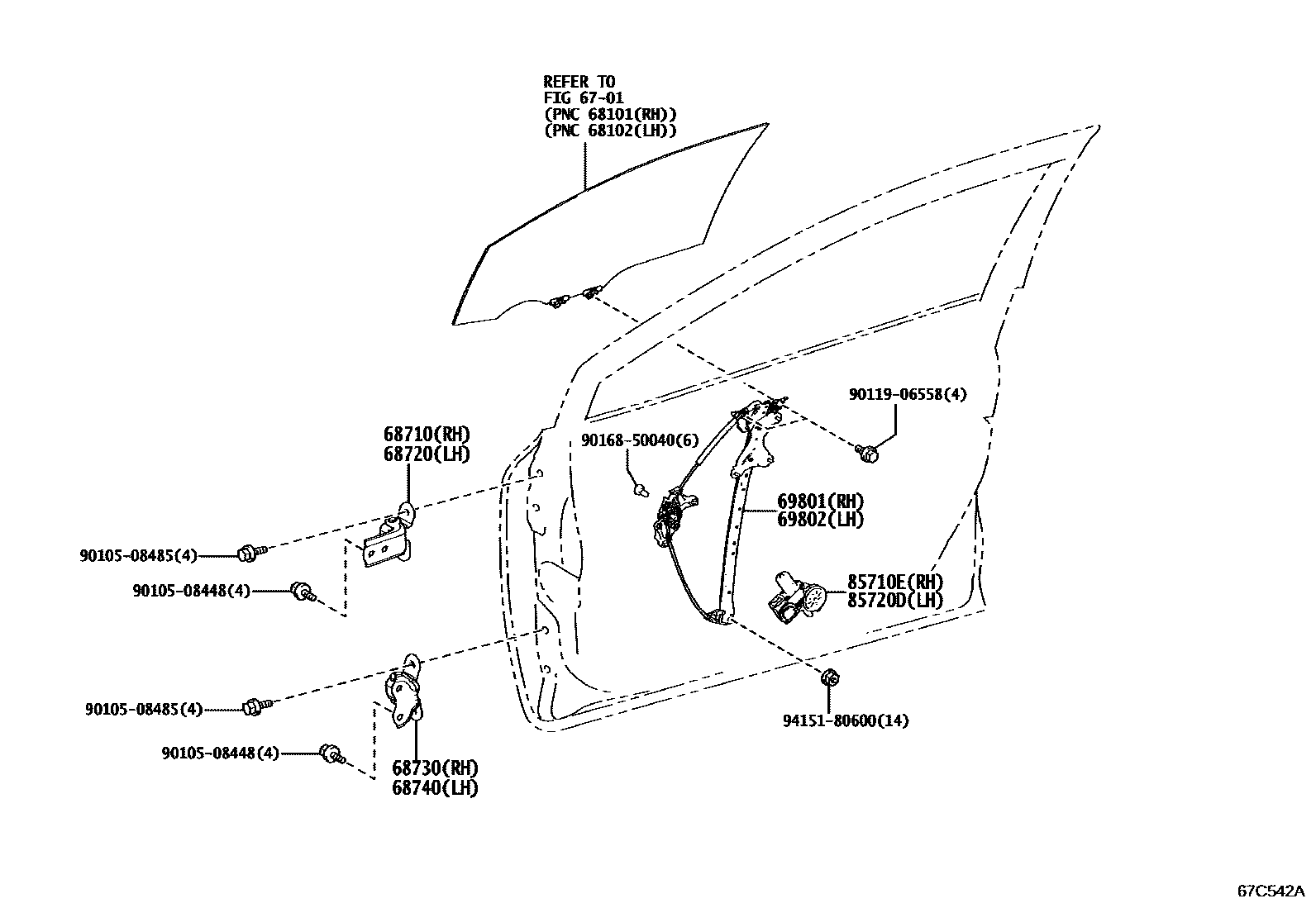

Toyota GR COROLLA — FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iGZEA14..02S¥2,050202212-202409

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iGZEA14..02S¥2,050202212-202409

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iGZEA14..02S¥2,240202212-202409

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iGZEA14..02S¥2,240202212-202409

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12273iGZEA14..02S¥3,940202212-202409

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12273iGZEA14..02S¥3,940202212-202409

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12531iGZEA14..02S¥12,600202212-202306

main85710-12560iGZEA14¥12,600202306-202409

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12521iGZEA14..02S¥12,600202212-202306

main85720-12570iGZEA14¥12,600202306-202409

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

9011906558

main90119-06558¥70

9016850040

main90168-50040¥70

9415180600

main94151-80600¥60

14 parts on this diagram · 1 diagram in section
