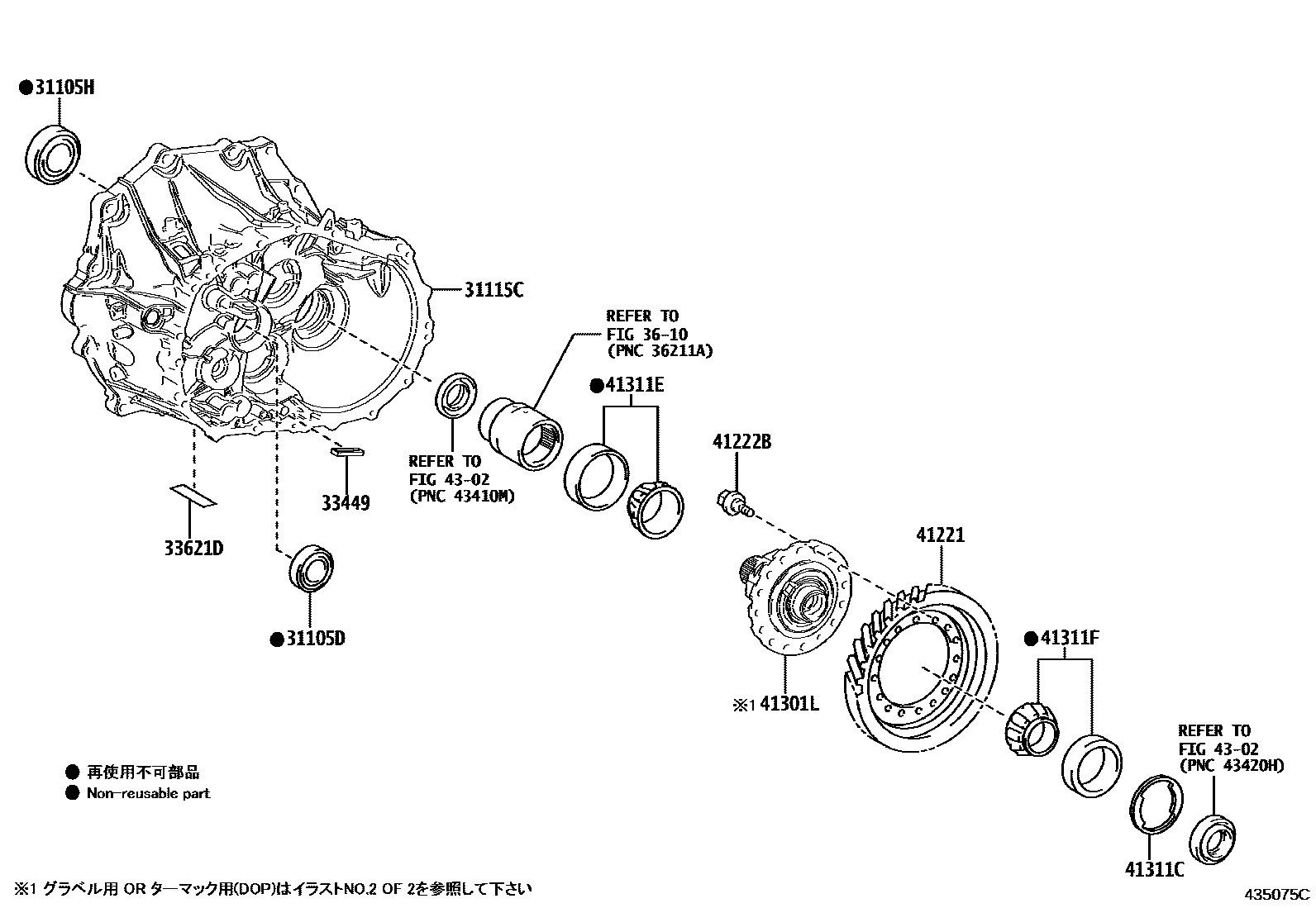

Toyota GR COROLLA — FRONT AXLE HOUSING & DIFFERENTIAL
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)
31115CCASE, FRONT TRANSAXLE(MTM)
33449MAGNET, TRANSMISSION
33621DLABEL, TRANSAXLE OIL INFORMATION
3610
41221GEAR, FRONT DIFFERENTIAL RING
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41301LCASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
41311CASE, FRONT DIFFERENTIAL
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
4302
14 parts on this diagram · 3 diagrams in section
