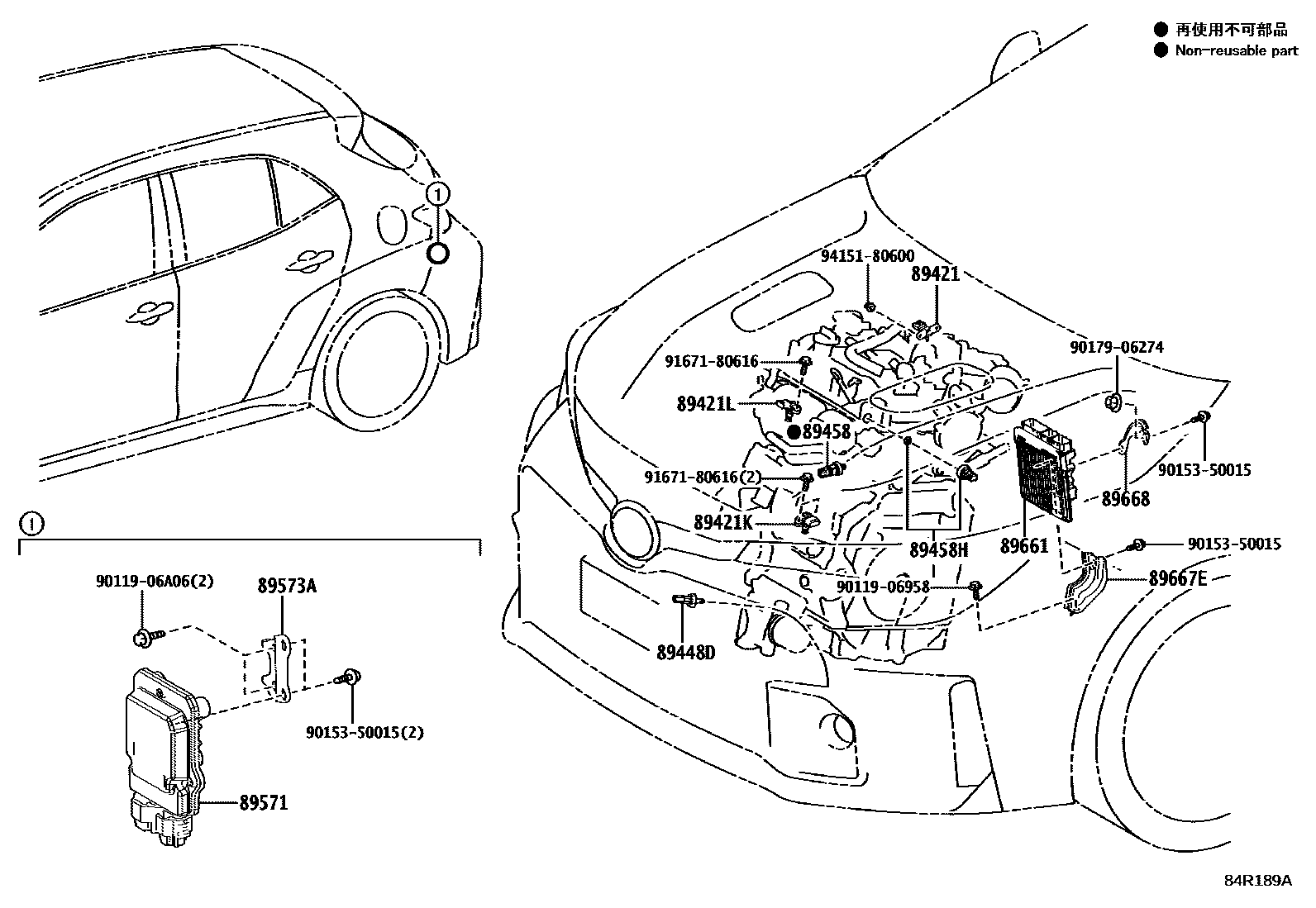

Toyota GR COROLLA — ELECTRONIC FUEL INJECTION SYSTEM
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89421KSENSOR, TURBO PRESSURE, NO.1
89421LSENSOR, TURBO PRESSURE, NO.2
89448DSENSOR, OIL PRESSURE & TEMPERATURE
89458SENSOR, FUEL PRESSURE
89458HSENSOR, FUEL PRESSURE, NO.2
89571COMPUTER, FUEL PUMP CONTROL
89573ABRACKET, FUEL PUMP CONTROL COMPUTER, NO.2
89661COMPUTER, ENGINE CONTROL
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9011906958
9011906A06
9015350015
9017906274
9167180616
9415180600
17 parts on this diagram · 1 diagram in section
