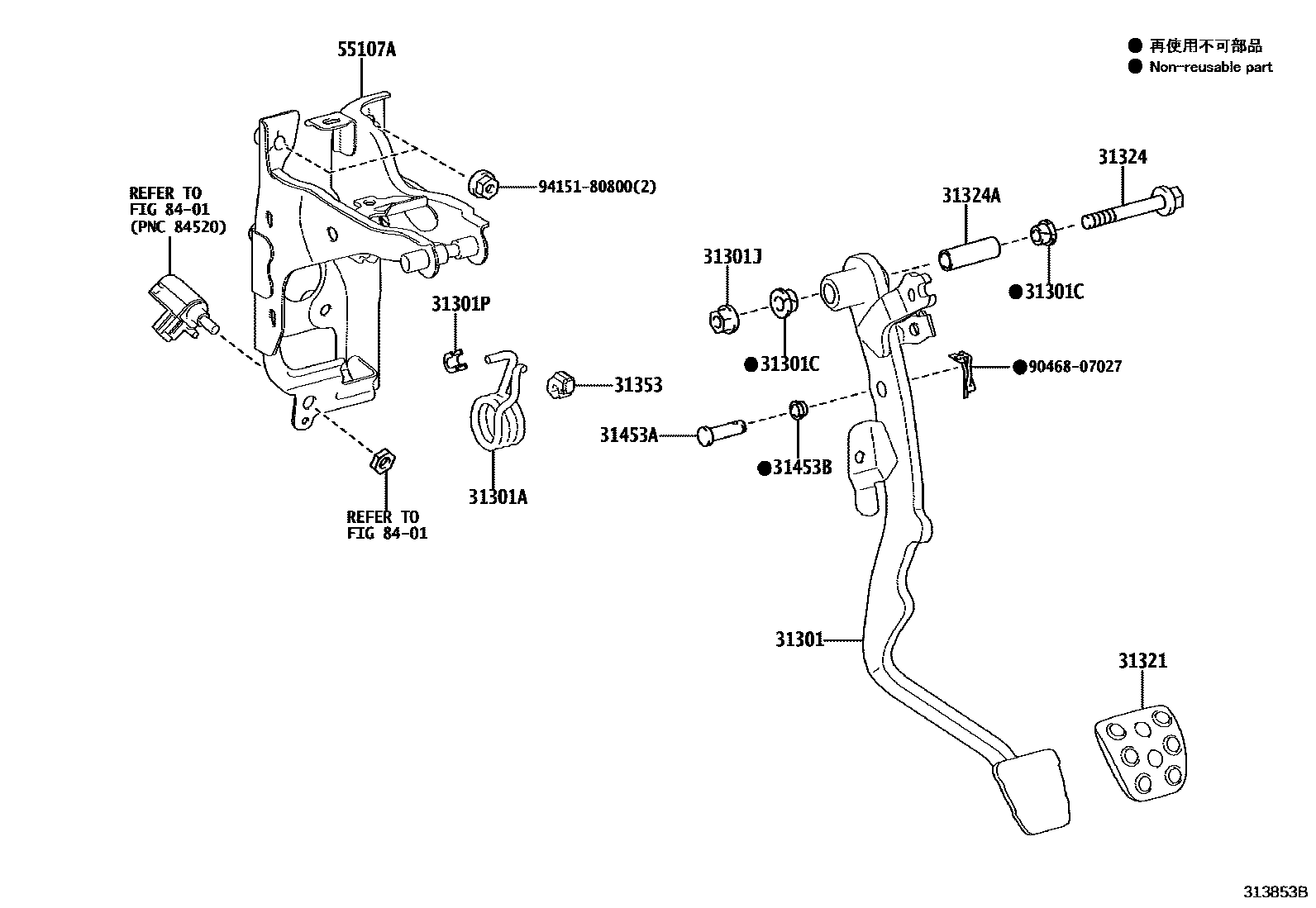

Toyota GR COROLLA — CLUTCH PEDAL & FLEXIBLE HOSE

0001 1��������� 0002 1��������

31301PEDAL SUB-ASSY, CLUTCH

main31301-02600iGZEA14..02S¥1,690202212-202304

main31301-02600iGZEA14..05S¥1,690202212-202409

31301ASPRING(FOR CLUTCH PEDAL)

main31394-02010iGZEA14..02S¥630202212-202304

main31394-02010iGZEA14..05S¥630202212-202409

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iGZEA14..02S¥120202212-202304

main90386-13015iGZEA14..05S¥120202212-202409

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90179-10088iGZEA14..02S¥100202212-202304

main90179-10088iGZEA14..05S¥100202212-202409

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iGZEA14..02S¥100202212-202304

main90389-06055iGZEA14..05S¥100202212-202409

31321PAD, CLUTCH PEDAL

main31321-10050iGZEA14..02S¥2,760202212-202304

main31321-10050iGZEA14..05S¥2,760202212-202409

31324SHAFT, CLUTCH PEDAL

main90105-10524iGZEA14..02S¥160202212-202304

main90105-10524iGZEA14..05S¥160202212-202409

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iGZEA14..02S¥370202212-202304

main90387-10003iGZEA14..05S¥370202212-202409

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iGZEA14..02S¥210202212-202304

main31353-26010iGZEA14..05S¥210202212-202409

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08078iGZEA14..02S¥120202212-202304

main90240-08078iGZEA14..05S¥120202212-202409

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iGZEA14..02S¥110202212-202304

main90386-08033iGZEA14..05S¥110202212-202409

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-02510iGZEA14..02S¥2,110202212-202304

main55107-02510iGZEA14..05S¥2,110202212-202409

8401

9046807027

main90468-07027¥60

9415180800

main94151-80800¥80

15 parts on this diagram · 2 diagrams in section
