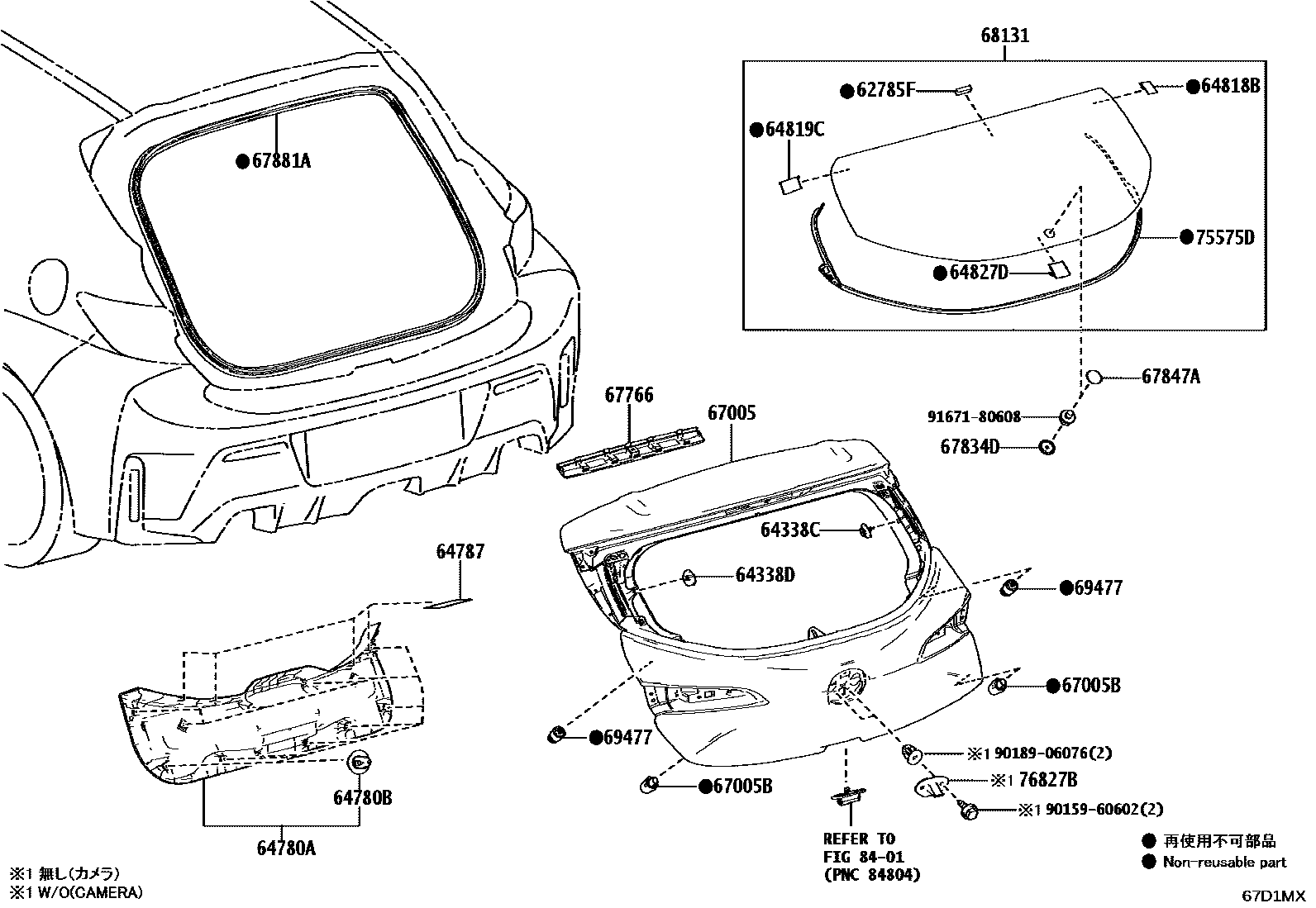

Toyota GR COROLLA — BACK DOOR PANEL & GLASS

62785FSPACER, BACK DOOR GLASS

main62785-60030iGZEA14..02S¥200202212-202409

64338CHOOK, PACKAGE TRAY TRIM GARNISH, RH

main64338-12060-C0iGZEA14..02S202212-202304

BLACK,TRIM3#

main64338-12060-C0iGZEA14..05S202212-202409

BLACK,TRIM2#,3#

64338DHOOK, PACKAGE TRAY TRIM GARNISH, LH

main64338-12070-C0iGZEA14..02S202212-202304

BLACK,TRIM3#

main64338-12070-C0iGZEA14..05S202212-202409

BLACK,TRIM2#,3#

64780APANEL ASSY, BACK DOOR TRIM

main64780-12080-C0iGZEA14..02S202212-202304

BLACK,TRIM3#

main64780-12080-C0iGZEA14..05S202212-202409

BLACK,TRIM2#,3#

64780BCLIP(FOR BACK DOOR TRIM PANEL)

main90467-08232iGZEA14..02S¥80202212-202409

64787PAD, BACK DOOR TRIM

main64787-12020iGZEA14..02S¥30202212-202409

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-12080iGZEA14..02S¥200202212-202409

64819CSPACER, BACK DOOR GLASS, NO.2

main64819-12060iGZEA14..02S¥200202212-202409

64827DCLIP, BACK WINDOW GLASS

main64827-12020iGZEA14..02S¥200202212-202409

67005PANEL SUB-ASSY, BACK DOOR

main67005-12F60iGZEA14..02S¥61,000202212-202409

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09147iGZEA14..02S¥100202212-202409

67766COVER, BACK DOOR SERVICE HOLE, NO.2

main67766-12020-C0iGZEA14..02S202212-202304

BLACK,TRIM3#

main67766-12020-C0iGZEA14..05S202212-202409

BLACK,TRIM2#,3#

67834DGROMMET, BACK DOOR SERVICE HOLE COVER

main85143-12810iGZEA14..02S¥1,880202212-202304

67847ACOVER, BACK DOOR SERVICE HOLE

main85172-12610iGZEA14..02S¥4,970202212-202304

67881AWEATHERSTRIP, BACK DOOR

main67881-12320iGZEA14..02S¥7,500202212-202409

68131GLASS, BACK DOOR

main68105-12530iGZEA14..02S¥53,400202212-202409

69477CUSHION, BACK DOOR UPPER STOPPER

main69477-12020iGZEA14..02S¥410202212-202409

75575DMOULDING, BACK WINDOW, LOWER

main75575-12480iGZEA14..02S¥510202212-202409

76827BRETAINER, BACK DOOR GARNISH, NO.2

8401

9015960602

main90159-60602¥60

9018906076

main90189-06076¥80

9167180608

main91671-80608¥60

23 parts on this diagram · 1 diagram in section
