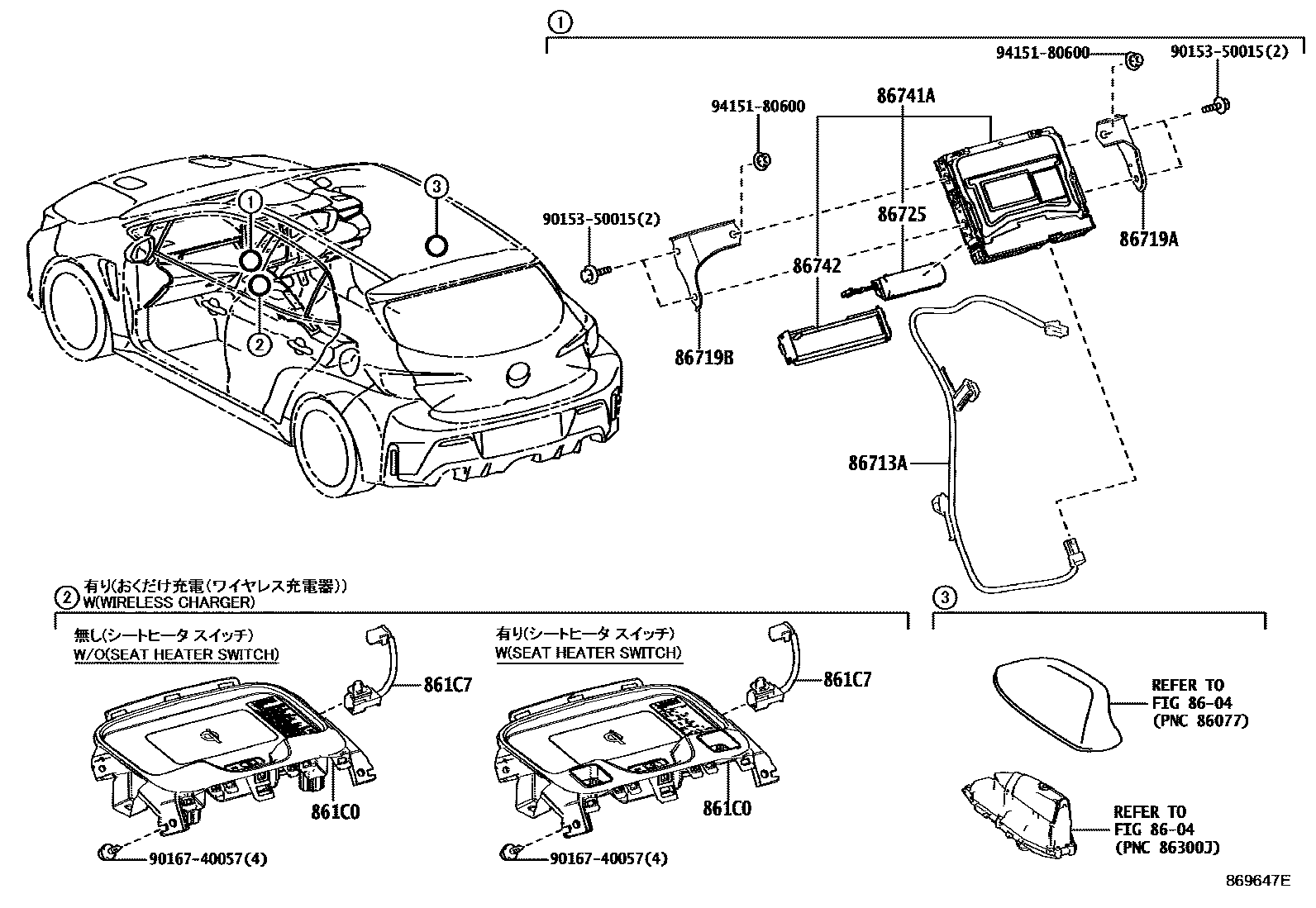

Toyota GR COROLLA — TELEPHONE & MAYDAY

8604

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-12040¥34,800

main861C0-12041¥31,600

main861C0-12050¥34,800

main861C0-12051¥31,600

main861C0-12090

main861C0-12091

861C7CORD, MOBILE WIRELESS CHARGER

main861C7-12010¥740

86713AWIRE, TELEPHONE COMPUTER, (TO TRANSCEIVER)

main86713-12100iGZEA14..ARL¥5,200202210-202409

NEW ZEALAND SPEC

86719ABRACKET, TELEPHONE NO.1

main86719-12010iGZEA14..ARL¥330202210-202409

NEW ZEALAND SPEC

86719BBRACKET, TELEPHONE NO.2

main86719-12020iGZEA14..ARL¥330202210-202409

NEW ZEALAND SPEC

86725BATTERY, MOBILEPHONE

main86725-78010iGZEA14..ARL¥8,300202210-202407

NEW ZEALAND SPEC

main86725-78011iGZEA14..ARL¥7,500202408-202409

NEW ZEALAND SPEC

86741ATRANSCEIVER, TELEMATICS

main86741-78150iGZEA14..ARL¥34,500202210-202409

NEW ZEALAND SPEC

86742COVER, TRANSCEIVER

main86742-0D020iGZEA14..ARL¥510202210-202409

NEW ZEALAND SPEC

9015350015

main90153-50015¥60

9016740057

main90167-40057¥60

9415180600

main94151-80600¥60

12 parts on this diagram · 1 diagram in section
