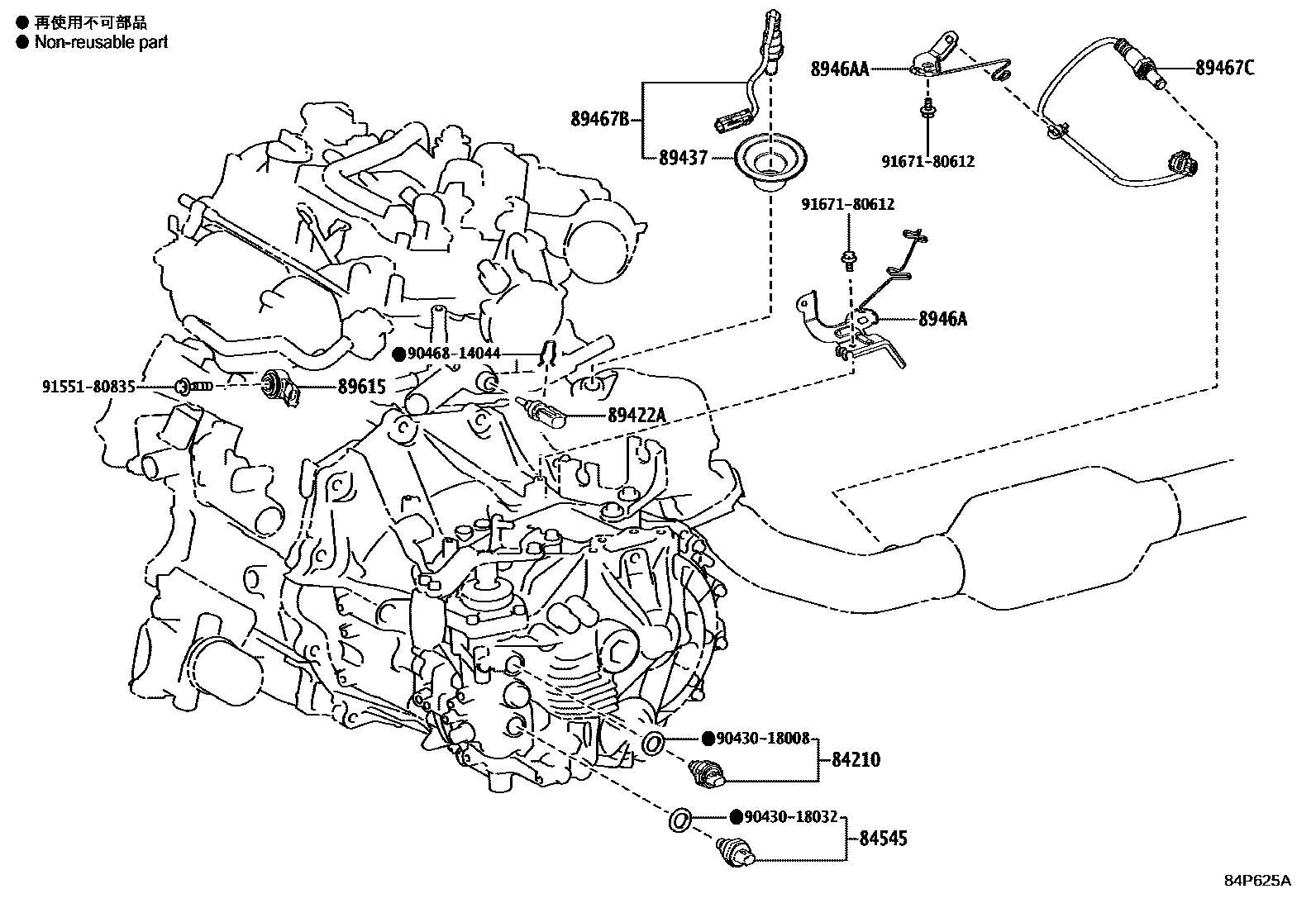

Toyota GR COROLLA — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM RELAY BLOCK 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0006 1COWL 0007 1COWL 0008 1COWL 0009 1INSTRUMENT PANEL 0010 1INSTRUMENT PANEL 0011 1CONSOLE BOX 0012 1STEERING 0013 1STEERING 0014 1DOOR & ROOF 0015 1FLOOR & BACK DOOR

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iGZEA14..6F¥1,360202409

main84210-52050iGZEA14¥1,360202210-202409

84545SWITCH, NEUTRAL POSITION

main84545-52010iGZEA14..6F¥3,070202409

main84545-52010iGZEA14¥3,070202210-202409

89422ASENSOR, WATER TEMPERATURE

main89422-33040iGZEA14..02S¥2,410202210-202304

main89422-33040iGZEA14..05S¥2,410202210-202409

main89422-33040iGZEA14¥2,410202409

89437COVER, SENSOR

main89437-52020iGZEA14..05S¥570202210-202409

main89437-52020iGZEA14¥570202409

main89437-52020iGZEA14..02S¥570202210-202304

89467BSENSOR, AIR FUEL RATIO

main89467-52300iGZEA14..6F¥11,800202409

main89467-52300iGZEA14..02S¥11,800202210-202304

main89467-52300iGZEA14..05S¥11,800202210-202409

main89467-52350iGZEA14..8FC¥9,900202409

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-12360iGZEA14¥9,900202409

main89467-12360iGZEA14..02S¥9,900202210-202304

main89467-12360iGZEA14..05S¥9,900202210-202409

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-52050iGZEA14..05S¥640202210-202409

main8946A-52050iGZEA14..02S¥640202210-202304

main8946A-52050iGZEA14..6F¥640202409

main8946A-52110iGZEA14..8FC¥650202409

8946AABRACKET, EXHAUST SENSOR CLAMP, NO.2

main8946A-12020iGZEA14..05S¥390202210-202409

main8946A-12020iGZEA14¥390202409

main8946A-12020iGZEA14..02S¥390202210-202304

89615SENSOR, KNOCK CONTROL

main89615-20090iGZEA14¥2,370202409

main89615-20090iGZEA14..02S¥2,370202210-202304

main89615-20090iGZEA14..05S¥2,370202210-202409

9043018008

main90430-18008¥110

9043018032

main90430-18032¥90

9046814044

main90468-14044¥60

9155180835

main91551-80835¥80

9167180612

main91671-80612¥60

14 parts on this diagram · 15 diagrams in section
