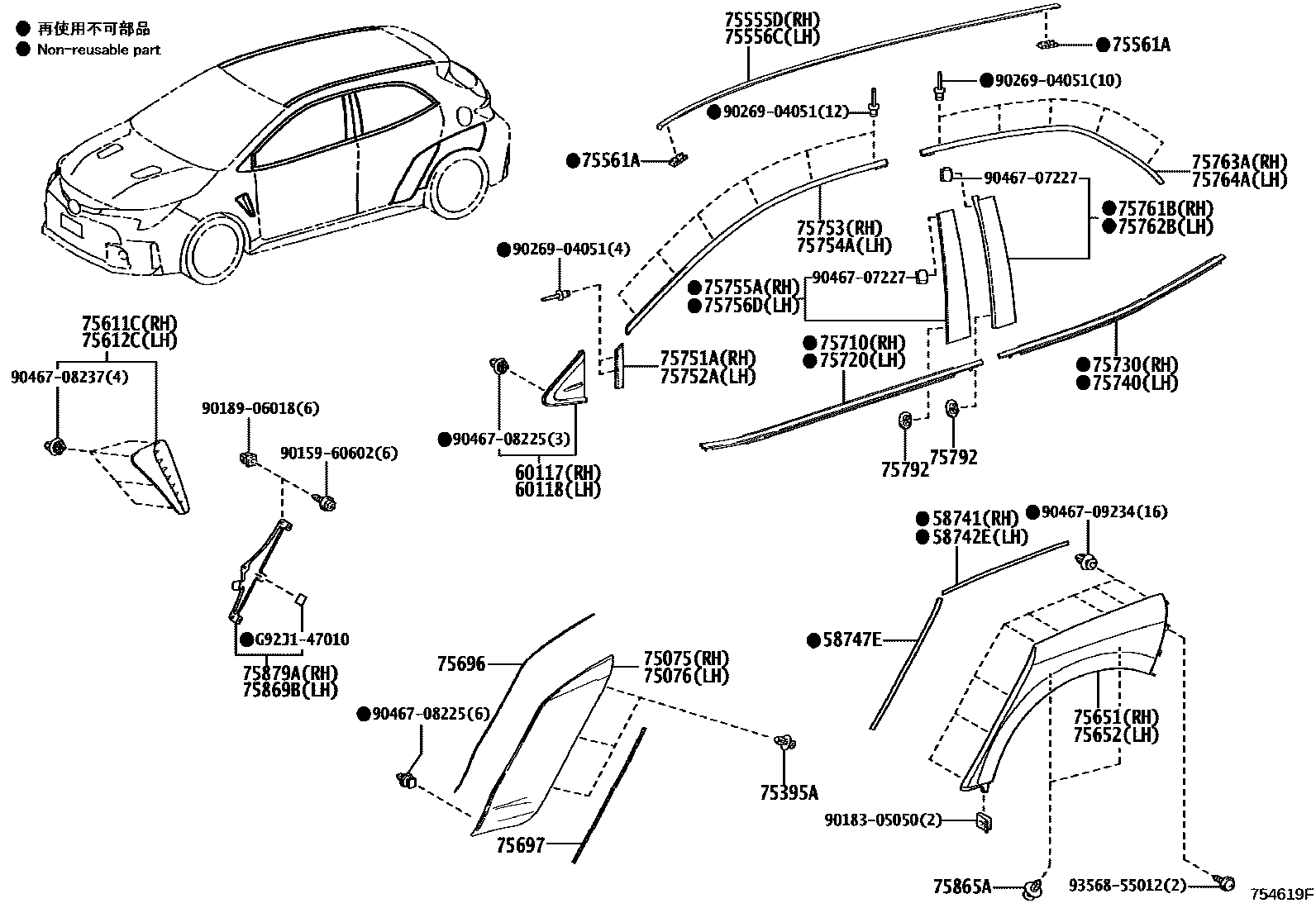

Toyota GR COROLLA — SIDE MOULDING
58741PROTECTOR, QUARTER PANEL, RH
58742EPROTECTOR, QUARTER PANEL, LH
58747EPROTECTOR, QUARTER PANEL, REAR
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
75395ACLIP, OUTSIDE MOULDING, NO.1
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
CFRP ROOF-WITH
DB-SIDE TAPE,T=2.0
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
CFRP ROOF-WITH
DB-SIDE TAPE,T=2.0
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
CFRP ROOF-WITH
75611CMOULDING, FRONT FENDER, OUTSIDE RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
75612CMOULDING, FRONT FENDER, OUTSIDE LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
75651MOULDING, QUARTER, OUTSIDE RH
PAINT REQ.
PAINT REQ.
PAINT REQ.
75652MOULDING, QUARTER, OUTSIDE LH
PAINT REQ.
PAINT REQ.
PAINT REQ.
75696PAD, BODY OUTSIDE MOULDING, NO.1
75697PAD, BODY OUTSIDE MOULDING, NO.2
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75751AMOULDING, FRONT DOOR WINDOW FRAME, RH(FRONT PILLAR SIDE)
75752AMOULDING, FRONT DOOR WINDOW FRAME, LH(FRONT PILLAR SIDE)
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
NO PAINT REQ.
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
NO PAINT REQ.
75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75792CLIP, DOOR WINDOW FRAME MOULDING
75865ACLIP, REAR QUARTER PANEL MOULDING
75869BRETAINER, QUARTER OPENING, LH
75879ARETAINER, QUARTER OPENING, RH
9015960602
9018305050
9018906018
9026904051
9046707227
9046708225
9046708237
9046709234
9356855012
G92J147010SHEET, HV BATTERY TRAY, NO.1
45 parts on this diagram · 2 diagrams in section
