Toyota GR COROLLA — SEAT BELT & CHILD RESTRAINT SEAT

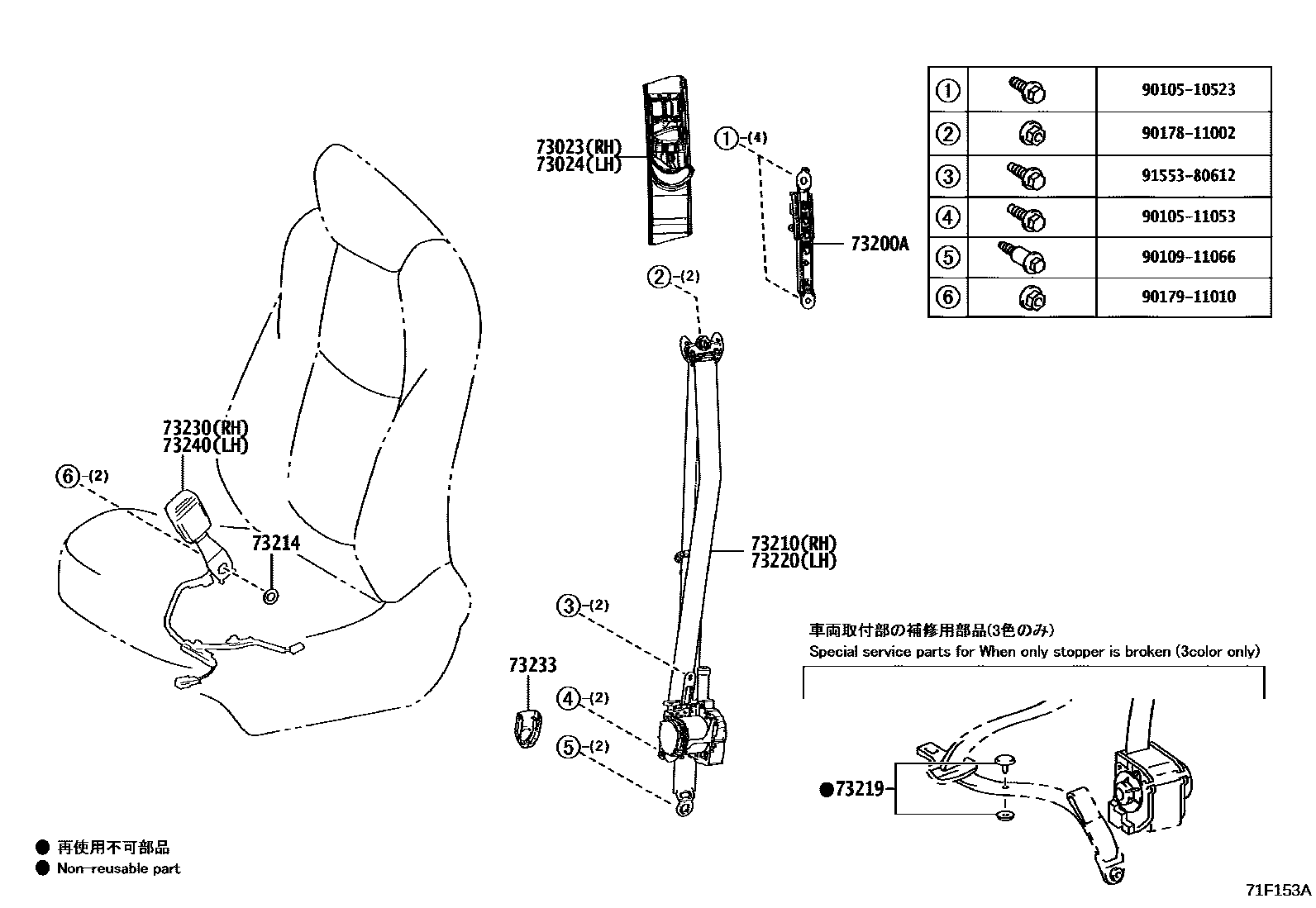

Parts diagram
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-12030-C0i202303-202304
BLACK,TRIM3#
main73023-12030-C0i202409
BLACK,TRIM2#,3#
main73023-12030-C0i202210-202409
BLACK,TRIM2#,3#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-12020-C0i202409
BLACK,TRIM2#,3#
main73024-12020-C0i202303-202304
BLACK,TRIM3#
main73024-12020-C0i202210-202409
BLACK,TRIM2#,3#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-12070i¥3,200202409
main73200-12070i¥3,200202210-202304
main73200-12070i¥3,200202210-202409
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-47282-C7i202409
BLACK/BLACK,TRIM2#,3#
main73210-47282-C7i202210-202409
BLACK/BLACK,TRIM2#,3#
main73210-47282-D0i202303-202304
RED,TRIM3#
73214PLATE, FRONT SEAT BELT ANCHOR
main73214-75010i¥170202210-202304
main73214-75010i¥170202409
main73214-75010i¥170202210-202409
73219STOPPER, TONGUE PLATE
main73219-33010i¥100202210-202304
BLACK
main73219-33010i¥100202409
BLACK
main73219-33010i¥100202210-202409
BLACK
main73219-33020i¥100202409
GRAY
main73219-33020i¥100202210-202304
GRAY
main73219-33020i¥100202210-202409
GRAY
main73219-33030i¥100202210-202304
BEIGE
main73219-33030i¥100202210-202409
BEIGE
main73219-33030i¥100202409
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-47222-C7i202409
BLACK/BLACK,TRIM2#,3#
main73220-47222-C7i202210-202409
BLACK/BLACK,TRIM2#,3#
main73220-47222-D0i202303-202304
RED,TRIM3#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-16450-C0i202409
BLACK,TRIM2#,3#
main73230-16450-C0i202210-202409
BLACK,TRIM2#,3#
main73230-16460-C0i202303-202304
BLACK,TRIM3#
main73230-16460-C0i202409
BLACK,TRIM2#,3#
main73230-16460-C0i202210-202409
BLACK,TRIM2#,3#
73233COVER, LAP BELT OUTER ANCHOR
main73233-60020-C1i202409
BLACK,TRIM2#,3#
sub73233-60020¥500
sub73233-35010¥620
main73233-60020-C1i202303-202304
BLACK,TRIM3#
sub73233-60020¥500
sub73233-35010¥620
main73233-60020-C1i202210-202409
BLACK,TRIM2#,3#
sub73233-60020¥500
sub73233-35010¥620
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-16450-C0i202303-202304
BLACK,TRIM3#
main73230-16450-C0i202409
BLACK,TRIM2#,3#
main73230-16450-C0i202210-202409
BLACK,TRIM2#,3#
main73230-16460-C0i202210-202409
BLACK,TRIM2#,3#
main73230-16460-C0i202409
BLACK,TRIM2#,3#
9010510523
main90105-10523¥100
9010511053
main90105-11053¥100
9010911066
main90109-11066¥190
9017811002
main90178-11002¥100
9017911010
main90179-11010¥110
9155380612
main91553-80612¥60

16 parts on this diagram · 2 diagrams in section
