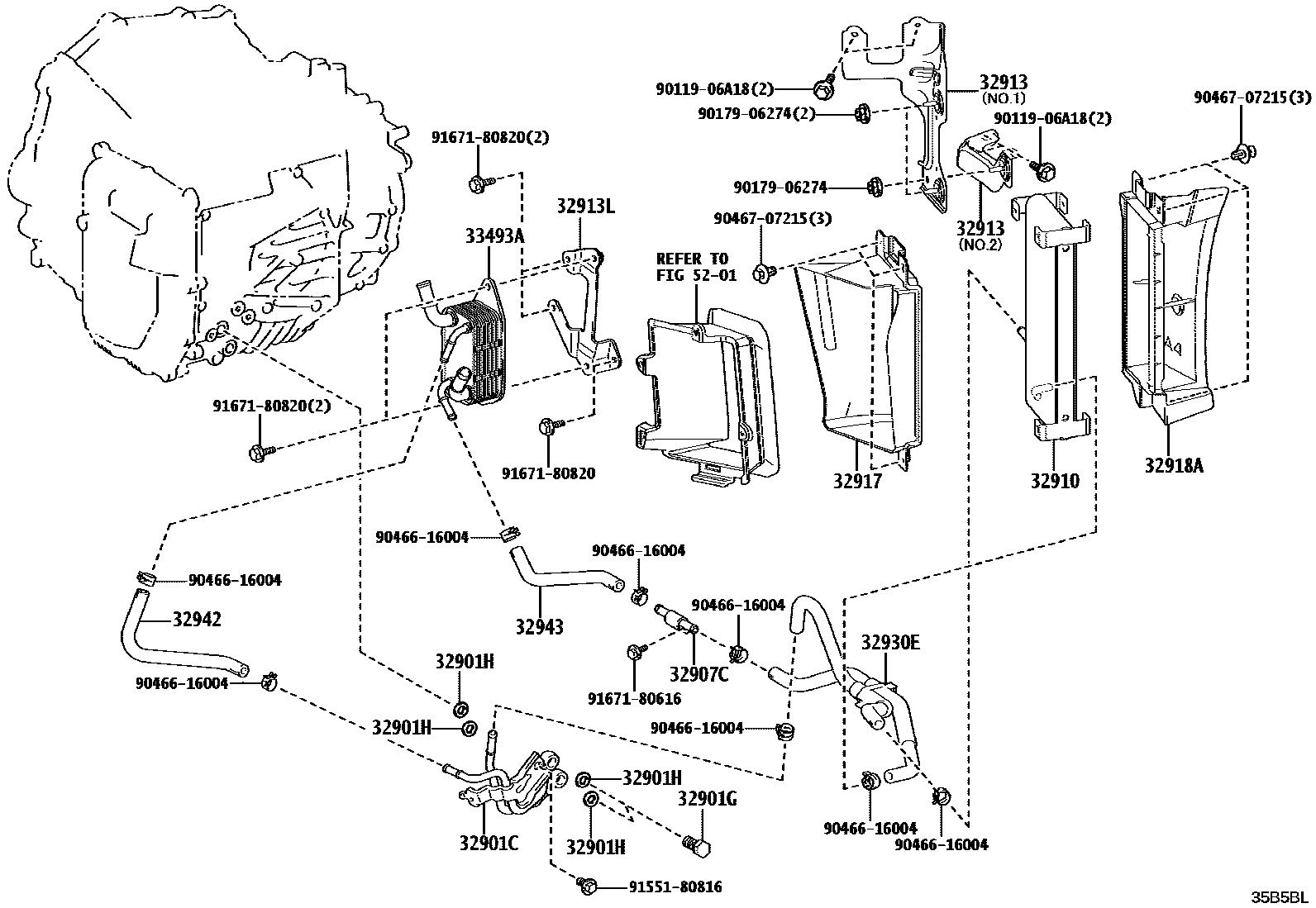

Toyota GR COROLLA — OIL COOLER & TUBE (ATM)

32901CUNION SUB-ASSY, OIL COOLER

main32901-52020iGZEA14..8FC¥3,490202409

32901GBOLT, UNION(FOR OIL COOLER)

main90401-14003iGZEA14..8FC¥370202409

32901HGASKET(FOR OIL COOLER UNION)

main90430-14016iGZEA14..8FC¥80202409

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-60350iGZEA14..8FC¥520202409

32910COOLER ASSY, OIL

main32910-12010iGZEA14..8FC¥42,400202409

32913BRACKET, OIL COOLER

main32913-12010iGZEA14..8FC¥1,920202409

NO.1:REFER ILLUST.

main32913-12020iGZEA14..8FC¥1,220202409

NO.2:REFER ILLUST.

32913LBRACKET, TRANSMISSION OIL COOLER, NO.2

main32913-52020iGZEA14..8FC¥1,400202409

32917DUCT, TRANSMISSION OIL COOLER AIR

main32917-12010iGZEA14..8FC202409

32918ADUCT, TRANSMISSION OIL COOLER AIR OUTLET

main32918-12010iGZEA14..8FC202409

32930EHOSE ASSY, TRANSMISSION OIL COOLER, NO.1

main32930-12030iGZEA14..8FC¥3,010202409

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-52040iGZEA14..8FC¥1,170202409

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-52020iGZEA14..8FC¥1,140202409

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-52080iGZEA14..8FC¥15,000202409

5201

9011906A18

main90119-06A18¥80

9017906274

main90179-06274¥70

9046616004

main90466-16004¥180

9046707215

main90467-07215¥80

9155180816

main91551-80816¥80

9167180616

main91671-80616¥60

9167180820

main91671-80820¥80

21 parts on this diagram · 1 diagram in section
