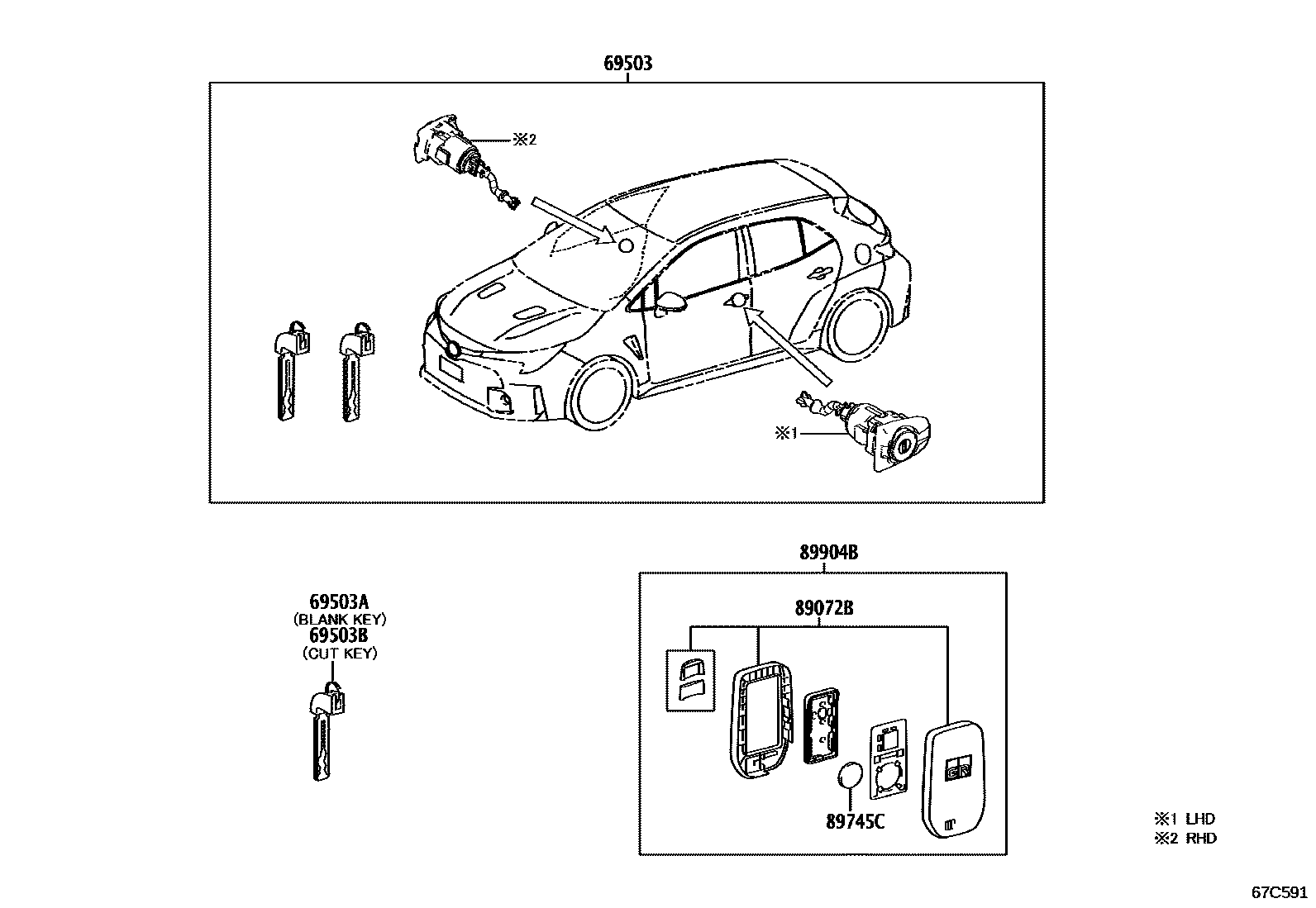

Toyota GR COROLLA — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-12J41iGZEA14..02S202210-202409

main69005-12K51iGZEA14..LHD202210-202409

69503AKEY, BLANK

main69515-K0020iGZEA14..02S¥6,500202210-202409

BLANK KEY,W(*68)

69503BKEY, CUT

main69515-K0010iGZEA14¥7,100202210-202409

MASTER KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-12770iGZEA14..BZ202303-202409

main89072-12B40iGZEA14..6F..GEN202210-202409

GUATEMALA SPEC

main89072-12B40iGZEA14..TH202210-202409

COSTA RICA SPEC

main89072-52B30iGZEA14..ARL¥6,500202210-202409

main89072-52B40iGZEA14..GEN,MA202210-202301

main89072-52B41iGZEA14..GEN,MA202302-202409

89745CBATTERY, TRANSMITTER

main89745-K0010iGZEA14..05S..(ARL,BZ)¥440202210-202409

CR2450

main89745-K0020iGZEA14..GEN,MA,TH¥440202210-202409

CR2450

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-12480iGZEA14..BZ202303-202308

main8990H-12481iGZEA14..BZ202308-202409

main8990H-12491iGZEA14..GEN202401-202409

COSTA RICA SPEC

main8990H-12491iGZEA14..TH202401-202409

GUATEMALA SPEC

main8990H-52090iGZEA14..05S..ARL202210-202308

main8990H-52091iGZEA14..ARL202308-202409

main8990H-52110iGZEA14..GEN,MA,TH202210-202401

main8990H-52112iGZEA14..GEN,MA202401-202409

6 parts on this diagram · 1 diagram in section
