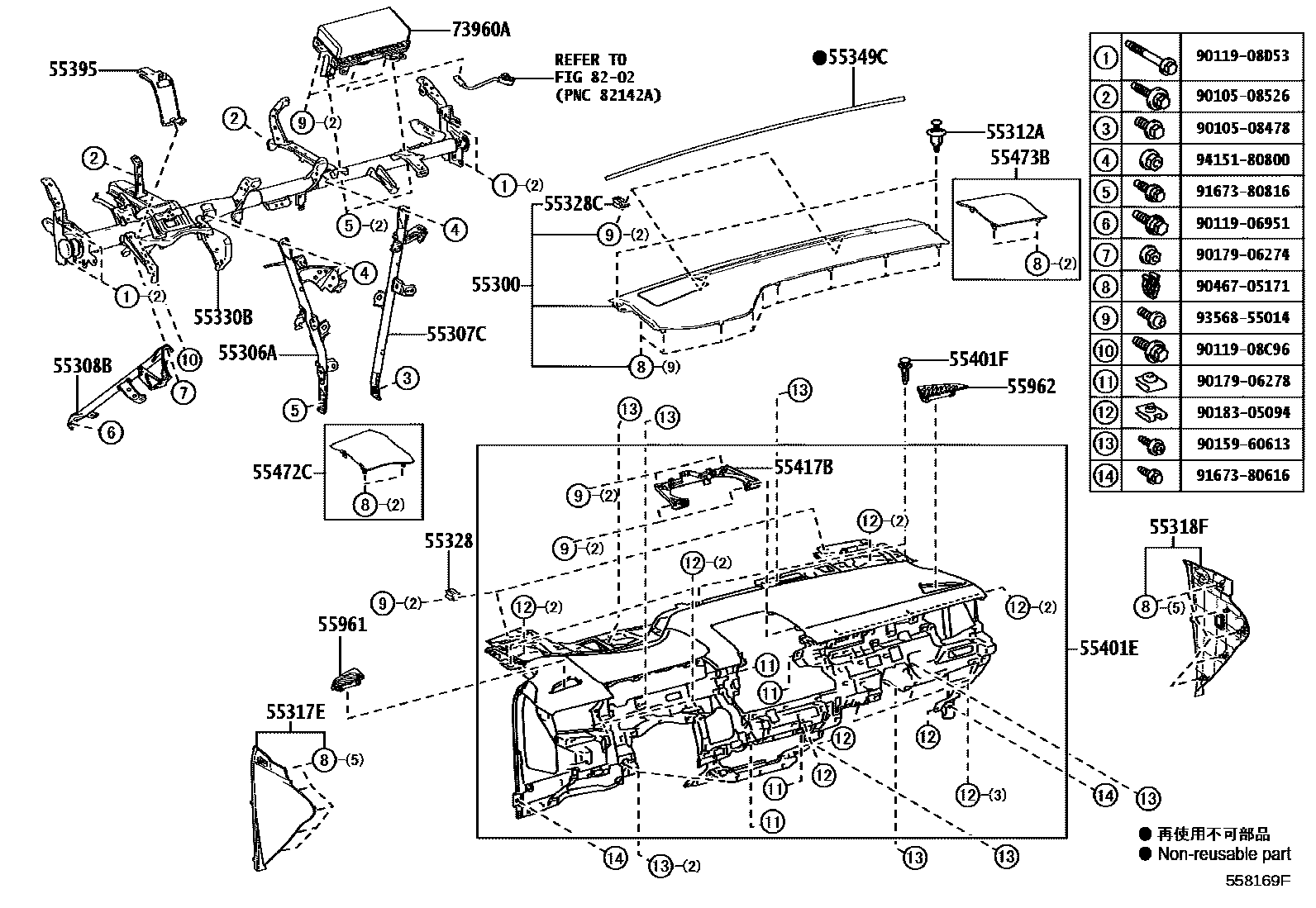

Toyota GR COROLLA — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55300PANEL ASSY, INSTRUMENT, UPPER

main55300-12040-C0iGZEA14..LHD202210-202409

BLACK,TRIM2#,3#

main55300-12060-C0iGZEA14..MA202210-202409

BLACK,TRIM2#,3#

main55300-12070-C0iGZEA14..MA,TH202210-202409

BLACK,TRIM2#,3#

main55300-12070-C0iGZEA14..MA,TH202210-202409

HEAD UP DISPLAY-WITH,BLACK,TRIM2#,3#

main55300-12070-C0iGZEA14..02S202303-202304

BLACK,TRIM3#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12510iGZEA14..LHD202210-202409

main55306-12530iGZEA14..02S¥2,080202210-202409

main55306-12550iGZEA14..RHD..8FC¥1,780202409

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12410iGZEA14..LHD202210-202409

main55307-12460iGZEA14..RHD¥1,670202210-202409

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-12320iGZEA14..LHD202210-202409

main55308-12340iGZEA14..RHD¥1,510202210-202409

55312ACLIP, INSTRUMENT PANEL

main90467-07217iGZEA14¥80202210-202409

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-12230-C0iGZEA14202210-202409

BLACK,TRIM2#,3#

main55317-12230-C0iGZEA14..02S202303-202304

BLACK,TRIM3#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-12170-C0iGZEA14..02S202303-202304

BLACK,TRIM3#

main55318-12170-C0iGZEA14202210-202409

BLACK,TRIM2#,3#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430iGZEA14¥340202210-202409

55328CPIN, INSTRUMENT PANEL, NO.2

main55328-12440iGZEA14¥370202210-202409

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-12641iGZEA14..ARL,TH¥16,100202210-202409

HEAD UP DISPLAY-WITH

main55330-12641iGZEA14..02S¥16,100202210-202304

main55330-12841iGZEA14..LHD202210-202409

main55330-12851iGZEA14..8FC..GEN202409

main55330-12861iGZEA14..MA¥15,300202210-202409

55349CCUSHION, INSTRUMENT PANEL

main55349-12190iGZEA14¥730202210-202409

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-12020iGZEA14..LHD202210-202409

main55395-12040iGZEA14..RHD¥1,030202210-202409

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55400-12902-C4iGZEA14..LHD202210-202409

BLACK,TRIM2#

sub55400-12902

main55400-12903-22iGZEA14..LHD202409

SOFT BLACK / BLACK,TRIM2#,3#

sub55400-12903

main55400-12904-C4iGZEA14..02S202303-202304

BLACK,TRIM3#

sub55400-12904¥42,600

main55400-12905-22iGZEA14..ARL202210-202409

SOFT BLACK / BLACK,TRIM2#,3#

sub55400-12909¥51,000

sub55400-12905¥67,500

main55400-12907-22iGZEA14..MA,TH202409

SOFT BLACK / BLACK,TRIM2#,3#

sub55400-12907¥56,200

main55400-12910-C0iGZEA14..MA,TH202210-202409

BLACK,TRIM2#

55401FCLIP(FOR SAFETY PAD)

main52161-16010iGZEA14..05S¥120202210-202409

sub52161-0K040¥120

55417BRETAINER, RADIO TUNER FINISH

main55417-12060iGZEA14..BZ,GEN,MA,TH¥1,170202210-202409

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-12100-C0iGZEA14..LHD202210-202409

BLACK,TRIM2#,3#

main55472-12140-C0iGZEA14..02S202303-202304

BLACK,TRIM3#

main55472-12140-C0iGZEA14..RHD..05S202210-202409

BLACK,TRIM2#,3#

main55472-12150-C0iGZEA14..ARL202409

BLACK,TRIM2#,3#

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-12080-C0iGZEA14..LHD202210-202409

BLACK,TRIM2#,3#

main55473-12120-C0iGZEA14..MA,TH202210-202409

BLACK,TRIM2#,3#

main55473-12120-C0iGZEA14..02S202303-202304

BLACK,TRIM3#

main55473-12130-C0iGZEA14..ARL202409

BLACK,TRIM2#,3#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12250-C0iGZEA14..LHD202210-202409

BLACK,TRIM2#,3#

main55961-12260-C0iGZEA14..RHD202210-202409

BLACK,TRIM2#,3#

main55961-12260-C0iGZEA14..MA,TH202210-202409

BLACK,TRIM2#

main55961-12260-C0iGZEA14..02S202303-202304

BLACK,TRIM3#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-12220-C0iGZEA14..LHD202210-202409

BLACK,TRIM2#,3#

main55962-12230-C0iGZEA14..MA,TH202210-202409

BLACK,TRIM2#,3#

main55962-12230-C0iGZEA14..02S202303-202304

BLACK,TRIM3#

main55962-12230-C0iGZEA14..MA,TH202210-202409

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-12320iGZEA14¥75,600202210-202409

8202

9010508478

main90105-08478¥80

9010508526

main90105-08526¥100

9011906951

main90119-06951¥80

9011908C96

main90119-08C96¥80

9011908D53

main90119-08D53¥120

9015960613

main90159-60613¥60

9017906274

main90179-06274¥70

9017906278

main90179-06278¥100

9018305094

main90183-05094¥90

9046705171

main90467-05171¥60

9167380616

main91673-80616¥60

9167380816

main91673-80816¥80

9356855014

main93568-55014¥70

9415180800

main94151-80800¥80

35 parts on this diagram · 8 diagrams in section
