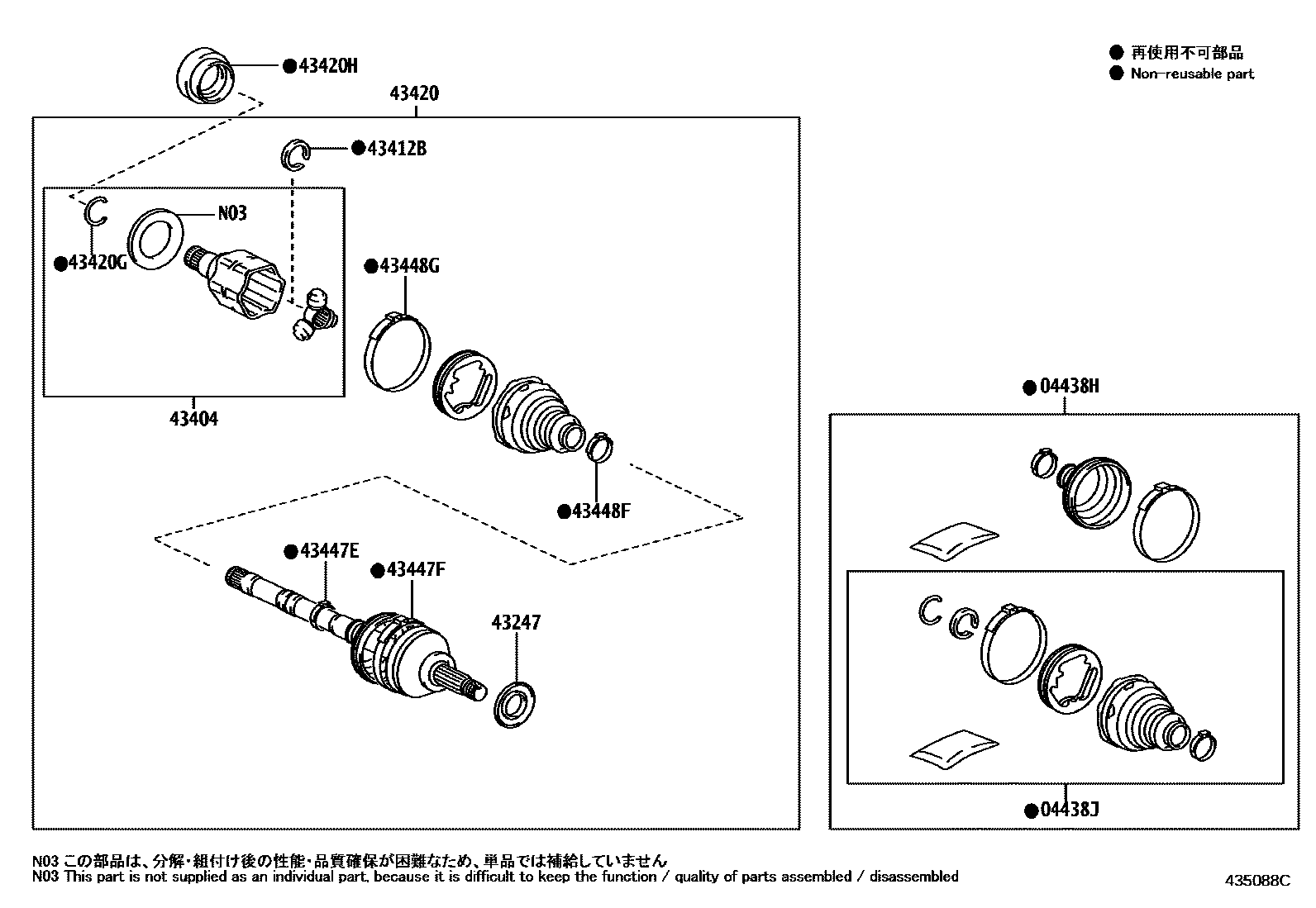

Toyota GR COROLLA — FRONT DRIVE SHAFT

0001 1LH 0002 1RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04427-12810iGZEA14..6F¥7,700202210-202409

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04438-33150iGZEA14..05S¥4,150202210-202409

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-76010iGZEA14..05S¥480202210-202409

43404JOINT SET, FRONT AXLE INBOARD, LH

main43404-12020iGZEA14..6F¥14,900202210-202409

main43404-33010iGZEA14..8FC202409

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-58030iGZEA14¥60202210-202409

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-12B70iGZEA14..6F¥44,900202210-202409

main43420-12C00iGZEA14..8FC¥56,200202409

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main43425-78050iGZEA14¥100202210-202409

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50058iGZEA14¥610202210-202409

main90311-50059iGZEA14..8FC¥610202409

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-24020iGZEA14¥400202210-202409

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-58140iGZEA14¥510202210-202409

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-48140iGZEA14..02S¥260202210-202409

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-48130iGZEA14¥450202210-202409

12 parts on this diagram · 2 diagrams in section
