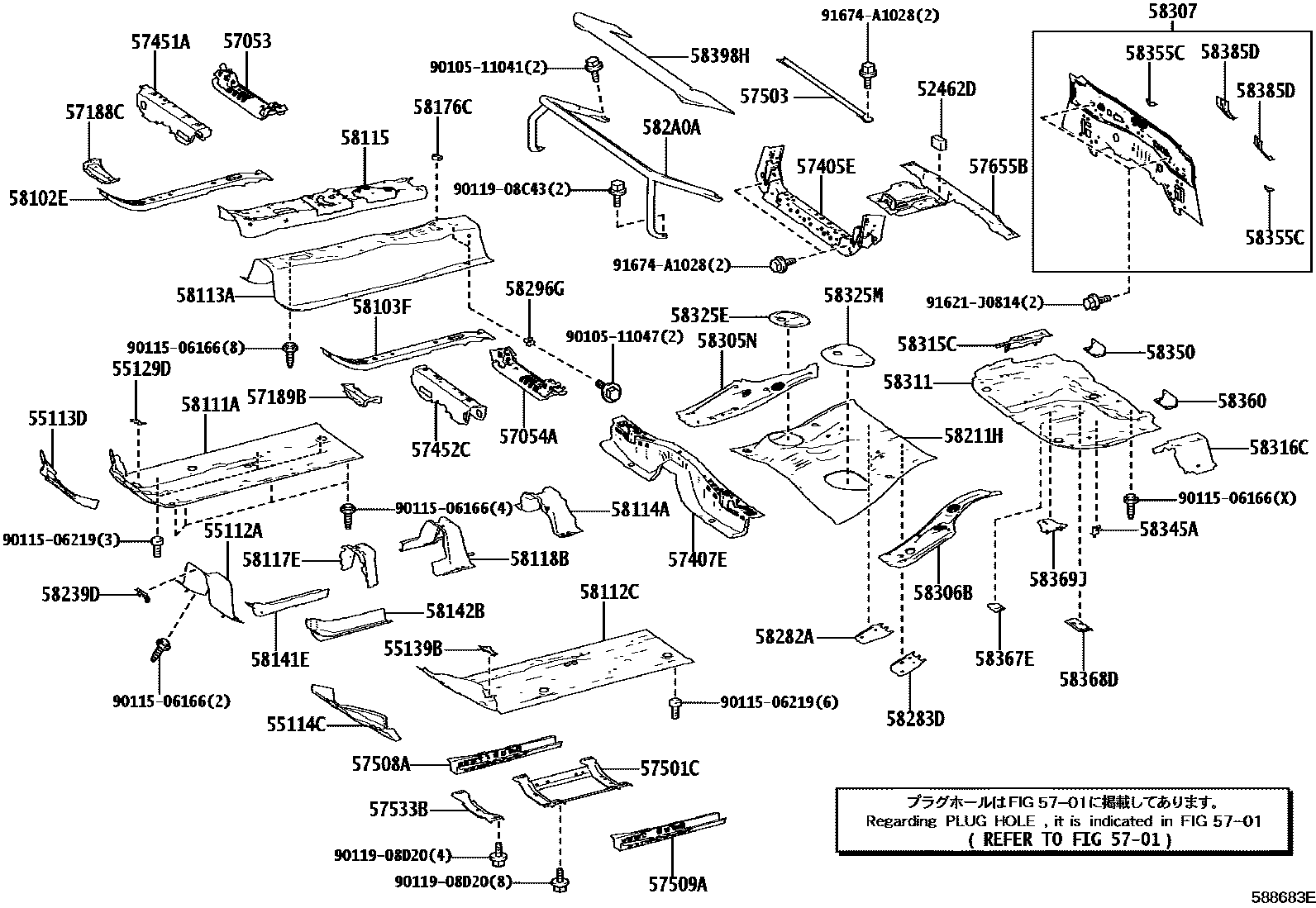

Toyota GR COROLLA — FLOOR PAN & LOWER BACK PANEL
52462DSTOPPER, BATTERY
55112APANEL, DASH, NO.2
55113DPANEL, DASH, LOWER RH
55114CPANEL, DASH, LOWER LH
55129DCOVER, DASH PANEL HOLE, RH
55139BCOVER, DASH PANEL HOLE, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH
57405EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS
57451AMEMBER, FRONT FLOOR CROSS, RH
57452CMEMBER, FRONT FLOOR CROSS, LH
57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER
57503BRACE SUB-ASSY, CENTER FLOOR CROSSMEMBER
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57533BBRACE, FRONT FLOOR, CENTER
57655BMEMBER, REAR FLOOR CROSS, NO.4
58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58114AREINFORCEMENT, FRONT FLOOR PANEL
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58117EPANEL, FRONT FLOOR SUB COVER
58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2
58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH
58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH
58176CREINFORCEMENT, PARKING BRAKE BASE, NO.2
58211HPAN, CENTER FLOOR
58239DBRACKET, CABLE CLAMP
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58296GBRACKET, FRONT FLOOR BRACE MOUNTING
582A0ABRACE ASSY, CENTER FLOOR
58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH
58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58315CEXTENSION, REAR FLOOR SIDE PANEL, RH
58316CEXTENSION, REAR FLOOR SIDE PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58325MCOVER, REAR FLOOR SERVICE HOLE, NO.1
58345ABRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH
58355CBRACKET, REAR BUMPER ARM
58360REINFORCEMENT ASSY, REAR FLOOR PANEL, LH
58367EBRACKET, FUEL TUBE, NO.1
58368DBRACKET, CHARGE TUBE, NO.2
58369JBRACKET, REAR FLOOR BRACE
58385DBRACKET, REAR BUMPER COVER
58398HCOVER, FLOOR UNDER, NO.1
9010511041
9010511047
9011506166
9011506219
9011908C43
9011908D20
91621J0814
91674A1028
63 parts on this diagram · 1 diagram in section
