Toyota GR COROLLA — ENGINE OIL COOLER

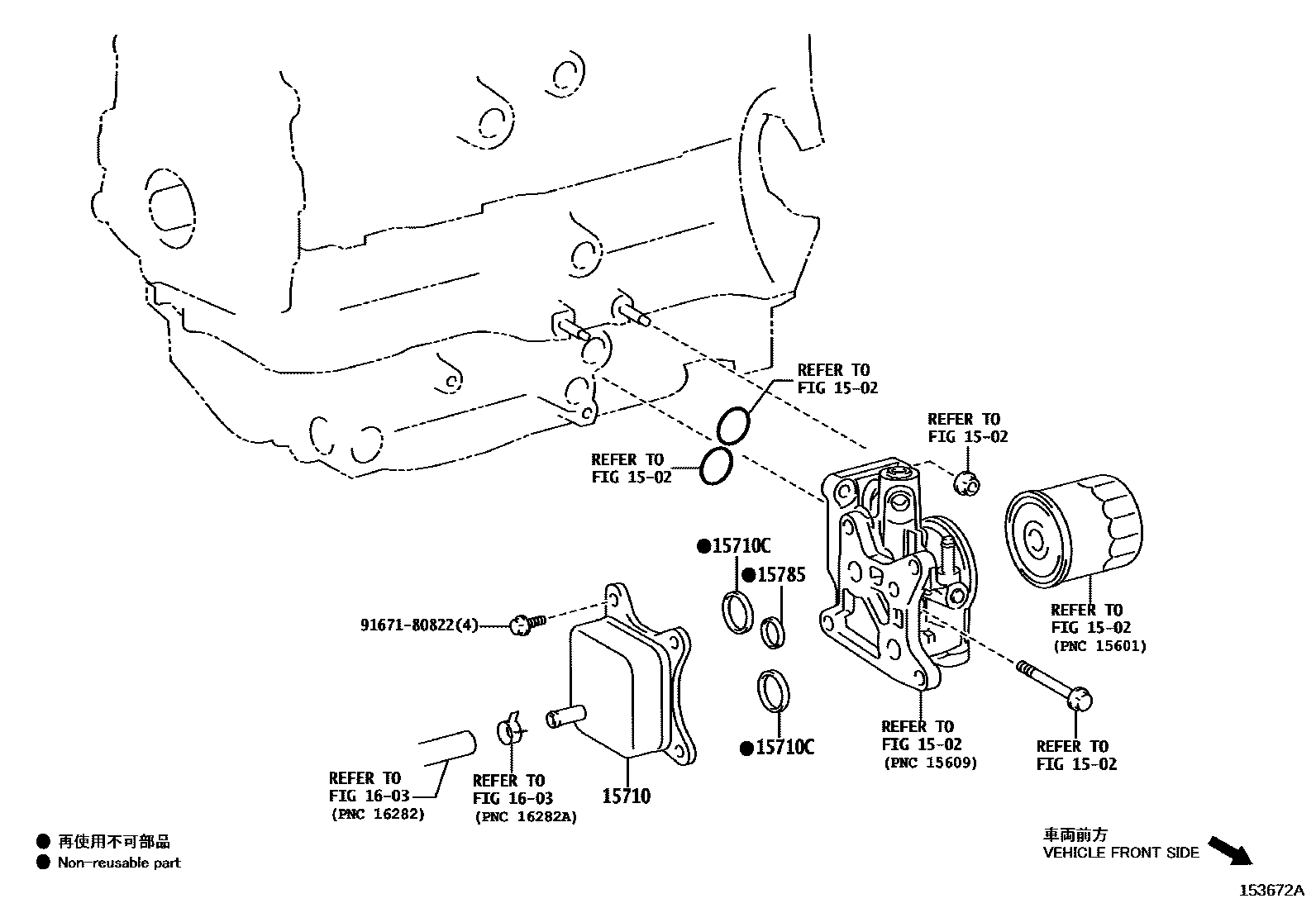

Parts diagram

1502

15710COOLER ASSY, OIL

main15710-18020i¥37,000202409

main15710-18020i¥37,000202210-202304

main15710-18020i¥37,000202210-202409

15710CGASKET(FOR OIL COOLER)

main15785-25010i¥340202409

main15785-25010i¥340202210-202304

main15785-25010i¥340202210-202409

15785GASKET, OIL COOLER

main15785-18010i¥340202409

main15785-18010i¥340202210-202304

main15785-18010i¥340202210-202409

1603

9167180822

main91671-80822¥80

6 parts on this diagram · 1 diagram in section
