Toyota GR COROLLA — DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL & WHEEL HUB ORNAME0002 1BALANCE WEIGHT

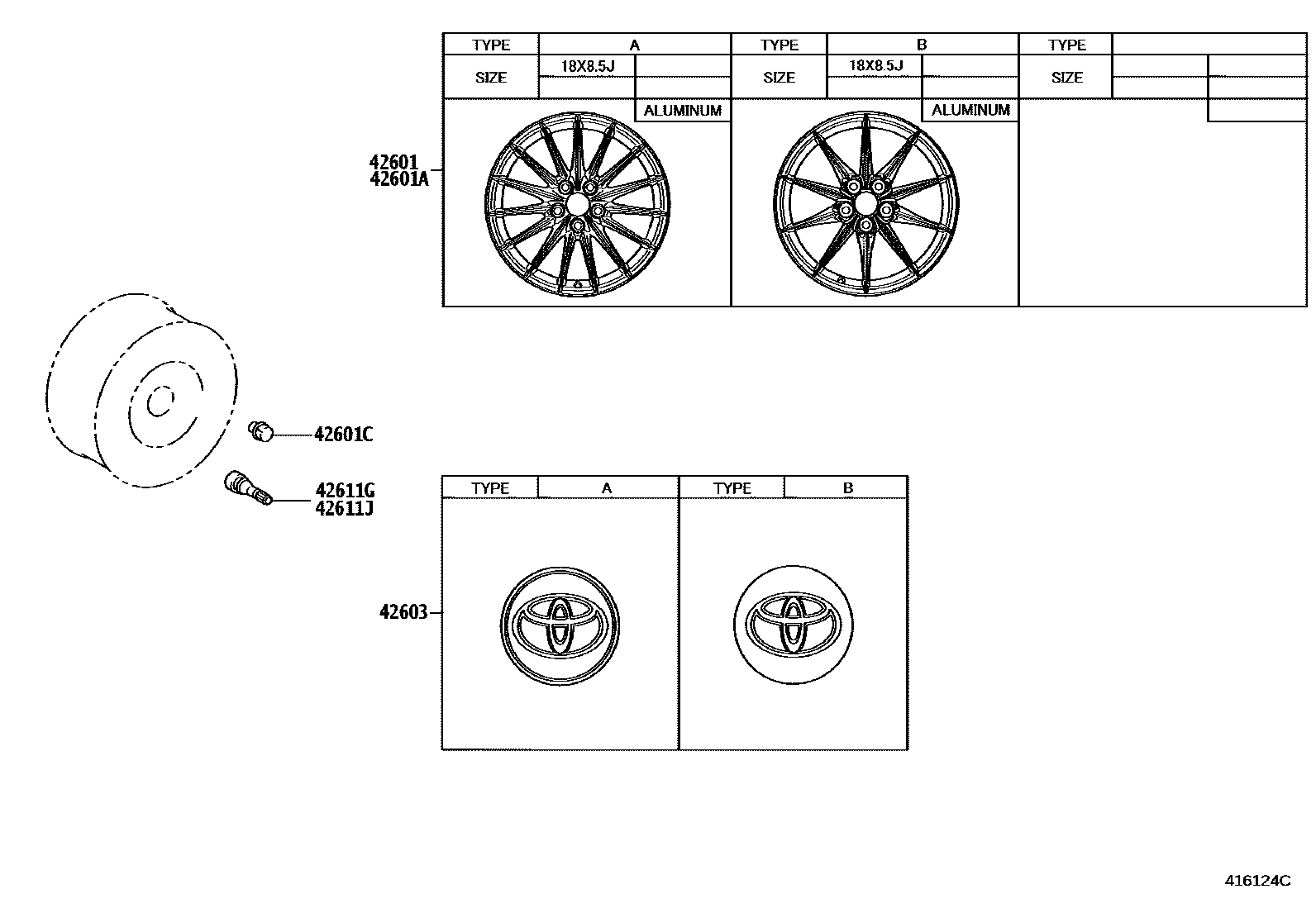

42601WHEEL, DISC

main42611-12F30iGZEA14..05S..(ARL,GEN,MA,TH)¥49,700202210-202409

18X8.5J,#,TYPE A:REFER ILLUST.

main42611-12F40iGZEA14..BZ¥138,000202303-202409

18X8.5J,#,TYPE B:REFER ILLUST.

main42611-12G80iGZEA14..02S¥145,000202303-202304

18X8.5J,#,TYPE B:REFER ILLUST.

main42611-12J20iGZEA14..BZ¥149,000202409

18X8.5J,#,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-12F40iGZEA14..BZ¥138,000202303-202409

18X8.5J,#,TYPE B:REFER ILLUST.

main42611-12J20iGZEA14..BZ¥149,000202409

18X8.5J,#,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033iGZEA14..05S..(ARL,GEN,MA,TH)¥430202210-202409

main90942-01115iGZEA14..BZ¥340202303-202409

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-42130iGZEA14..ARL,GEN,MA,TH¥1,000202210-202409

*ALU,TYPE A:REFER ILLUST.

main42603-48150iGZEA14..BZ¥2,150202303-202409

*ALU,TYPE B:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iGZEA14¥390202210-202409

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iGZEA14..BZ¥390202303-202409

6 parts on this diagram · 2 diagrams in section
