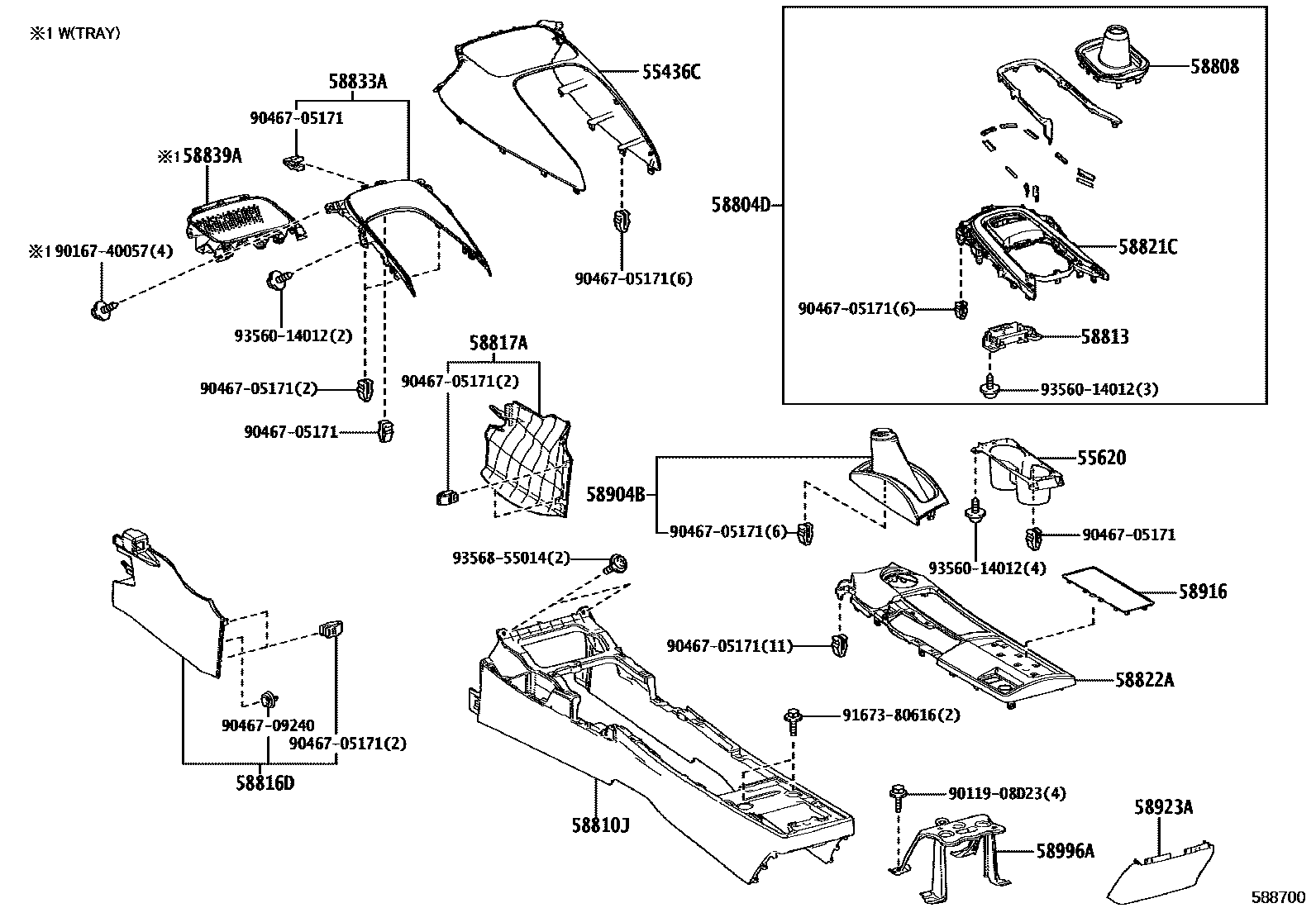

Toyota GR COROLLA — CONSOLE BOX & BRACKET

0001 1 0002 1

55436CPANEL, INSTRUMENT PANEL FINISH, END LH

main55436-12200-C0iGZEA14..02S202303-202304

BLACK,TRIM3#

main55436-12200-C0iGZEA14202409

BLACK,TRIM2#,3#

main55436-12200-C0iGZEA14..GEN,MA,TH202210-202409

BLACK,TRIM2#

main55436-12200-C0iGZEA14..GEN,MA,TH202210-202409

BLACK,TRIM2#,3#

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-12360-C0iGZEA14202409

BLACK,TRIM2#,3#

main55620-12360-C0iGZEA14..02S202303-202304

BLACK,TRIM3#

main55620-12360-C0iGZEA14..05S202210-202409

BLACK,TRIM2#,3#

58804DPANEL SUB-ASSY, CONSOLE, UPPER FRONT

main58804-12270-C1iGZEA14..05S202210-202309

BLACK/GRAY,TRIM2#

main58804-12270-C1iGZEA14202309-202409

BLACK/GRAY,TRIM20

main58804-12270-C2iGZEA14..05S202210-202409

BLACK/RED,TRIM3#

main58804-12270-C4iGZEA14202309-202409

BLACK/BLUE NO.121,TRIM21

main58804-12280-C0iGZEA14..02S202303-202304

BLACK/RED,TRIM3#

main58804-12290-C0iGZEA14..6F202409

BLACK/GR RED,TRIM3#

main58804-12290-C1iGZEA14..6F202409

BLACK/GRAY,TRIM2#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12540-C1iGZEA14202309-202409

BLACK/GRAY,TRIM20

main58808-12540-C1iGZEA14..6F202409

BLACK/GRAY,TRIM2#

main58808-12540-C1iGZEA14..05S202210-202309

BLACK/GRAY,TRIM2#

main58808-12540-C2iGZEA14..05S202210-202409

BLACK/RED,TRIM3#

main58808-12540-C2iGZEA14..6F202409

BLACK/RED,TRIM3#

main58808-12540-C3iGZEA14202309-202409

BLACK/BLUE NO.121,TRIM21

main58808-12550-C0iGZEA14..02S202303-202304

BLACK/RED,TRIM3#

58810JBOX ASSY, CONSOLE

main58810-12560-C0iGZEA14..02S202303-202304

BLACK,TRIM3#

main58810-12560-C0iGZEA14202409

BLACK,TRIM2#,3#

main58810-12560-C0iGZEA14..05S202210-202409

BLACK,TRIM2#,3#

58813BOX, CONSOLE, UPPER

main58813-12180iGZEA14..02S¥1,110202210-202304

main58813-12180iGZEA14..05S¥1,110202210-202409

main58813-12190iGZEA14..6F¥1,750202409

58816DINSERT, CONSOLE BOX, FRONT NO.1

main58816-12140-C0iGZEA14..LHD202210-202409

BLACK,TRIM2#,3#

main58816-12140-C0iGZEA14..LHD202409

BLACK,TRIM2#,3#

main58816-12160-C0iGZEA14..02S202303-202304

BLACK,TRIM3#

main58816-12160-C0iGZEA14..RHD..05S202210-202409

BLACK,TRIM2#,3#

main58816-12160-C0iGZEA14..RHD202409

BLACK,TRIM2#,3#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-12150-C0iGZEA14..LHD202409

BLACK,TRIM2#,3#

main58817-12150-C0iGZEA14..LHD202210-202409

BLACK,TRIM2#,3#

main58817-12170-C0iGZEA14..RHD202409

BLACK,TRIM2#,3#

main58817-12170-C0iGZEA14..02S202303-202304

BLACK,TRIM3#

main58817-12170-C0iGZEA14..RHD..05S202210-202409

BLACK,TRIM2#,3#

58821CPANEL, CONSOLE, UPPER

main58821-12370iGZEA14..02S¥4,860202210-202304

main58821-12370iGZEA14..05S¥4,860202210-202409

main58821-12380iGZEA14..6F¥5,900202409

58822APANEL, CONSOLE, UPPER REAR

main58822-12410iGZEA14..05S¥9,800202210-202401

sub58822-12411¥8,800

sub84970-12560

main58822-12410iGZEA14..02S¥9,800202210-202304

sub58822-12411¥8,800

sub84970-12560

main58822-12411iGZEA14¥8,800202409

main58822-12411iGZEA14¥8,800202401-202409

58833ACOVER, CONSOLE, UPPER

main58833-12150-C0iGZEA14..GEN,MA,TH202210-202409

BLACK,TRIM2#

main58833-12150-C0iGZEA14..02S202303-202304

BLACK,TRIM3#

main58833-12150-C0iGZEA14..BZ202303-202409

BLACK,TRIM2#,3#

main58833-12180-C1iGZEA14..05S..ARL202210-202309

HIGH GRADE PACKAGE,BLACK/GRAY,TRIM2#

main58833-12180-C1iGZEA14..05S..ARL202210-202309

HIGH GRADE PACKAGE&WIRELESS CHARGER-WITH,BLACK/GRAY,TRIM2#

main58833-12180-C1iGZEA14..BZ,GEN,MA,TH202210-202309

BLACK/GRAY,TRIM2#

main58833-12180-C1iGZEA14202409

BLACK/GRAY,TRIM2#

main58833-12180-C1iGZEA14..ARL202309-202409

BLACK/GRAY,TRIM20

main58833-12180-C1iGZEA14..ARL202309-202409

HIGH GRADE PACKAGE,BLACK/GRAY,TRIM20

main58833-12180-C1iGZEA14..ARL202309-202409

HIGH GRADE PACKAGE&WIRELESS CHARGER-WITH,BLACK/GRAY,TRIM20

main58833-12180-C6iGZEA14202409

BLACK/RED,TRIM3#

main58833-12180-C6iGZEA14..05S..ARL202210-202409

BLACK/RED,TRIM3#

main58833-12180-C6iGZEA14..05S..ARL202210-202409

HIGH GRADE PACKAGE,BLACK/RED,TRIM3#

main58833-12180-C6iGZEA14..05S..ARL202210-202409

HIGH GRADE PACKAGE&WIRELESS CHARGER-WITH,BLACK/RED,TRIM3#

main58833-12180-C9iGZEA14..BZ,GEN,MA,TH202309-202409

HIGH GRADE PACKAGE,BLACK/BLUE NO.121,TRIM21

main58833-12180-C9iGZEA14..ARL202309-202409

BLACK/BLUE NO.121,TRIM21

main58833-12180-C9iGZEA14..ARL202309-202409

HIGH GRADE PACKAGE&WIRELESS CHARGER-WITH,BLACK/BLUE NO.121,TRIM21

58839ACOVER, CONSOLE BOX HOLE

main58839-12090-C0iGZEA14..BZ,GEN,MA,TH202409

BLACK,TRIM2#,3#

main58839-12090-C0iGZEA14..02S202303-202304

BLACK,TRIM3#

main58839-12090-C0iGZEA14..05S..(ARL,GEN,MA,TH)202210-202409

BLACK,TRIM2#

main58839-12090-C0iGZEA14..BZ202303-202409

BLACK,TRIM2#,3#

main58839-12100-C0iGZEA14..ARL202409

BLACK,TRIM2#,3#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-12180-C0iGZEA14..BZ,GEN,MA,TH202210-202409

BLACK,TRIM2#

main58904-12190-C0iGZEA14..BZ,GEN,MA,TH202210-202409

HIGH GRADE PACKAGE,BLACK/RED,TRIM3#

main58904-12190-C0iGZEA14..05S..ARL202210-202409

BLACK/RED,TRIM3#

main58904-12190-C0iGZEA14202409

BLACK/RED,TRIM3#

main58904-12190-C1iGZEA14..ARL202309-202409

BLACK/GRAY,TRIM20

main58904-12190-C1iGZEA14202409

BLACK/GRAY,TRIM2#

main58904-12190-C1iGZEA14..05S..ARL202210-202309

BLACK/GRAY,TRIM2#

main58904-12190-C1iGZEA14..05S..ARL202210-202309

HIGH GRADE PACKAGE,BLACK/GRAY,TRIM2#

main58904-12190-C1iGZEA14..ARL202309-202409

HIGH GRADE PACKAGE,BLACK/GRAY,TRIM20

main58904-12190-C2iGZEA14..ARL202309-202409

BLACK/BLUE NO.121,TRIM21

main58904-12190-C2iGZEA14..ARL202309-202409

HIGH GRADE PACKAGE,BLACK/BLUE NO.121,TRIM21

main58904-12200-C0iGZEA14..02S202303-202304

BLACK/RED,TRIM3#

58916MAT, BOX BOTTOM

main58916-12100-C0iGZEA14202409

BLACK,TRIM2#,3#

main58916-12100-C0iGZEA14..02S202303-202304

BLACK,TRIM3#

main58916-12100-C0iGZEA14..05S202210-202409

BLACK,TRIM2#,3#

58923APANEL, CONSOLE REAR END

main58923-12370-C0iGZEA14202409

BLACK,TRIM2#,3#

main58923-12370-C0iGZEA14..02S202303-202304

BLACK,TRIM3#

main58923-12370-C0iGZEA14..05S202210-202409

BLACK,TRIM2#,3#

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-12270iGZEA14..05S¥1,790202210-202409

main58996-12270iGZEA14¥1,790202409

main58996-12270iGZEA14..02S¥1,790202210-202304

9011908D23

main90119-08D23¥60

9016740057

main90167-40057¥60

9046705171

main90467-05171¥60

9046709240

main90467-09240¥80

9167380616

main91673-80616¥60

9356014012

main93560-14012¥70

9356855014

main93568-55014¥70

23 parts on this diagram · 2 diagrams in section
