Toyota GR COROLLA — CLEARANCE & BACK SONAR
5201
5202
89305CUSHION SET, ULTRASONIC SENSOR
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
CLEARANCE & BACK SONAR-WITH
89340ACOMPUTER ASSY, CLEARANCE WARNING
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
CLEARANCE & BACK SONAR-WITH
89341KSENSOR, ULTRASONIC, FRONT CORNER
RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040
RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH,BLACK,202
CLEARANCE & BACK SONAR-WITH,BLACK,202
RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH,CYAN METALLIC,8W9
RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH,CYAN METALLIC,8W9
RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH,PRECIOUS METAL,1L5
CLEARANCE & BACK SONAR-WITH,PRECIOUS METAL,1L5
89341LSENSOR, ULTRASONIC, FRONT CENTER
DUMMY-MAT BLACK
CLEARANCE & BACK SONAR-WITH,DUMMY-MAT BLACK
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,202,BLACK PAINT
CLEARANCE & BACK SONAR-WITH,BLACK,202,BLACK PAINT
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLACK,202,BLACK PAINT
89342SENSOR, ULTRASONIC, REAR CORNER
RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,202
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLACK,202
CLEARANCE & BACK SONAR-WITH,BLACK,202
RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH,BLACK,202
CLEARANCE & BACK SONAR-WITH,BLACK,202
RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH,CYAN METALLIC,8W9
RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH,CYAN METALLIC,8W9
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PRECIOUS METAL,1L5
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PRECIOUS METAL,1L5
CLEARANCE & BACK SONAR-WITH,PRECIOUS METAL,1L5
RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH,PRECIOUS METAL,1L5
CLEARANCE & BACK SONAR-WITH,PRECIOUS METAL,1L5
89342ASENSOR, ULTRASONIC, REAR CENTER
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040
RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040
RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH,BLACK,202
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLACK,202
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,202
CLEARANCE & BACK SONAR-WITH,BLACK,202
CLEARANCE & BACK SONAR-WITH,BLACK,202
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5
RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),EMOTIONAL RED 2,3U5
RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH,CYAN METALLIC,8W9
CLEARANCE & BACK SONAR-WITH,CYAN METALLIC,8W9
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PRECIOUS METAL,1L5
CLEARANCE & BACK SONAR-WITH,PRECIOUS METAL,1L5
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PRECIOUS METAL,1L5
RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH,PRECIOUS METAL,1L5
CLEARANCE & BACK SONAR-WITH,PRECIOUS METAL,1L5
89348DCLIP, ULTRASONIC SENSOR
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH
RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH
9167380616

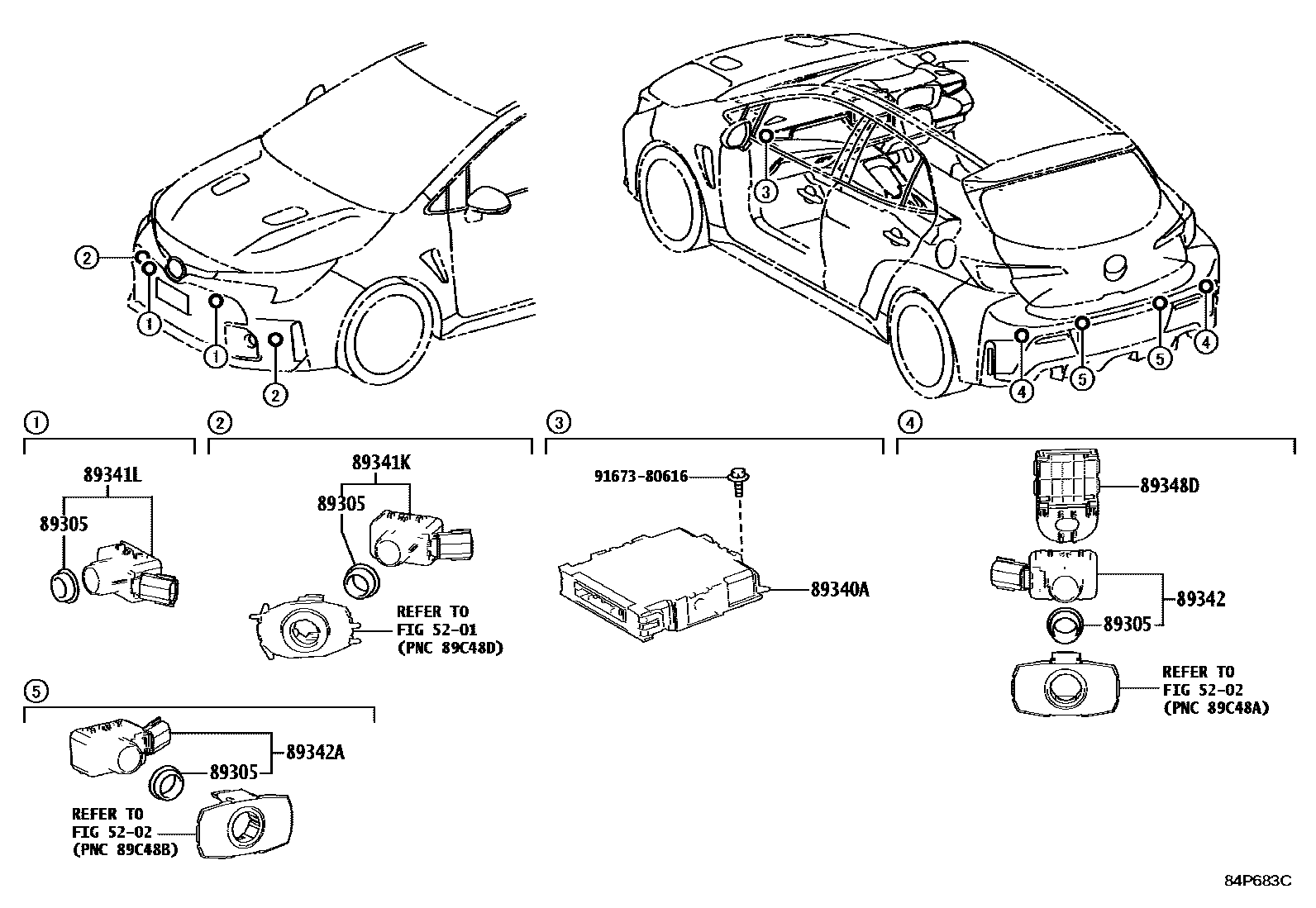

10 parts on this diagram · 1 diagram in section
