Toyota GR COROLLA — BRAKE BOOSTER & VACUUM TUBE

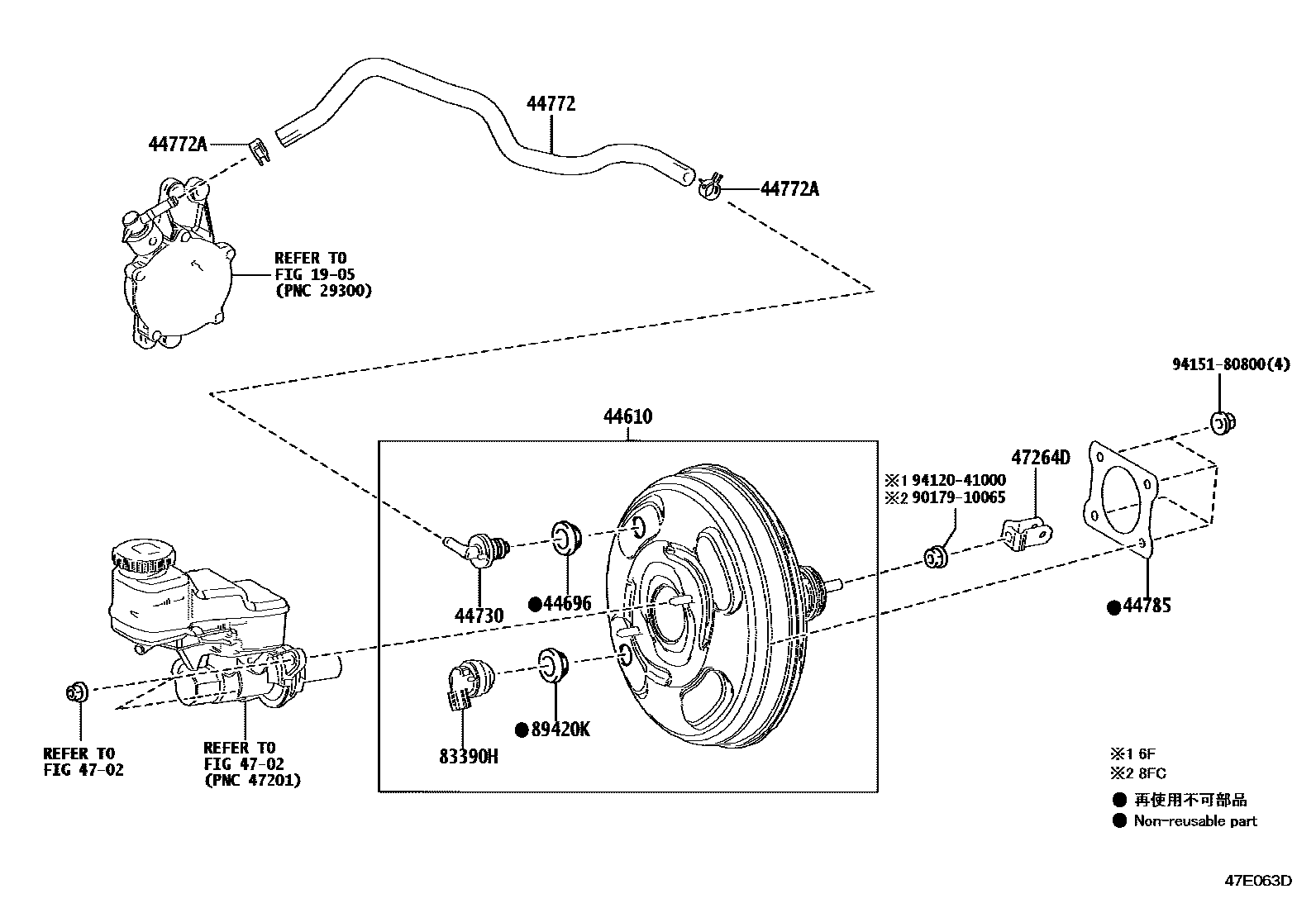

Parts diagram

1905

44610BOOSTER ASSY, BRAKE

main44610-12N80i¥33,200202409

main44610-12N80i¥33,200202210-202304

main44610-12N80i¥33,200202210-202409

main44610-12N90i202409

main44610-12N90i202210-202409

44696GROMMET, CHECK VALVE

main90480-24439i¥390202409

main90480-24439i¥390202210-202304

main90480-24439i¥390202210-202409

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010i¥1,300202409

main44730-52010i¥1,300202210-202304

main44730-52010i¥1,300202210-202409

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12810i¥520202210-202409

main44772-12810i¥520202409

main44772-12810i¥520202210-202304

main44772-12890i202210-202409

main44772-12890i202409

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014i¥230202409

main90467-16014i¥230202210-202304

main90467-16014i¥230202210-202409

44785GASKET, BRAKE BOOSTER

main44785-12040i¥200202210-202304

main44785-12040i¥200202409

main44785-12040i¥200202210-202409

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060i¥250202409

main47264-12060i¥250202311-202409

main47264-52060i202409

main47264-63010i¥250202210-202311

main47264-63010i¥250202210-202304

main47264-63020i¥260202409

main47264-63020i¥260202311-202409

main47264-68010i¥300202210-202311

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120i¥3,780202210-202304

main83390-28120i¥3,780202409

main83390-28120i¥3,780202210-202409

89420KGROMMET, VACUUM SENSOR

main90480-24439i¥390202409

main90480-24439i¥390202210-202304

main90480-24439i¥390202210-202409

9017910065

main90179-10065¥90

9412041000

main94120-41000¥80

9415180800

main94151-80800¥80

14 parts on this diagram · 2 diagrams in section
