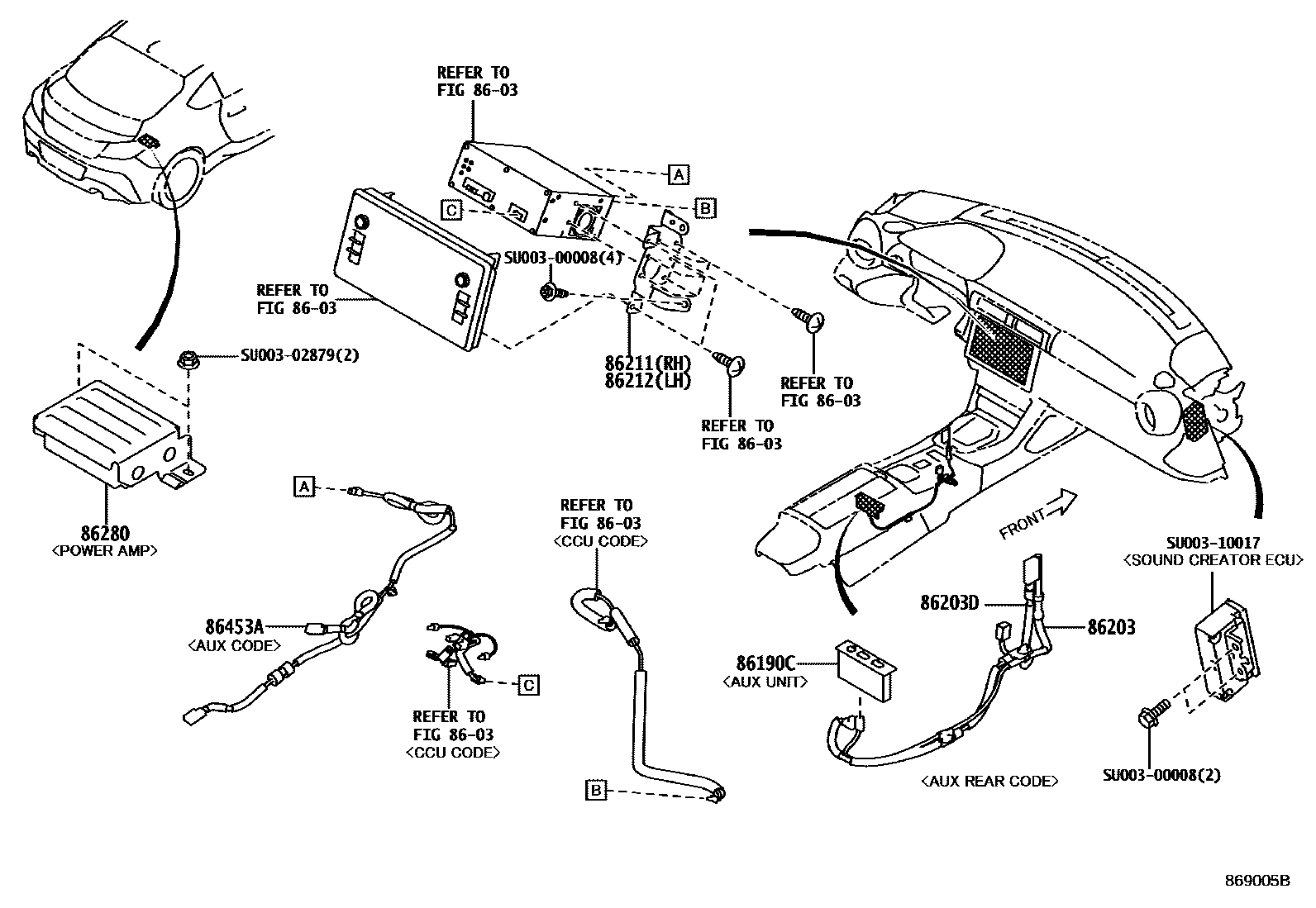

Toyota GR 86 — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

8603

86190CADAPTER ASSY, STEREO JACK, NO.1

mainSU00309645iZN8202110-202302

subSU003-11399¥12,200

mainSU00311399iZN8..B202302-202312

86203WIRE, RADIO

mainSU00309647iZN8..6FC..(BASE,BASE2)202110-202302

mainSU00309648iZN8..6FC..(HIGH,HIGH2)202110-202302

mainSU00309649iZN8..6F..BASE202110-202302

mainSU00309650iZN8..6F..(HIGH,ORA)..B202110-202302

subSU003-11346¥9,900

mainSU00311343iZN8..6FC..(BASE,BASE2)..B202302-202312

mainSU00311344iZN8..6FC..BASE..C202312

OPTION CODE=FH

mainSU00311344iZN8..6FC..(HIGH,HIGH2,ORA)..B202302-202312

mainSU00311344iZN8..6FC..(HIGH,ORB)..C202312

OPTION CODE=FX

mainSU00311344iZN8..6FC..(HIGH,ORB)..C202312

OPTION CODE=CH

mainSU00311344iZN8..6FC..(HIGH,ORB)..C202312

OPTION CODE=CX

mainSU00311344iZN8..6FC..(HIGH,ORB)..C202312

OPTION CODE=BH

mainSU00311344iZN8..6FC..(HIGH,ORB)..C202312

OPTION CODE=BX

mainSU00311345iZN8..6F..BASE..B202302-202312

mainSU00311346iZN8..6F..BASE..C202312

OPTION CODE=BX

mainSU00311346iZN8..6F..BASE..D202312

OPTION CODE=CH

mainSU00311346iZN8..6F..BASE..D202312

OPTION CODE=CX

mainSU00311346iZN8..6F..BASE..D202312

OPTION CODE=BH

mainSU00311346iZN8..6F..BASE..D202312

OPTION CODE=FX

mainSU00311346iZN8..6F..BASE..D202312

OPTION CODE=FH

mainSU00311346iZN8..6F..(HIGH,ORA)..B202302-202312

86203DWIRE, STEREO COMPONENT, NO.1

mainSU00309651iZN8..B202110-202312

86211BRACKET, RADIO, NO.1

mainSU00309816iZN8..B202110-202312

86212BRACKET, RADIO, NO.2

mainSU00309817iZN8..B202110-202312

86280AMPLIFIER ASSY, STEREO COMPONENT

mainSU00308751iZN8..(HIGH,HIGH2,ORA)..B202110-202312

86453AWIRE, MULTI-MEDIA MODULE

mainSU00309653iZN8..B202110-202312

SU00300008

mainSU003-00008¥20

SU00302879

mainSU003-02879¥90

SU00310017

mainSU003-10017

11 parts on this diagram · 2 diagrams in section
