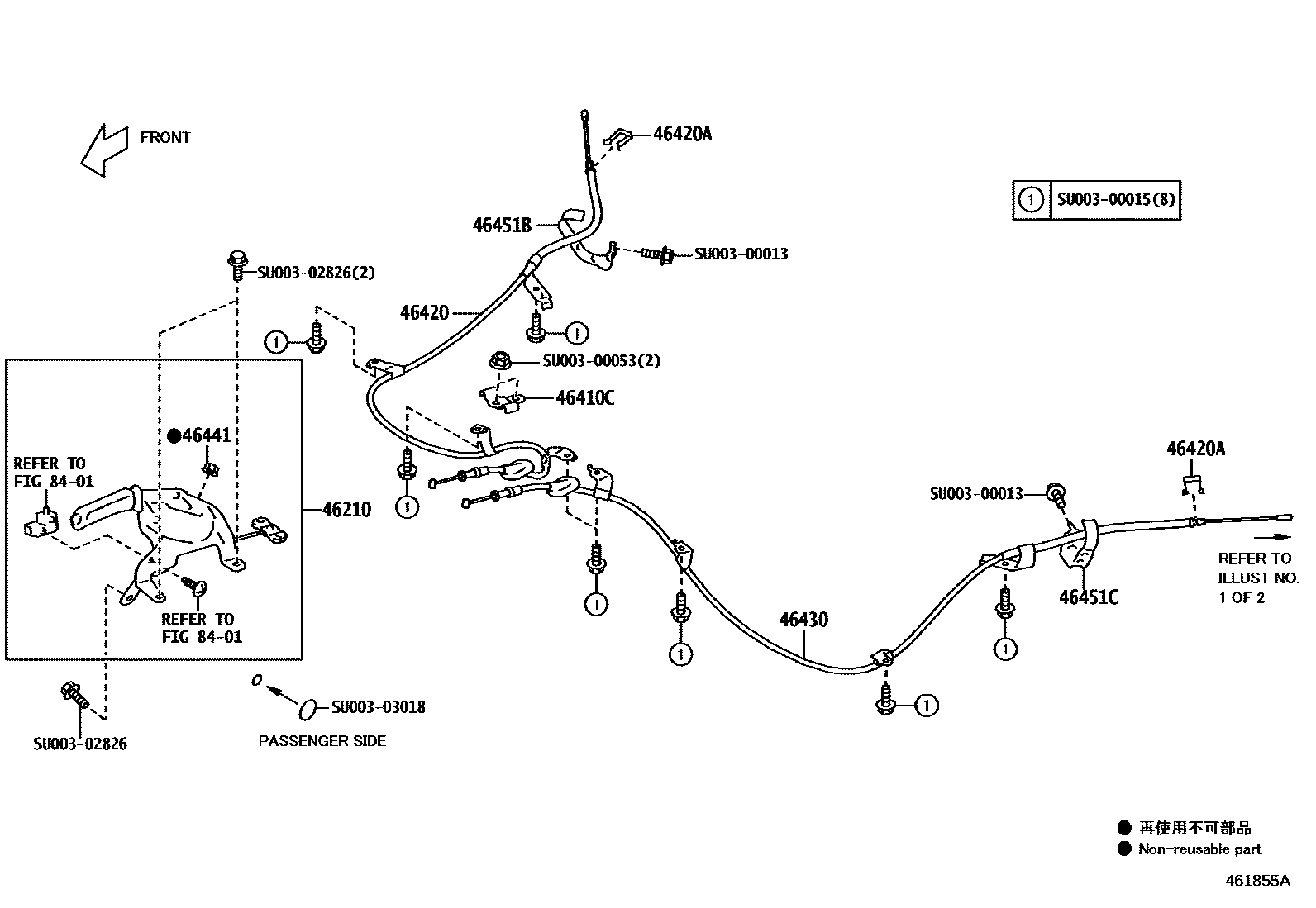

Toyota GR 86 — PARKING BRAKE & CABLE

0001 1 0002 1

46210LEVER ASSY, PARKING BRAKE

mainSU00309608iZN8..HIGH202110-202312

STITCH:RED

mainSU00309857iZN8202110-202312

STITCH:SILVER

mainSU00309857iZN8..(BASE,HIGH)..D202409

mainSU00311173iZN8..ORA202206-202312

mainSU00312145iZN8..GRA202409

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

mainSU00308433iZN8..B202110-202312

46420CABLE ASSY, PARKING BRAKE, NO.2

mainSU00308828iZN8..D202110-202312

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

mainSU00300547iZN8..C202110-202312

46430CABLE ASSY, PARKING BRAKE, NO.3

mainSU00308829iZN8..B202110-202312

46441NUT, WIRE ADJUSTING, NO.1

mainSU00302866iZN8202110-202312

46451BBRACKET, PARKING BRAKE CABLE SUPPORT

mainSU00300544iZN8202110-202312

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

mainSU00300545iZN8202110-202312

8401

SU00300013

mainSU003-00013¥30

SU00300015

mainSU003-00015¥30

SU00300053

mainSU003-00053¥30

SU00302826

mainSU003-02826¥80

SU00303018

mainSU003-03018¥60

14 parts on this diagram · 2 diagrams in section
