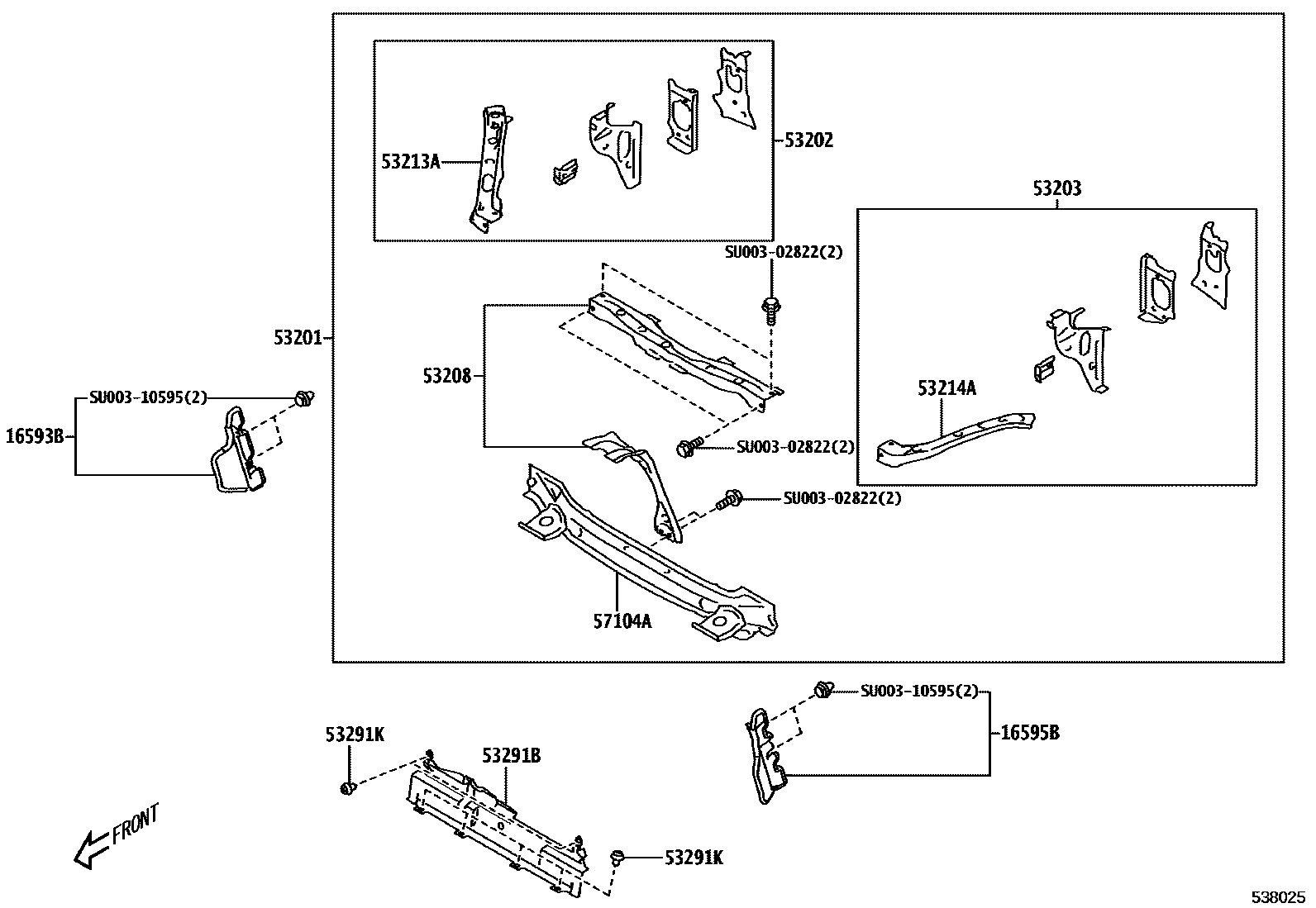

Toyota GR 86 — FRONT FENDER APRON & DASH PANEL

0001 1RADIATOR SUPPORT 0002 1FENDER APRON 0003 1HOOD BUMPER CUSHION 0004 1DASH PANEL 0005 1BRACKET,BRACE 0006 1CLUTCH MASTER CYLINDER HOLE C

16593BGUIDE, RADIATOR AIR, NO.1 RH

mainSU00309288iFA24..ZN8202110-202312

16595BGUIDE, RADIATOR AIR, NO.1 LH

mainSU00309289iFA24..ZN8202110-202312

53201SUPPORT SUB-ASSY, RADIATOR

mainSU00309495iZN8202110-202312

53202SUPPORT SUB-ASSY, RADIATOR, RH

mainSU00309722iZN8202110-202312

53203SUPPORT SUB-ASSY, RADIATOR, LH

mainSU00309723iZN8202110-202312

53208SUPPORT SUB-ASSY, RADIATOR GRILLE, CENTER

mainSU00309719iZN8202110-202312

53213ASUPPORT, RADIATOR, UPPER RH

mainSU00309720iZN8202110-202312

53214ASUPPORT, RADIATOR, UPPER LH

mainSU00309721iZN8202110-202312

53291BPLATE, RADIATOR COVER

mainSU00309084iZN8202110-202312

53291KCLIP, RADIATOR COVER PLATE

mainSU00302984iZN8202110-202312

57104AMEMBER SUB-ASSY, FRONT CROSS

mainSU00301372iZN8202110-202312

SU00302822

mainSU003-02822¥120

SU00310595

mainSU003-10595¥120

13 parts on this diagram · 6 diagrams in section
