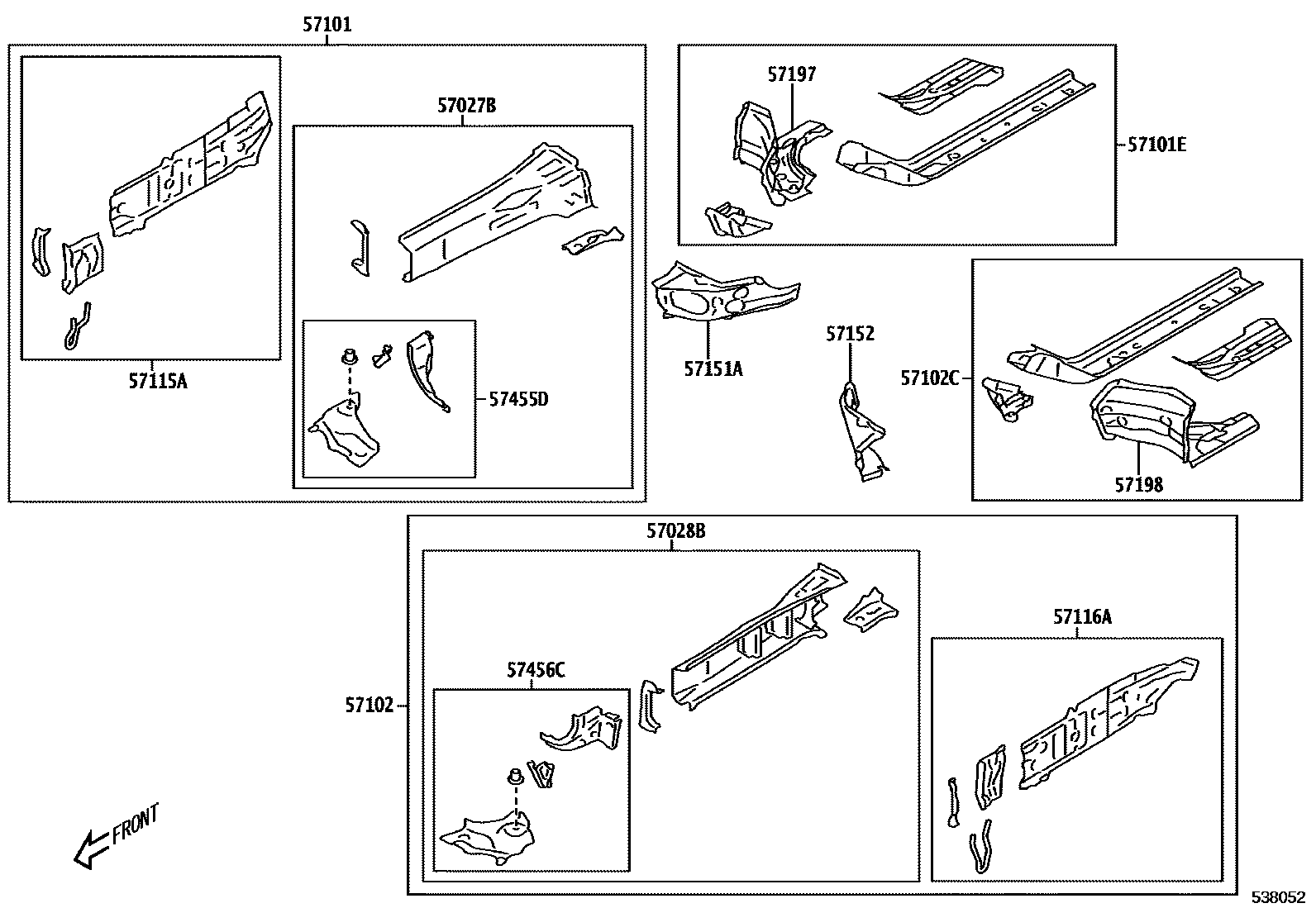

Toyota GR 86 — FLOOR SIDE MEMBER
57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH
57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57101EMEMBER SUB-ASSY, FRONT SIDE, INNER RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57102CMEMBER SUB-ASSY, FRONT SIDE, INNER LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH
57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57455DGUSSET, FRONT FLOOR CROSSMEMBER, RH
57456CGUSSET, FRONT FLOOR CROSSMEMBER, LH
14 parts on this diagram · 2 diagrams in section
