Toyota GR 86 — ENGINE OIL COOLER

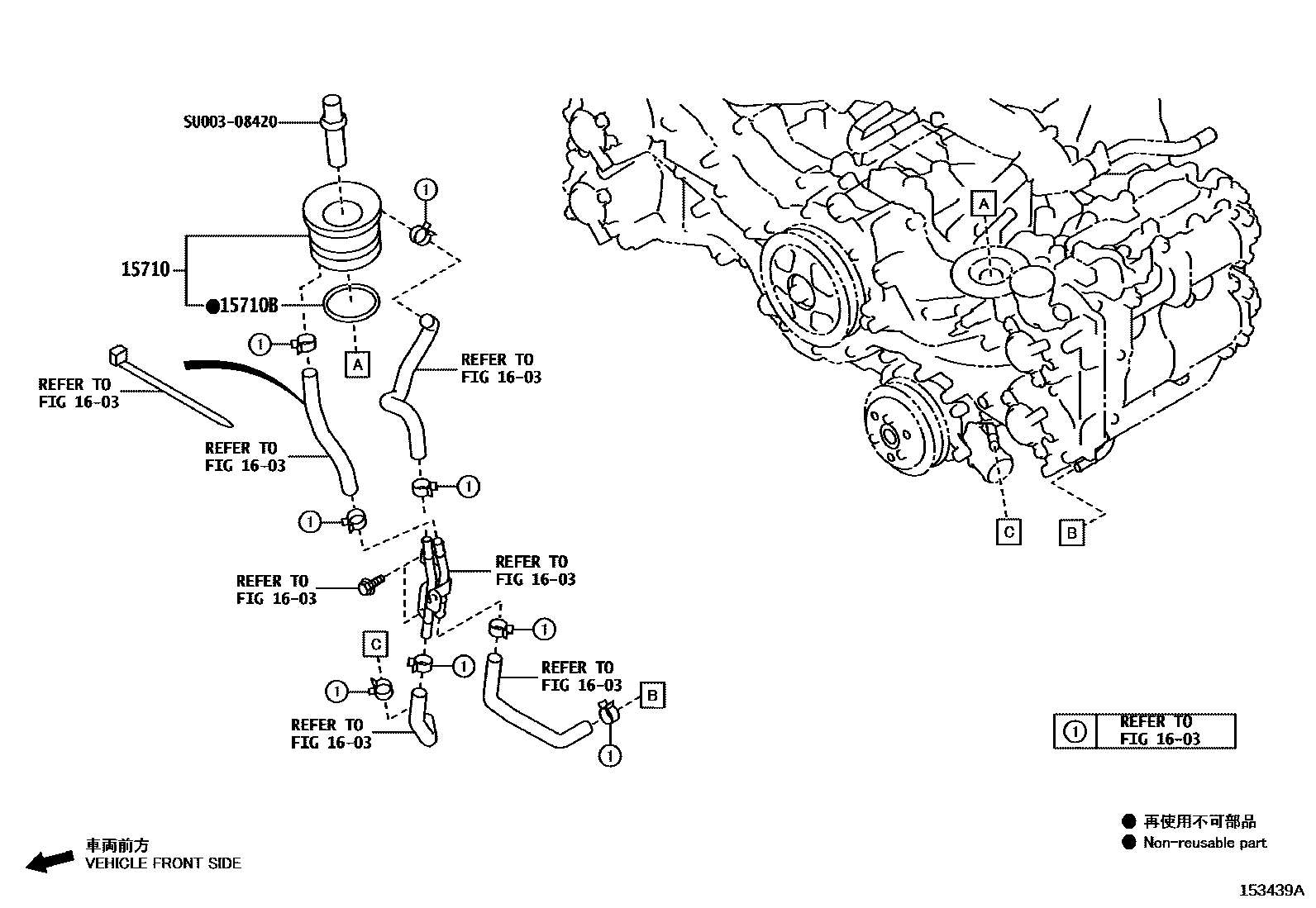

Parts diagram

15710COOLER ASSY, OIL

mainSU00309443i202110-202206

mainSU00309443i202206-202312

mainSU00309443i202312

mainSU00309443i202409

15710BRING, O(FOR OIL COOLER)

mainSU00308421i202110-202206

mainSU00308421i202206-202312

mainSU00308421i202312

mainSU00308421i202409

1603

SU00308420

mainSU003-08420¥2,970

4 parts on this diagram · 1 diagram in section
