Toyota GR 86 — DISC WHEEL & WHEEL CAP

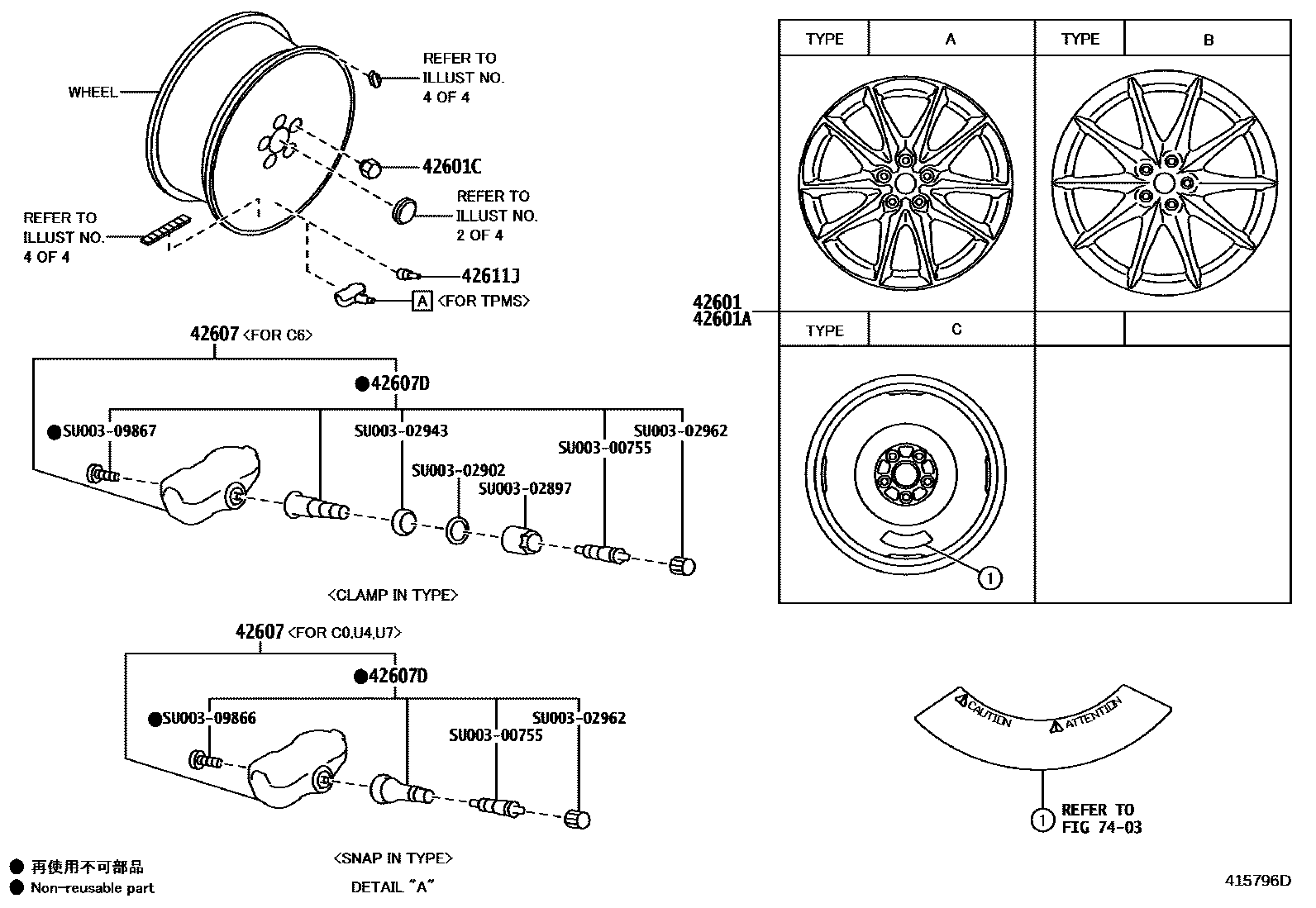

Parts diagram
42601WHEEL, DISC
mainSU00308843i202110-202206
17X7.5J, #,TYPE A:REFER ILLUST.
mainSU00308843i202206-202312
17X7.5J, #,TYPE A:REFER ILLUST.
mainSU00309471i202312
18X7.5J, #,TYPE B:REFER ILLUST.
mainSU00309471i202312
18X7.5J, #,OPTION CODE=FH,TYPE B:REFER ILLUST.
mainSU00309471i202312
18X7.5J, #,OPTION CODE=CH,TYPE B:REFER ILLUST.
mainSU00309471i202312
18X7.5J, #,OPTION CODE=XH,TYPE B:REFER ILLUST.
mainSU00309471i202312
18X7.5J, #,OPTION CODE=AH,TYPE B:REFER ILLUST.
mainSU00309471i202312
18X7.5J, #,OPTION CODE=BH,TYPE B:REFER ILLUST.
mainSU00309471i202409
18X7.5J, #,OPTION CODE=FH,TYPE B:REFER ILLUST.
mainSU00309471i202206-202312
18X7.5J, #,TYPE B:REFER ILLUST.
mainSU00309471i202110-202206
18X7.5J, #,TYPE B:REFER ILLUST.
mainSU00309471i202409
18X7.5J, #,OPTION CODE=CH,TYPE B:REFER ILLUST.
mainSU00309471i202409
18X7.5J, #,OPTION CODE=XH,TYPE B:REFER ILLUST.
mainSU00309471i202409
18X7.5J, #,OPTION CODE=AH,TYPE B:REFER ILLUST.
mainSU00309471i202409
18X7.5J, #,OPTION CODE=BH,TYPE B:REFER ILLUST.
mainSU00309471i202409
18X7.5J, #,TYPE B:REFER ILLUST.
mainSU00311528i202312
18X7.5J, #,TYPE B:REFER ILLUST.
mainSU00312037i202409
18X7.5J, #,TYPE B:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
mainSU00304574i202110-202206
16X4T,TYPE C:REFER ILLUST.
subSU003-11203¥10,400
42601CNUT, HUB (FOR AXLE)
mainSU00310733i202206-202312
mainSU00310733i202312
mainSU00310733i202409
mainSU00310733i202110-202206
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
mainSU00309715i202206-202312
DESTINATION CODE=C0
mainSU00309715i202110-202206
DESTINATION CODE=C0
mainSU00309715i202110-202206
DESTINATION CODE=U4
mainSU00309715i202110-202206
DESTINATION CODE=U7
mainSU00309715i202206-202312
DESTINATION CODE=U4
mainSU00309715i202206-202312
DESTINATION CODE=U7
mainSU00309715i202312
DESTINATION CODE=C0
mainSU00309715i202312
DESTINATION CODE=U4
mainSU00309715i202312
DESTINATION CODE=U7
mainSU00309715i202409
DESTINATION CODE=C0
mainSU00309715i202409
DESTINATION CODE=U4
mainSU00309715i202409
DESTINATION CODE=U7
mainSU00309860i202110-202206
DESTINATION CODE=C6
mainSU00309860i202206-202312
DESTINATION CODE=C6
42607DVALVE, TIRE PRESSURE MONITOR
main28194-CC000i202312
DESTINATION CODE=U4
main28194-CC000i202312
DESTINATION CODE=U7
main28194-CC000i202312
DESTINATION CODE=C0
main28194-CC000i202206
DESTINATION CODE=U7
main28194-CC000i202206
DESTINATION CODE=C0
main28194-CC000i202206
DESTINATION CODE=U4
mainSU00310826i202206-202312
DESTINATION CODE=C6
mainSU00310826i202110-202206
DESTINATION CODE=C6
mainSU00311839i202409
DESTINATION CODE=U7
mainSU00311839i202206-202312
DESTINATION CODE=C0
mainSU00311839i202206-202312
DESTINATION CODE=U4
mainSU00311839i202206-202312
DESTINATION CODE=U7
mainSU00311839i202409
DESTINATION CODE=C0
mainSU00311839i202409
DESTINATION CODE=U4
42611JVALVE (FOR TUBELESS TIRE SPARE)
mainSU00300447i202110-202206
7403
SU00300755
mainSU003-00755¥210
SU00302897
mainSU003-02897¥300
SU00302902
mainSU003-02902¥180
SU00302943
mainSU003-02943¥320
SU00302962
mainSU003-02962¥320
SU00309866
mainSU003-09866¥170
SU00309867
mainSU003-09867¥170

14 parts on this diagram · 4 diagrams in section
