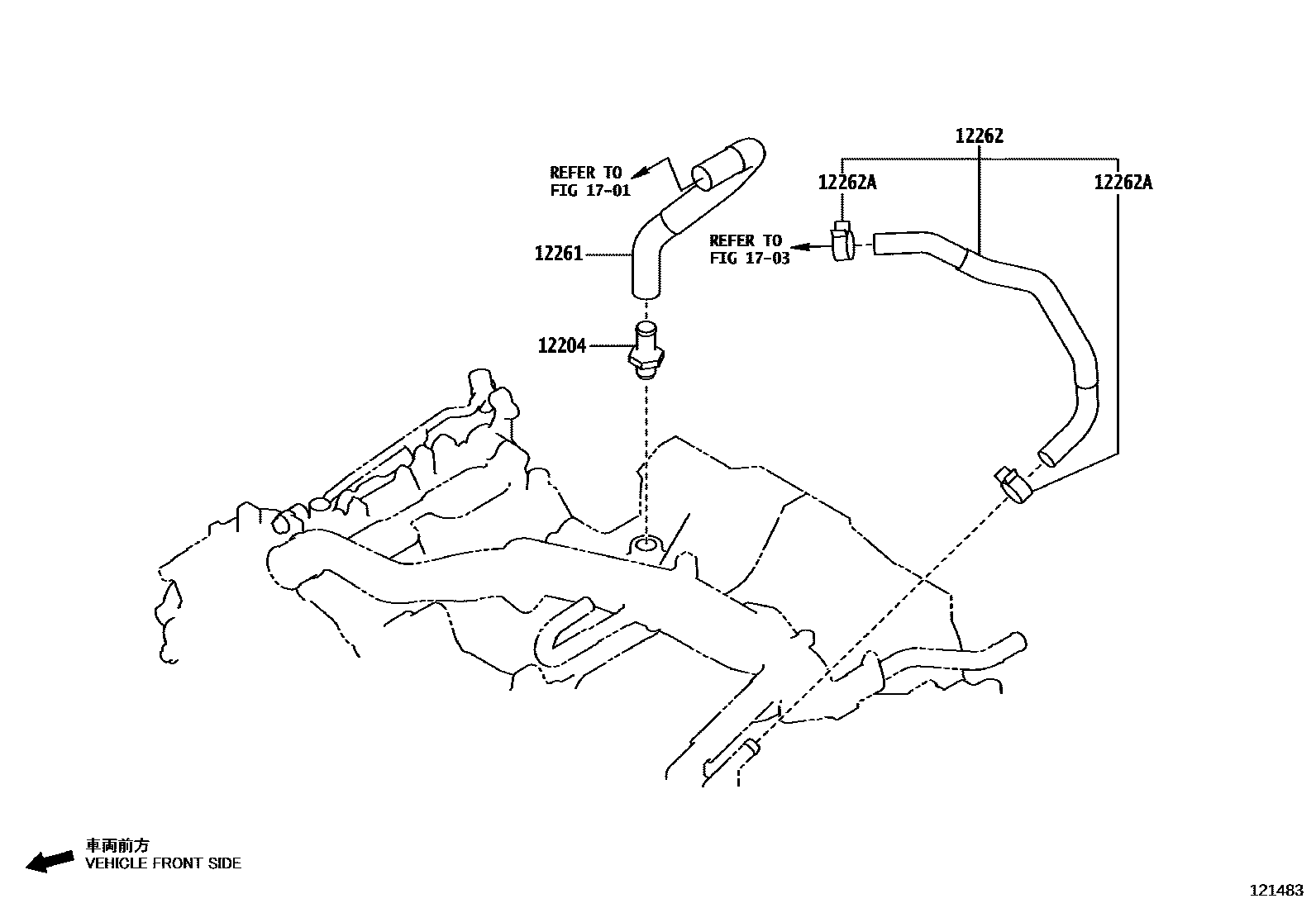

Toyota GR 86 — VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

mainSU00308382iFA24..ZN8202110-202205

mainSU00308382iFA24..ZN8..B202205-202308

mainSU00308382iFA24..ZN8..C202311

mainSU00308382iFA24..ZN8..D202407

12261HOSE, VENTILATION

mainSU00309437iFA24..ZN8202110-202205

mainSU00309437iFA24..ZN8..B202205-202308

mainSU00309437iFA24..ZN8..C202311

mainSU00309437iFA24..ZN8..D202407

12262HOSE, VENTILATION, NO.2

mainSU00308996iFA24..ZN8202110-202205

mainSU00308996iFA24..ZN8..B202205-202308

mainSU00308996iFA24..ZN8..C202311

mainSU00308996iFA24..ZN8..D202407

12262ACLIP(FOR VENTILATION HOSE NO.2)

mainSU00300080iFA24..ZN8202110-202205

mainSU00300080iFA24..ZN8..B202205-202308

mainSU00300080iFA24..ZN8..C202311

mainSU00300080iFA24..ZN8..D202407

1701

1703

6 parts on this diagram · 1 diagram in section
