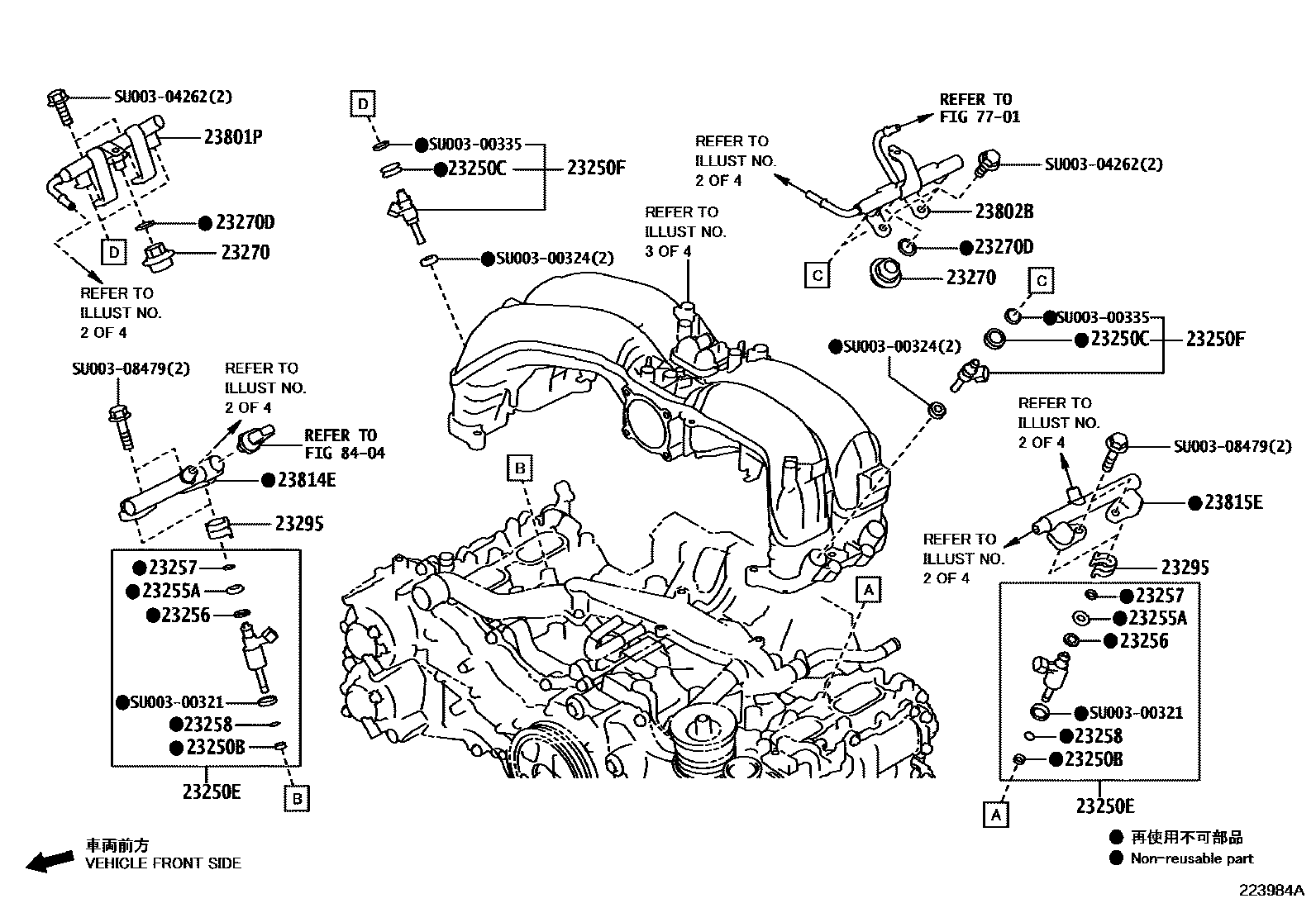

Toyota GR 86 — FUEL INJECTION SYSTEM
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
�}�[�N�@�P
�}�[�N�@�P
�}�[�N�@�P
�}�[�N�@�P
�}�[�N�@�Q
�}�[�N�@�Q
�}�[�N�@�Q
�}�[�N�@�Q
�}�[�N�@�R
�}�[�N�@�R
�}�[�N�@�R
�}�[�N�@�R
23250FINJECTOR ASSY, FUEL(FOR PORT)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23257RING, FUEL INJECTOR BACK-UP, NO.2
23258RING, FUEL INJECTOR BACK-UP, NO.3
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270DGASKET(FOR PULSATION DAMPER)
23295HOLDER, INJECTOR, NO.1
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23814EPIPE, FUEL DELIVERY, RH
23815PIPE, FUEL DELIVERY, NO.2
23815EPIPE, FUEL DELIVERY, LH
7701
8404
SU00300321
SU00300324
SU00300335
SU00304262
SU00308479
23 parts on this diagram · 4 diagrams in section
