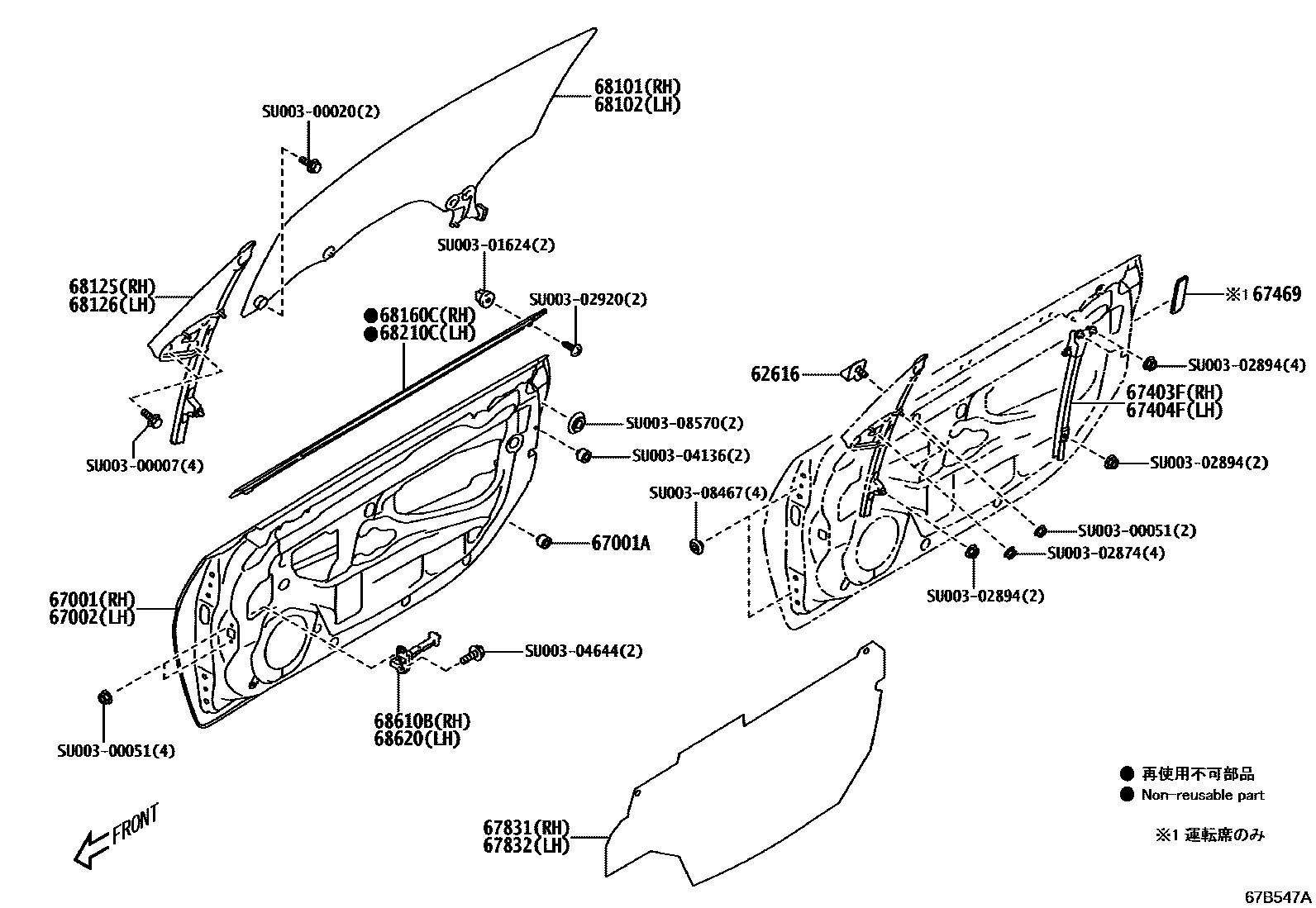

Toyota GR 86 — FRONT DOOR PANEL & GLASS

Parts diagram

62616STOPPER, FRONT DOOR SASH

mainSU00304118i202110-202308

67001PANEL SUB-ASSY, FRONT DOOR, RH

mainSU00308678i202110-202209

subSU003-11250¥66,600

mainSU00311250i202209-202308

67001ACUSHION, FRONT DOOR PANEL

mainSU00308567i202110-202308

67002PANEL SUB-ASSY, FRONT DOOR, LH

mainSU00308679i202110-202209

subSU003-11251¥66,600

mainSU00311251i202209-202308

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

mainSU00308682i202110-202308

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

mainSU00308683i202110-202308

67469PROTECTOR, FRONT DOOR GUIDE

mainSU00301625i202110-202308

67831COVER, FRONT DOOR SERVICE HOLE, RH

mainSU00308684i202110-202308

mainSU00308686i202110-202308

67832COVER, FRONT DOOR SERVICE HOLE, LH

mainSU00308685i202110-202308

mainSU00308687i202110-202308

68101GLASS SUB-ASSY, FRONT DOOR, RH

mainSU003G0031i202110-202409

mainSU003G0053i202409

68102GLASS SUB-ASSY, FRONT DOOR, LH

mainSU003G0032i202110-202409

mainSU003G0054i202409

68125GLASS, FRONT DOOR FIX WINDOW, RH

mainSU003G0033i202110-202301

mainSU003G0048i202301-202308

68126GLASS, FRONT DOOR FIX WINDOW, LH

mainSU003G0034i202110-202301

mainSU003G0049i202301-202308

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

mainSU00308688i202110-202308

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

mainSU00308689i202110-202308

68610BCHECK ASSY, FRONT DOOR, RH

mainSU00308681i202110-202308

68620CHECK ASSY, FRONT DOOR, LH

mainSU00308681i202110-202308

SU00300007

mainSU003-00007¥20

SU00300020

mainSU003-00020¥40

SU00300051

mainSU003-00051¥20

SU00301624

mainSU003-01624¥60

SU00302874

mainSU003-02874¥90

SU00302894

mainSU003-02894¥40

SU00302920

mainSU003-02920¥30

SU00304136

mainSU003-04136¥110

SU00304644

mainSU003-04644¥70

SU00308467

mainSU003-08467¥60

SU00308570

mainSU003-08570¥20

28 parts on this diagram · 3 diagrams in section
