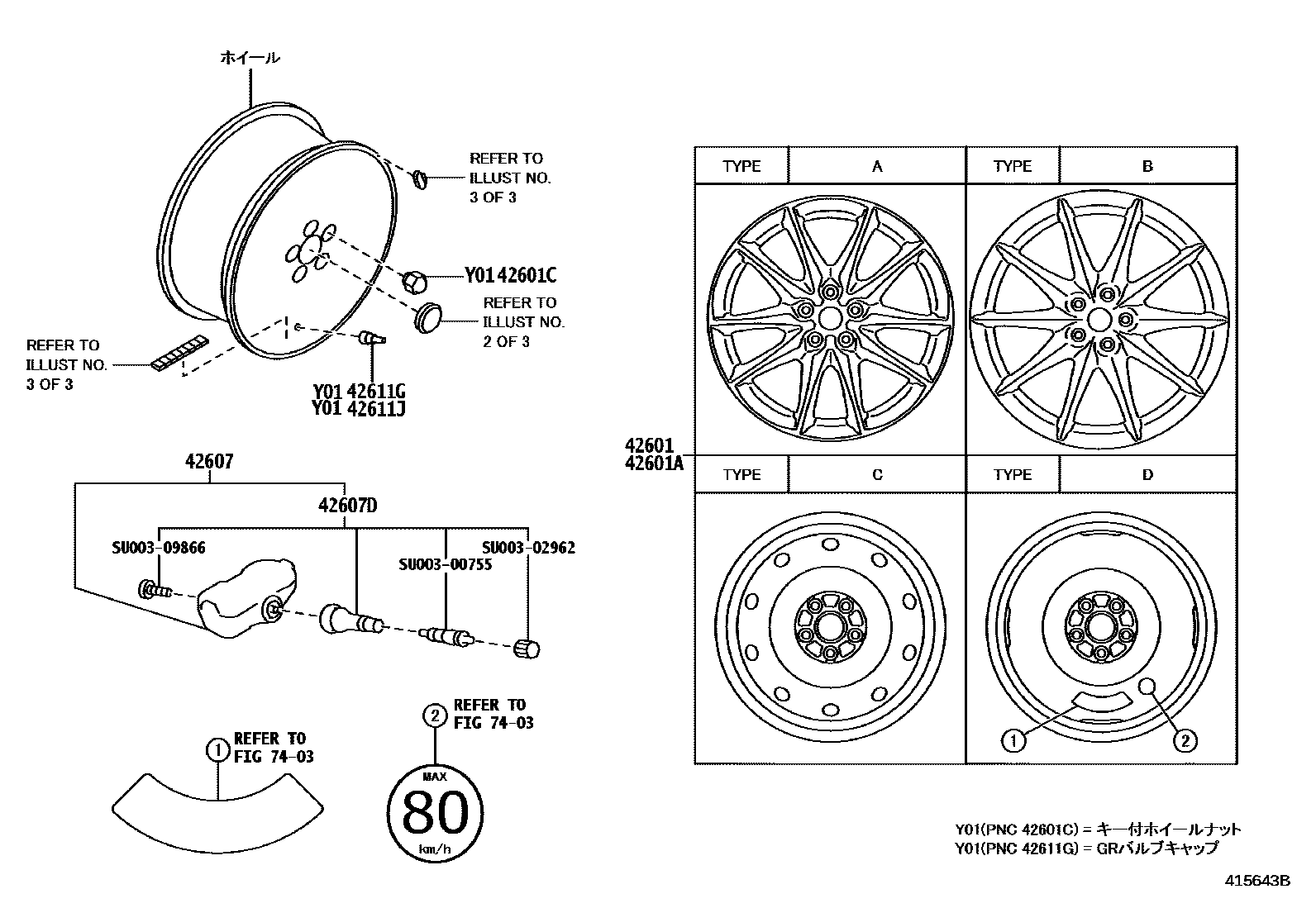

Toyota GR 86 — DISC WHEEL & WHEEL CAP

0001 1��������� 0002 1������������� 0003 1���������

42601WHEEL, DISC

mainSU00300758iZN8..(RC,RCG)..B202110-202308

mainSU00308843iZN8..SZ..C202110-202308

mainSU00309471iZN8..RZ..D202110-202308

mainSU00311389iZN8..(RC,RCG)..C202311

mainSU00311528iZN8..ORB202311

mainSU00312037iZN8..GRA202407

42601AWHEEL, DISC (FOR SPARE)

mainSU00307688iZN8..RZ,SZ202110-202303

subSU003-11202¥9,600

mainSU00311202iZN8..(ORA,RZ,SZ)..B202303-202308

mainSU00311530iZN8..(RZ,SZ)..C202311

42601CNUT, HUB (FOR AXLE)

mainSU00310733iZN8202110-202308

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

mainSU00309715iZN8..(GRA,RZ,SZ)..D202407

42607DVALVE, TIRE PRESSURE MONITOR

mainSU00311839iZN8..(GRA,RZ,SZ)..D202407

42611GVALVE (FOR TUBELESS TIRE)

mainSU00300447iZN8202110-202308

42611JVALVE (FOR TUBELESS TIRE SPARE)

mainSU00300447iZN8..(RZ,SZ)..D202407

7403

SU00300755

mainSU003-00755¥210

SU00302962

mainSU003-02962¥320

SU00309866

mainSU003-09866¥170

11 parts on this diagram · 3 diagrams in section
