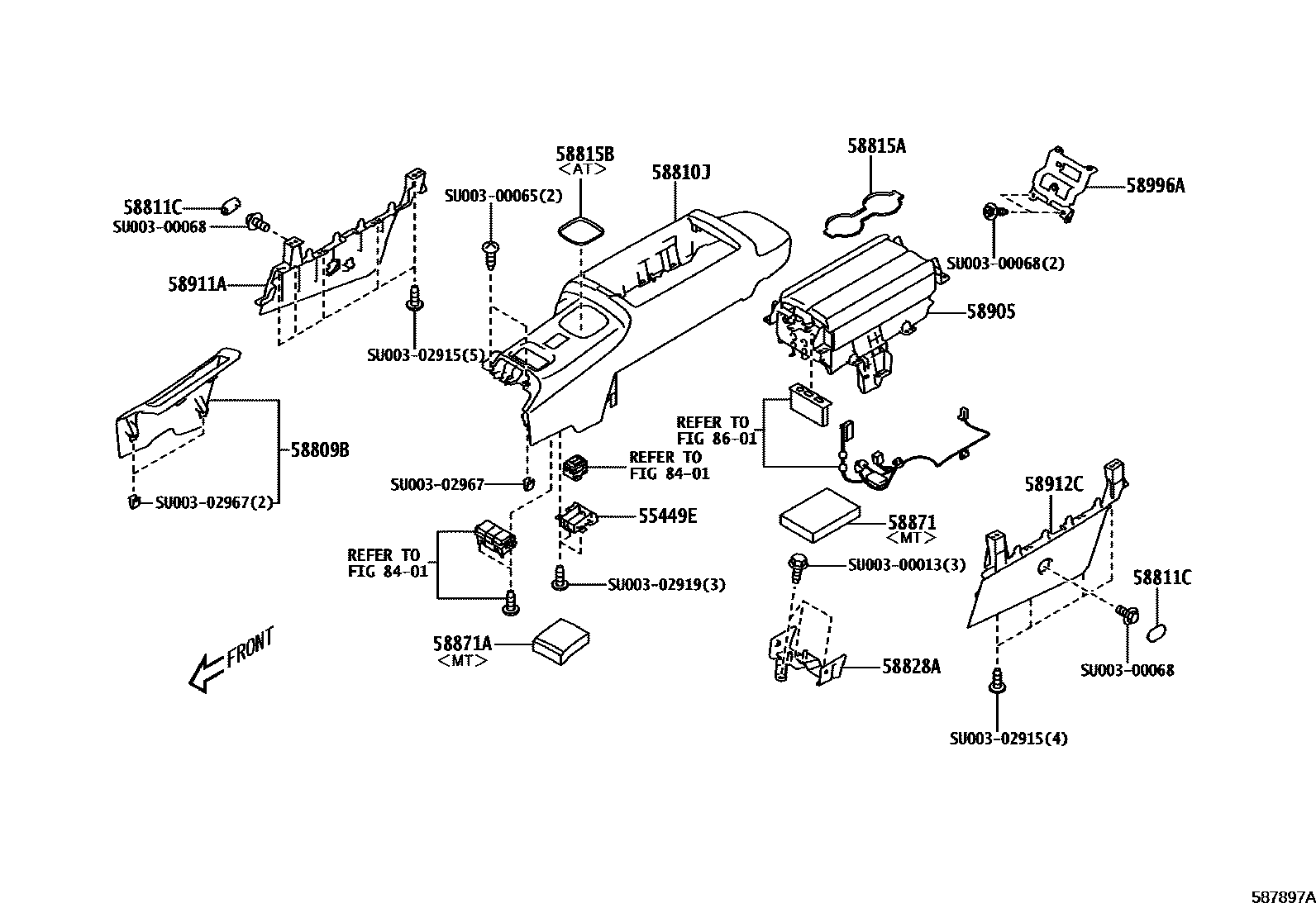

Toyota GR 86 — CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

55449EBASE, SWITCH

mainSU00308805iZN8..B202205-202308

mainSU00308805iZN8..C202311

mainSU00308805iZN8..D202407

mainSU00308805iZN8202110-202205

58809BCOVER SUB-ASSY, PARKING BRAKE HOLE

mainSU00308803iZN8..RZ..B202205-202308

TRIM3#

mainSU00308803iZN8..RZ202110-202205

TRIM3#

mainSU00308803iZN8..ORB202311

TRIM3#

mainSU00308803iZN8..RZ..D202407

TRIM3#

mainSU00309376iZN8..(RC,RCG,RZ,SZ)..D202407

TRIM2#

mainSU00309376iZN8..(RC,RCG,RZ,SZ)..B202205-202308

TRIM2#

mainSU00309376iZN8..RZ202110-202205

TRIM2#

mainSU00309376iZN8..(RC,RCG,RZ,SZ)..C202311

TRIM2#

mainSU00311117iZN8..ORA202205-202308

mainSU00311888iZN8..GRA202407

58810JBOX ASSY, CONSOLE

mainSU00308794iZN8..6FC..C202311

mainSU00308794iZN8..6FC..B202205-202308

mainSU00308794iZN8..6FC..D202407

mainSU00308794iZN8..6FC202110-202205

mainSU00309372iZN8..6F..D202407

mainSU00309372iZN8..6F202110-202205

mainSU00309372iZN8..6F..B202205-202308

mainSU00309372iZN8..6F..C202311

58811CCAP(FOR CONSOLE)

mainSU00308574iZN8202110-202205

BLACK

mainSU00308574iZN8..B202205-202308

BLACK

mainSU00308574iZN8..C202311

BLACK

mainSU00308574iZN8..D202407

BLACK

58815ACARPET, CONSOLE BOX

mainSU00308808iZN8..C202311

mainSU00308808iZN8..B202205-202308

mainSU00308808iZN8202110-202205

mainSU00308808iZN8..D202407

58815BCARPET, CONSOLE BOX

mainSU00308809iZN8..6FC..D202407

mainSU00308809iZN8..6FC202110-202205

mainSU00308809iZN8..6FC..B202205-202308

mainSU00308809iZN8..6FC..C202311

58828ABRACKET, CONSOLE BOX, LOWER

mainSU00308810iZN8202110-202205

mainSU00308810iZN8..B202205-202308

mainSU00308810iZN8..C202311

mainSU00308810iZN8..D202407

58871CUSHION, CONSOLE BOX

mainSU00308806iZN8..6F202110-202205

mainSU00308806iZN8..6F..B202205-202308

mainSU00308806iZN8..6F..C202311

mainSU00308806iZN8..6F..D202407

58871ACUSHION, CONSOLE BOX, NO.2

mainSU00308807iZN8..6F202110-202205

mainSU00308807iZN8..6F..B202205-202308

mainSU00308807iZN8..6F..C202311

mainSU00308807iZN8..6F..D202407

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

mainSU00308797iZN8..6FC..C202311

mainSU00308797iZN8..6FC202110-202205

mainSU00308797iZN8..6FC..D202407

mainSU00308797iZN8..6FC..B202205-202308

mainSU00309373iZN8..6F..D202407

mainSU00309373iZN8..6F..B202205-202308

mainSU00309373iZN8..6F..C202311

mainSU00309373iZN8..6F202110-202205

58911APANEL, BOX SIDE, NO.1

mainSU00308795iZN8..C202311

mainSU00308795iZN8202110-202205

mainSU00308795iZN8..B202205-202308

mainSU00308795iZN8..D202407

58912CPANEL, BOX SIDE, NO.2

mainSU00308796iZN8202110-202205

mainSU00308796iZN8..B202205-202308

mainSU00308796iZN8..C202311

mainSU00308796iZN8..D202407

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

mainSU00303215iZN8202110-202205

mainSU00303215iZN8..B202205-202308

mainSU00303215iZN8..D202407

mainSU00303215iZN8..C202311

8401

8601

SU00300013

mainSU003-00013¥30

SU00300065

mainSU003-00065¥20

SU00300068

mainSU003-00068¥30

SU00302915

mainSU003-02915¥30

SU00302919

mainSU003-02919¥30

SU00302967

mainSU003-02967¥70

21 parts on this diagram · 3 diagrams in section
