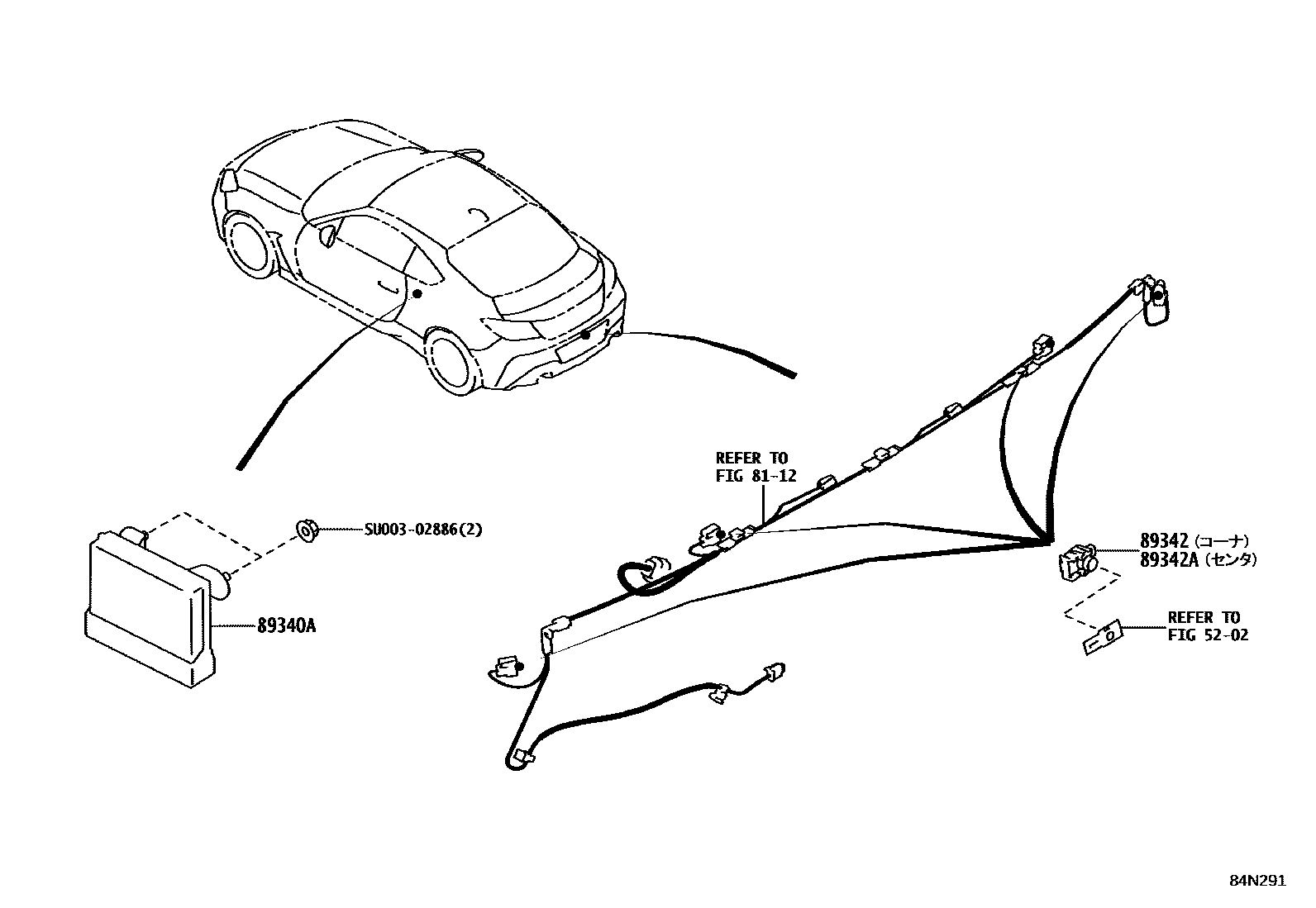

Toyota GR 86 — CLEARANCE & BACK SONAR

5202

8112

89340ACOMPUTER ASSY, CLEARANCE WARNING

mainSU00308768iZN8..6FC202110-202308

mainSU00311445iZN8..C202311

89342SENSOR, ULTRASONIC, REAR CORNER

mainSU00308522iZN8..6FC..(RZ,SZ)..B202110-202308

MAGNETITE GRAY M,P8Y

mainSU00308523iZN8..6FC..(RZ,SZ)..B202110-202308

ICE SILVER METALLIC,G1U

mainSU00308524iZN8..(RC,RCG,RZ,SZ)..D202110-202308

CRYSTAL BLACK SILICA,D4S

mainSU00308525iZN8..6FC..(RZ,SZ)..B202110-202308

CRYSTAL WHITE PEARL,K1X

mainSU00308765iZN8..6FC..(RZ,SZ)..B202110-202308

BRIGHT BLUE,DAR

mainSU00308766iZN8..(RC,RCG,RZ,SZ)..C202110-202308

SAPPHIRE BLUE PEARL,WCH

mainSU00308767iZN8..(RC,RCG,RZ,SZ)..D202110-202308

IGNITION RED,DCK

mainSU00310337iZN8..6FC202110-202205

LAPIS BLUE PEARL,K3X

mainSU00310338iZN8..6FC202110-202205

PURE RED,M7Y

mainSU00310970iZN8..6FC..ORA202205-202308

SOLAR ORANGE PEARL

mainSU00311414iZN8..(RC,RCG,RZ,SZ)..C202311

OASIS BLUE,XDA

mainSU00311877iZN8..D202407

MOSS GREEN,DMG

89342ASENSOR, ULTRASONIC, REAR CENTER

mainSU00308522iZN8..(RC,RCG,RZ,SZ)..D202110-202308

MAGNETITE GRAY M,P8Y

mainSU00308523iZN8..(RC,RCG,RZ,SZ)..D202110-202308

ICE SILVER METALLIC,G1U

mainSU00308524iZN8..(RC,RCG,RZ,SZ)..C202110-202308

CRYSTAL BLACK SILICA,D4S

mainSU00308525iZN8..6FC..(RZ,SZ)..B202110-202308

CRYSTAL WHITE PEARL,K1X

mainSU00308765iZN8..6FC..(RZ,SZ)..B202110-202308

BRIGHT BLUE,DAR

mainSU00308766iZN8..(RC,RCG,RZ,SZ)..D202110-202308

SAPPHIRE BLUE PEARL,WCH

mainSU00308767iZN8..C202110-202308

IGNITION RED,DCK

mainSU00310337iZN8..6FC202110-202205

LAPIS BLUE PEARL,K3X

mainSU00310338iZN8..6FC202110-202205

PURE RED,M7Y

mainSU00310970iZN8..6FC..ORA202205-202308

SOLAR ORANGE PEARL

mainSU00311414iZN8..(RC,RCG,RZ,SZ)..C202311

OASIS BLUE,XDA

mainSU00311877iZN8..D202407

MOSS GREEN,DMG

SU00302886

mainSU003-02886¥70

6 parts on this diagram · 1 diagram in section
