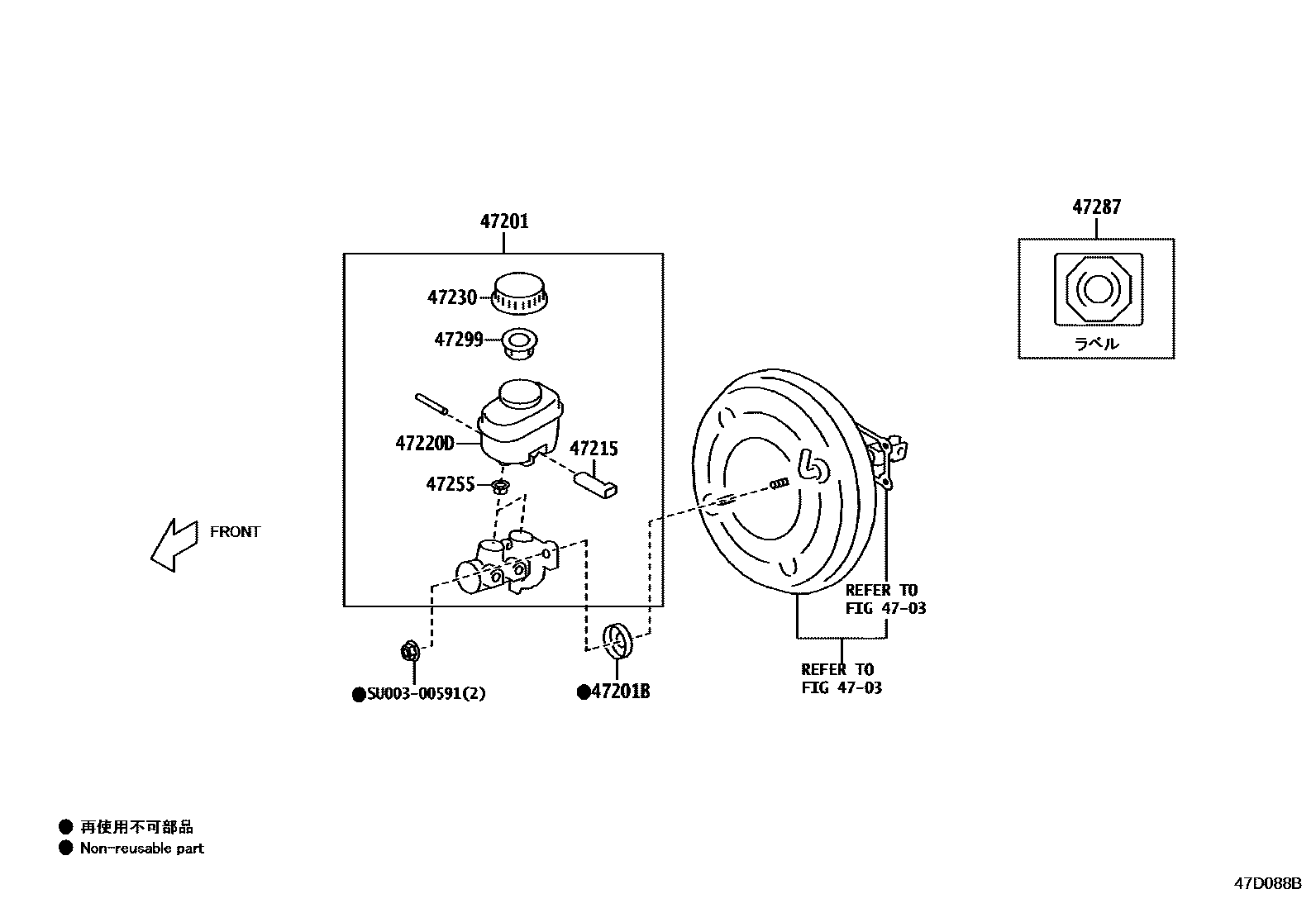

Toyota GR 86 — BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

mainSU00310513iZN8202110-202308

47201BRING, O(FOR BRAKE MASTER CYLINDER)

mainSU00300593iZN8202110-202308

subSU003-12052¥900

47215INDICATOR, BRAKE FLUID

mainSU00304246iZN8202110-202308

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

mainSU00310515iZN8202110-202308

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

mainSU00310494iZN8202110-202308

47255GROMMET, MASTER CYLINDER RESERVOIR

mainSU00304245iZN8202110-202308

47287LABEL, BRAKE FLUID INFORMATION

mainSU00300565iZN8202110-202308

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

mainSU00304243iZN8202110-202308

SU00300591

mainSU003-00591¥40

10 parts on this diagram · 1 diagram in section
