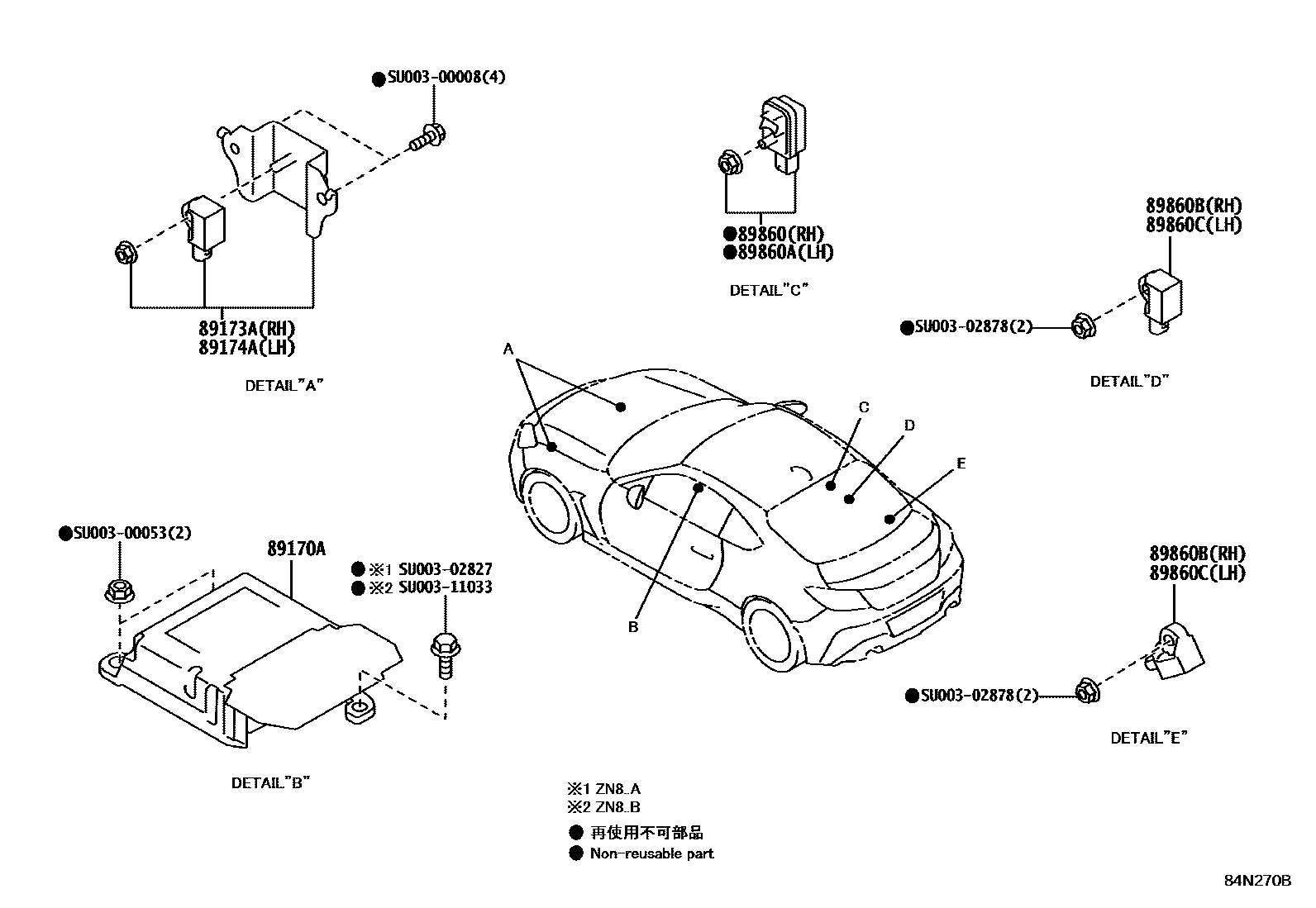

Toyota GR 86 — AIR BAG

89170ACOMPUTER ASSY, AIRBAG

mainSU00308982iZN8202110-202205

subSU003-11254¥74,000

mainSU00308982iZN8..B202205-202209

subSU003-11254¥74,000

mainSU00311254iZN8..B202209-202308

mainSU00311254iZN8..C202311

mainSU00311254iZN8..D202407

89173ASENSOR, AIRBAG, FRONT RH

mainSU00308983iZN8202110-202205

subSU003-11257¥5,300

mainSU00308983iZN8..B202205-202209

subSU003-11257¥5,300

mainSU00311257iZN8..B202209-202308

mainSU00311257iZN8..C202311

mainSU00311257iZN8..D202407

89174ASENSOR, AIRBAG, FRONT LH

mainSU00308983iZN8202110-202205

subSU003-11257¥5,300

mainSU00308983iZN8..B202205-202209

subSU003-11257¥5,300

mainSU00311257iZN8..B202209-202308

mainSU00311257iZN8..C202311

mainSU00311257iZN8..D202407

89860SENSOR ASSY, SIDE AIRBAG, RH

mainSU00308580iZN8202110-202205

subSU003-11189¥14,400

mainSU00308580iZN8..B202205-202207

subSU003-11189¥14,400

mainSU00311189iZN8..B202207-202308

mainSU00311189iZN8..C202311

mainSU00311189iZN8..D202407

89860ASENSOR ASSY, SIDE AIRBAG, LH

mainSU00308580iZN8202110-202205

subSU003-11189¥14,400

mainSU00308580iZN8..B202205-202207

subSU003-11189¥14,400

mainSU00311189iZN8..B202207-202308

mainSU00311189iZN8..C202311

mainSU00311189iZN8..D202407

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

mainSU00308579iZN8202110-202205

mainSU00308579iZN8..B202205-202308

mainSU00308579iZN8..C202311

mainSU00308579iZN8..D202407

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

mainSU00308579iZN8202110-202205

mainSU00308579iZN8..B202205-202308

mainSU00308579iZN8..C202311

mainSU00308579iZN8..D202407

SU00300008

mainSU003-00008¥20

SU00300053

mainSU003-00053¥30

SU00302827

mainSU003-02827¥130

SU00302878

mainSU003-02878¥90

SU00311033

mainSU003-11033¥130

12 parts on this diagram · 1 diagram in section
