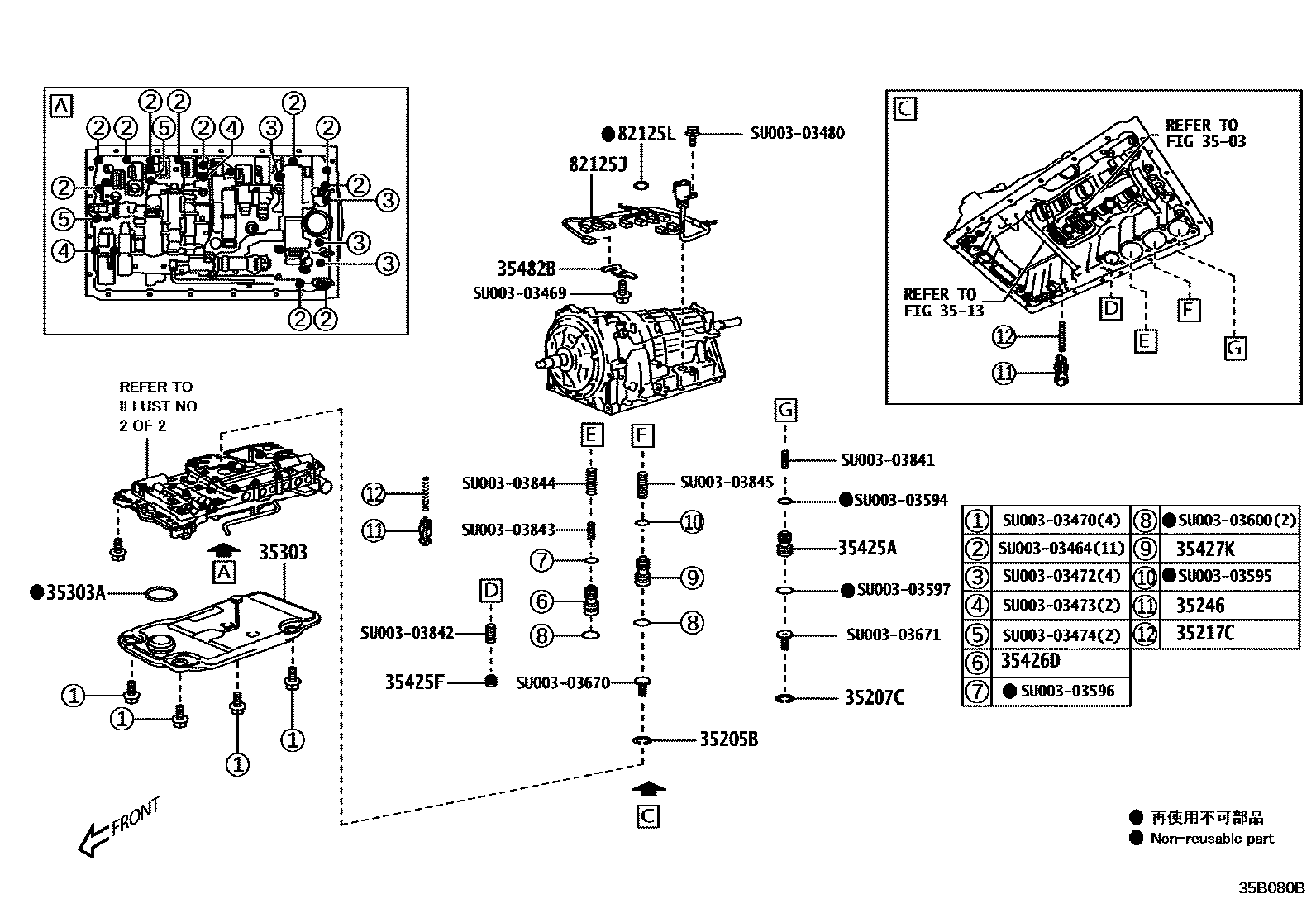

Toyota GR 86 — VALVE BODY & OIL STRAINER (ATM)
3503
3513
35205BRING, HOLE SNAP (FOR B-3 ACCUMULATOR SPRING)
35207CRING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)
35217CSPRING, COMPRESSION
35246VALVE, CHECK, NO.1
35303STRAINER SUB-ASSY, OIL
35303ARING, O (FOR OIL STRAINER)
35425APISTON, C-2 ACCUMULATOR
35425FVALVE, ACCUMULATOR
35426DPISTON, C-3 ACCUMULATOR
35427KPISTON, B-3 ACCUMULATOR
35482BCLAMP, TEMPERATURE SENSOR
82125JWIRE, TRANSMISSION
82125LRING, O(FOR TRANSMISSION WIRE)
SU00303464
SU00303469
SU00303470
SU00303472
SU00303473
SU00303474
SU00303480
SU00303594
SU00303595
SU00303596
SU00303597
SU00303600
SU00303670
SU00303671
SU00303841
SU00303842
SU00303843
SU00303844
SU00303845
34 parts on this diagram · 2 diagrams in section
