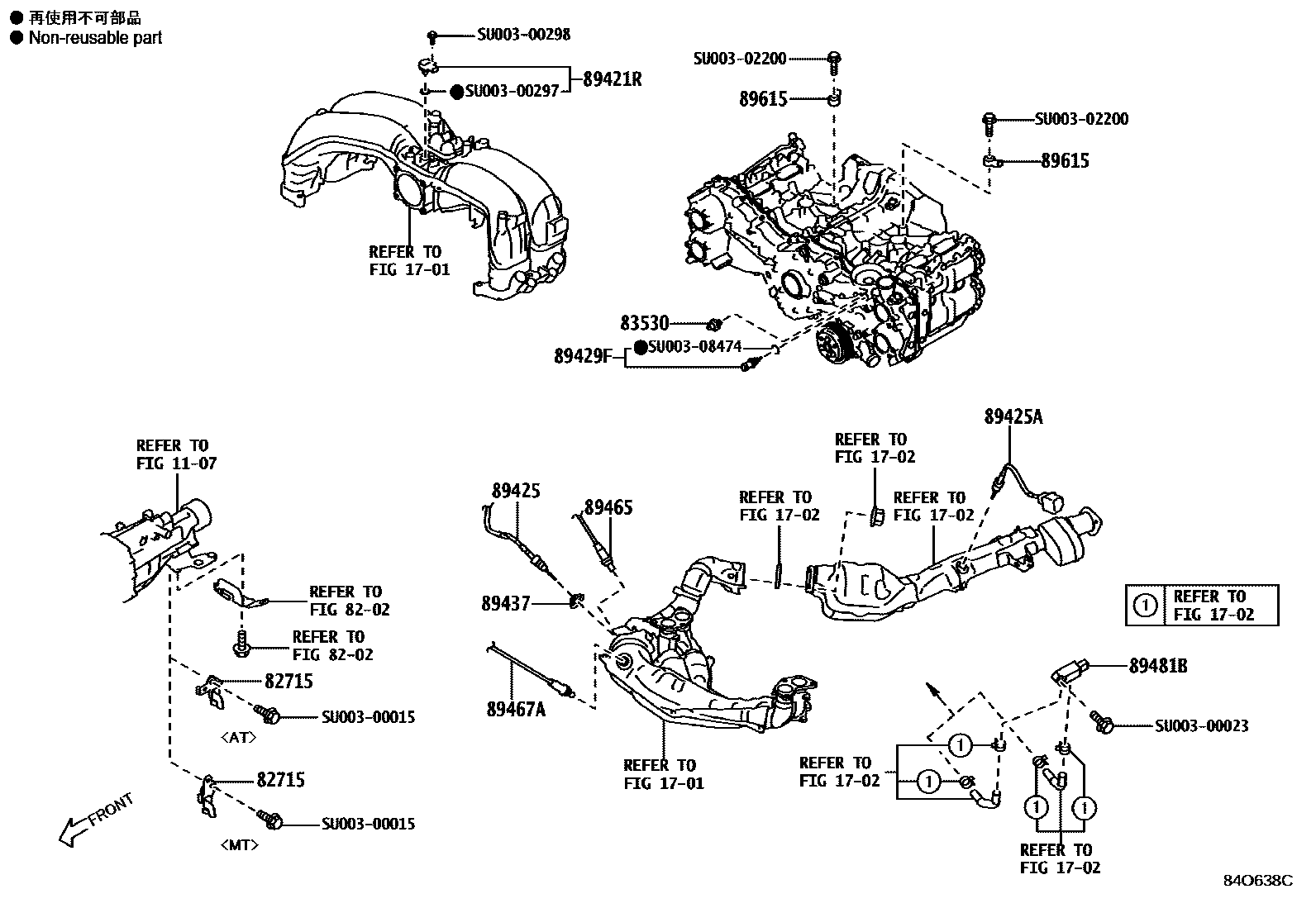

Toyota GR 86 — SWITCH & RELAY & COMPUTER

0001 1ENGINE 0002 1TRANSMISSION 0003 1ENGINE ROOM RELAY BLOCK 1/2 0004 1ENGINE ROOM RELAY BLOCK 1/2 0005 1ENGINE ROOM RELAY BLOCK 2/2 0006 1ENGINE ROOM RELAY BLOCK 2/2 0007 1ENGINE ROOM & COWL 0008 1ENGINE ROOM & COWL 0009 1COWL 0010 1COWL 0011 1INSTRUMENT PANEL 0012 1INSTRUMENT PANEL 0013 1BRAKE & CLUTCH PEDAL 0014 1BRAKE & CLUTCH PEDAL 0015 1STEERING 1/2 0016 1STEERING 2/2 0017 1STEERING 2/2 0018 1CONSOLE & DOOR 0019 1CONSOLE & DOOR 0020 1FLOOR & LUGGAGE

1107

1701

1702

8202

82715BRACKET,WIRING HARNESS CLAMP

mainSU00310554iZN8..6FC..B202206-202310

mainSU00310554iZN8..6FC..C202311

mainSU00310554iZN8..6FC..(BASE,HIGH)..D202408

mainSU00310554iZN8..6FC202203-202206

mainSU00310555iZN8..6F202203-202206

mainSU00310555iZN8..6F..B202206-202310

mainSU00310555iZN8..6F..(BASE,HIGH)..D202408

mainSU00310555iZN8..6F..C202311

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

mainSU00306104iZN8..C202311

mainSU00306104iZN8202203-202206

mainSU00306104iZN8..D202408

mainSU00306104iZN8..B202206-202310

89421RSENSOR, AIR PRESSURE

mainSU00308424iZN8..B202206-202310

mainSU00308424iZN8..D202408

mainSU00308424iZN8202203-202206

mainSU00308424iZN8..C202311

89425SENSOR, EXHAUST GAS TEMPERATURE

mainSU00310315iZN8..(BASE,HIGH)..D202408

mainSU00310315iZN8202203-202206

mainSU00310315iZN8..B202206-202310

mainSU00310315iZN8..C202311

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

mainSU00310316iZN8..B202206-202310

mainSU00310316iZN8..C202311

mainSU00310316iZN8..(BASE,HIGH)..D202408

mainSU00310316iZN8202203-202206

89429FSENSOR, TEMPERATURE

mainSU00308426iZN8202203-202206

mainSU00308426iZN8..C202311

mainSU00308426iZN8..D202408

mainSU00308426iZN8..B202206-202310

89437COVER, SENSOR

mainSU00308450iZN8202203-202206

mainSU00308450iZN8..C202311

mainSU00308450iZN8..(BASE,HIGH)..D202408

mainSU00308450iZN8..B202206-202310

89465SENSOR, OXYGEN

mainSU00309044iZN8202203-202206

mainSU00309044iZN8..C202311

mainSU00309044iZN8..D202408

mainSU00309044iZN8..B202206-202310

89467ASENSOR, WIDE RANGE AIR FUEL RATIO

mainSU00309043iZN8202203-202206

mainSU00309043iZN8..C202311

mainSU00309043iZN8..D202408

mainSU00309043iZN8..B202206-202310

89481BSENSOR, DIFFERENTIAL PRESSURE

mainSU00308425iZN8202203-202206

mainSU00308425iZN8..C202311

mainSU00308425iZN8..(BASE,HIGH)..D202408

mainSU00308425iZN8..B202206-202310

89615SENSOR, KNOCK CONTROL

mainSU00306707iZN8202203-202206

mainSU00306707iZN8..C202311

mainSU00306707iZN8..B202206-202310

mainSU00306707iZN8..D202408

SU00300015

mainSU003-00015¥30

SU00300023

mainSU003-00023¥60

SU00300297

mainSU003-00297¥170

SU00300298

mainSU003-00298¥130

SU00302200

mainSU003-02200¥90

SU00308474

mainSU003-08474¥150

21 parts on this diagram · 20 diagrams in section
