Toyota GR 86 — SIDE MOULDING

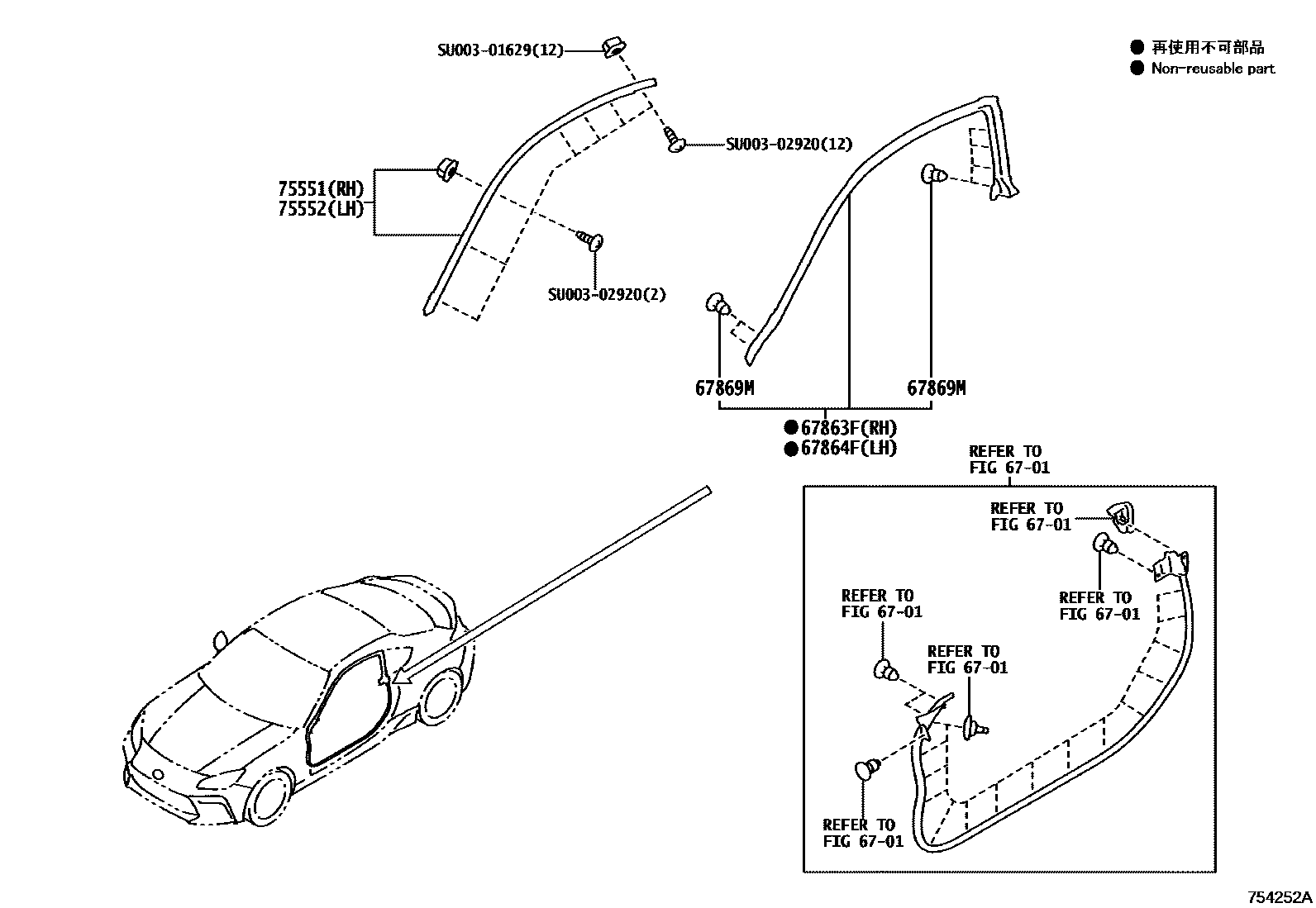

Parts diagram
6701
67863FWEATHERSTRIP, FRONT DOOR, NO.2 RH
mainSU00308599i202206-202310
mainSU00308599i202203-202206
mainSU00308599i202311
mainSU00308599i202408
67864FWEATHERSTRIP, FRONT DOOR, NO.2 LH
mainSU00308600i202203-202206
mainSU00308600i202206-202310
mainSU00308600i202311
mainSU00308600i202408
67869MCLIP, DOOR WEATHERSTRIP
mainSU00308553i202203-202206
mainSU00308553i202206-202310
mainSU00308553i202311
mainSU00308553i202408
75551MOULDING, ROOF DRIP SIDE FINISH, RH
mainSU00308601i202203-202206
NO PAINT REQ
mainSU00308601i202206-202310
NO PAINT REQ
mainSU00308601i202311
NO PAINT REQ
mainSU00308601i202408
NO PAINT REQ
75552MOULDING, ROOF DRIP SIDE FINISH, LH
mainSU00308602i202203-202206
NO PAINT REQ
mainSU00308602i202206-202310
NO PAINT REQ
mainSU00308602i202311
NO PAINT REQ
mainSU00308602i202408
NO PAINT REQ
SU00301629
mainSU003-01629¥30
SU00302920
mainSU003-02920¥30

8 parts on this diagram · 4 diagrams in section
