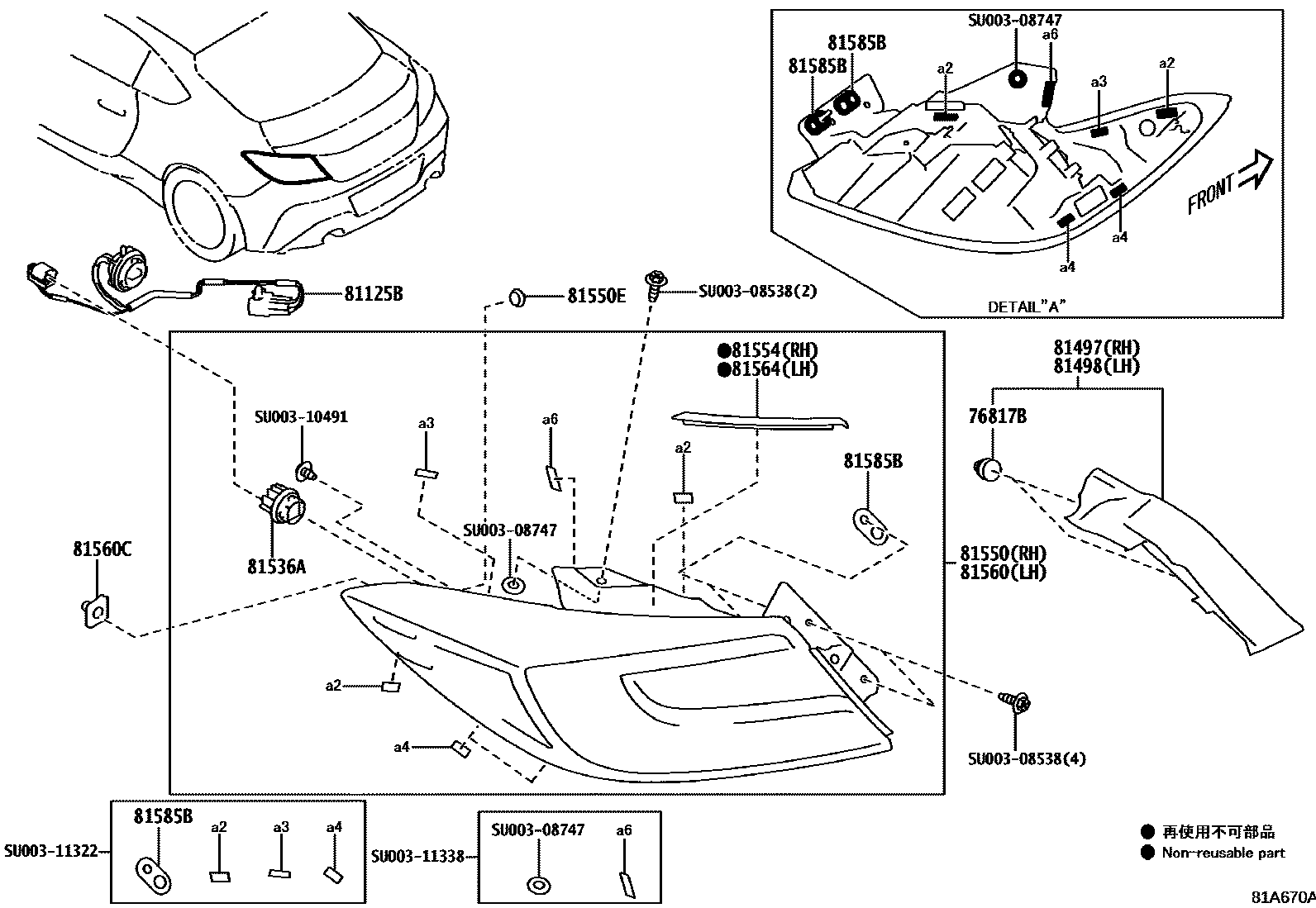

Toyota GR 86 — REAR COMBINATION LAMP

76817BCLIP, REAR LAMP

mainSU00308559iZN8202203-202310

81125BCORD, REAR COMBINATION LAMP

mainSU00310492iZN8202203-202302

subSU003-11359¥2,330

mainSU00311359iZN8..B202302-202310

81497COVER, REAR COMBINATION LAMP, RH

mainSU00308748iZN8202203-202310

81498COVER, REAR COMBINATION LAMP, LH

mainSU00308749iZN8202203-202310

81536ALED, REAR COMBINATION LAMP

mainSU00310490iZN8202203-202310

81550LAMP ASSY, REAR COMBINATION, RH

mainSU00311020iZN8202204-202208

subSU003-11318¥43,000

mainSU00311318iZN8..B202208-202310

81550ECLIP(FOR REAR COMBINATION LAMP)

mainSU00308558iZN8202203-202310

81554GASKET, REAR COMBINATION LAMP BODY, RH

mainSU00310488iZN8202203-202310

81560LAMP ASSY, REAR COMBINATION, LH

mainSU00311021iZN8202204-202208

subSU003-11319¥43,000

mainSU00311319iZN8..B202208-202310

81560CGROMMET

mainSU00308565iZN8202203-202310

81564GASKET, REAR COMBINATION LAMP BODY, LH

mainSU00310489iZN8202203-202310

81585BPACKING, REAR CONBINATION

mainSU00308746iZN8202203-202310

SU00308538

mainSU003-08538¥120

SU00308747

mainSU003-08747¥230

SU00310491

mainSU003-10491¥360

SU00311322

mainSU003-11322¥670

SU00311338

mainSU003-11338¥300

17 parts on this diagram · 1 diagram in section
