Toyota GR 86 — METER

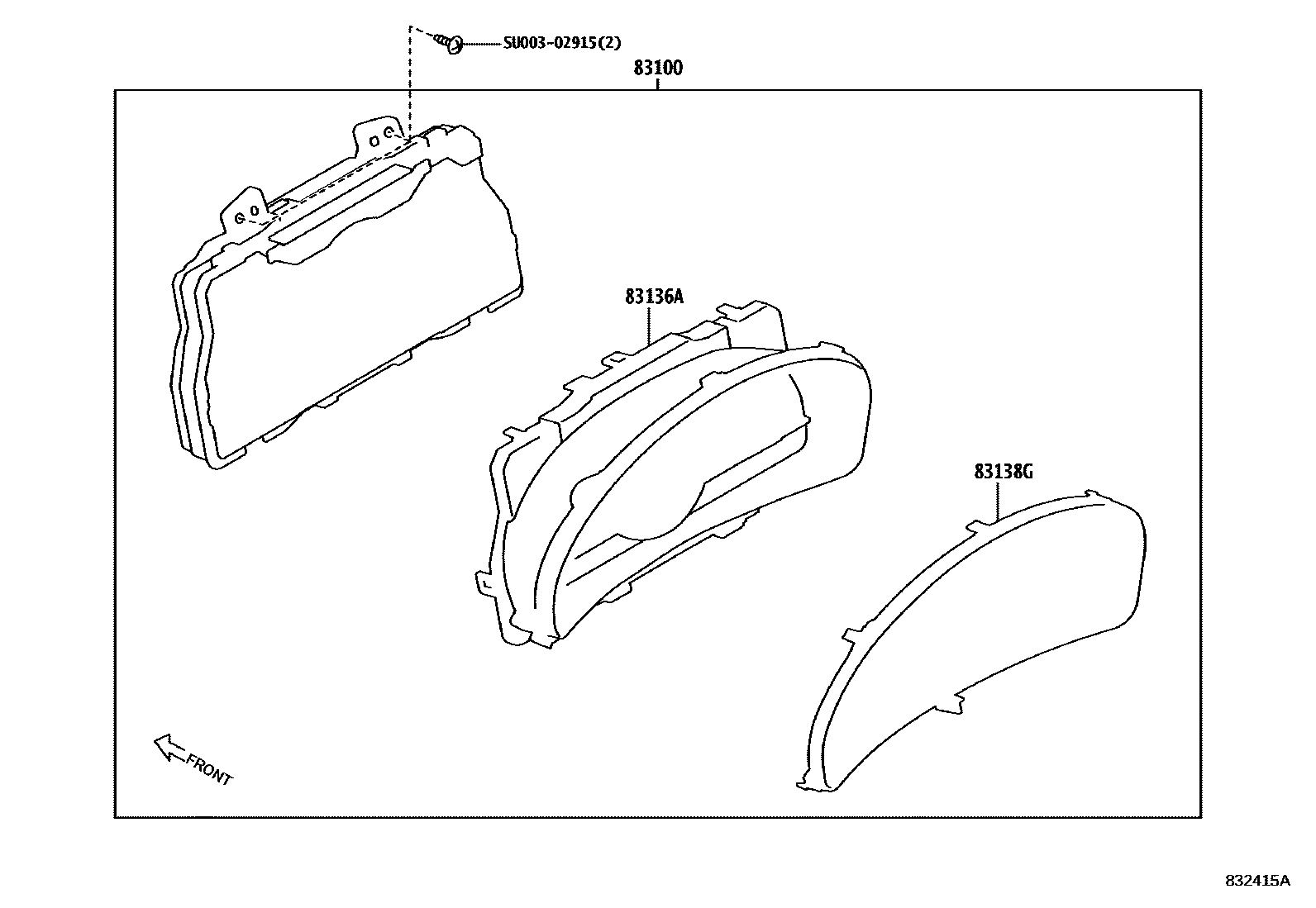

Parts diagram
83100METER ASSY, COMBINATION
mainSU00309637i202203-202206
DENSO
subSU003-12165¥105,000
mainSU00309637i202203-202206
DENSO,DESTINATION CODE=ER
subSU003-12165¥105,000
mainSU00309637i202203-202206
DENSO,DESTINATION CODE=KA
subSU003-12165¥105,000
mainSU00309637i202203-202206
DENSO,DESTINATION CODE=KC
subSU003-12165¥105,000
mainSU00309637i202203-202206
DENSO,DESTINATION CODE=KV
subSU003-12165¥105,000
mainSU00309637i202203-202206
DENSO,DESTINATION CODE=KY
subSU003-12165¥105,000
mainSU00309637i202203-202206
DENSO,DESTINATION CODE=K2
subSU003-12165¥105,000
mainSU00310962i202206-202310
DESTINATION CODE=ER
subSU003-12041¥95,400
mainSU00310962i202206-202310
DESTINATION CODE=KA
subSU003-12041¥95,400
mainSU00310962i202206-202310
DESTINATION CODE=KC
subSU003-12041¥95,400
mainSU00310962i202206-202310
DESTINATION CODE=KV
subSU003-12041¥95,400
mainSU00310962i202206-202310
DESTINATION CODE=KY
subSU003-12041¥95,400
mainSU00310962i202206-202310
DESTINATION CODE=K2
subSU003-12041¥95,400
mainSU00311428i202311-202402
subSU003-12046¥95,400
mainSU00312046i202403
83136ACOVER, COMBINATION METER
mainSU00308919i202203-202206
mainSU00308919i202206-202310
mainSU00308919i202311
mainSU00308919i202408
83138GGLASS, COMBINATION METER
mainSU00308920i202203-202206
mainSU00308920i202206-202310
mainSU00308920i202311
mainSU00308920i202408
SU00302915
mainSU003-02915¥30

4 parts on this diagram · 1 diagram in section
