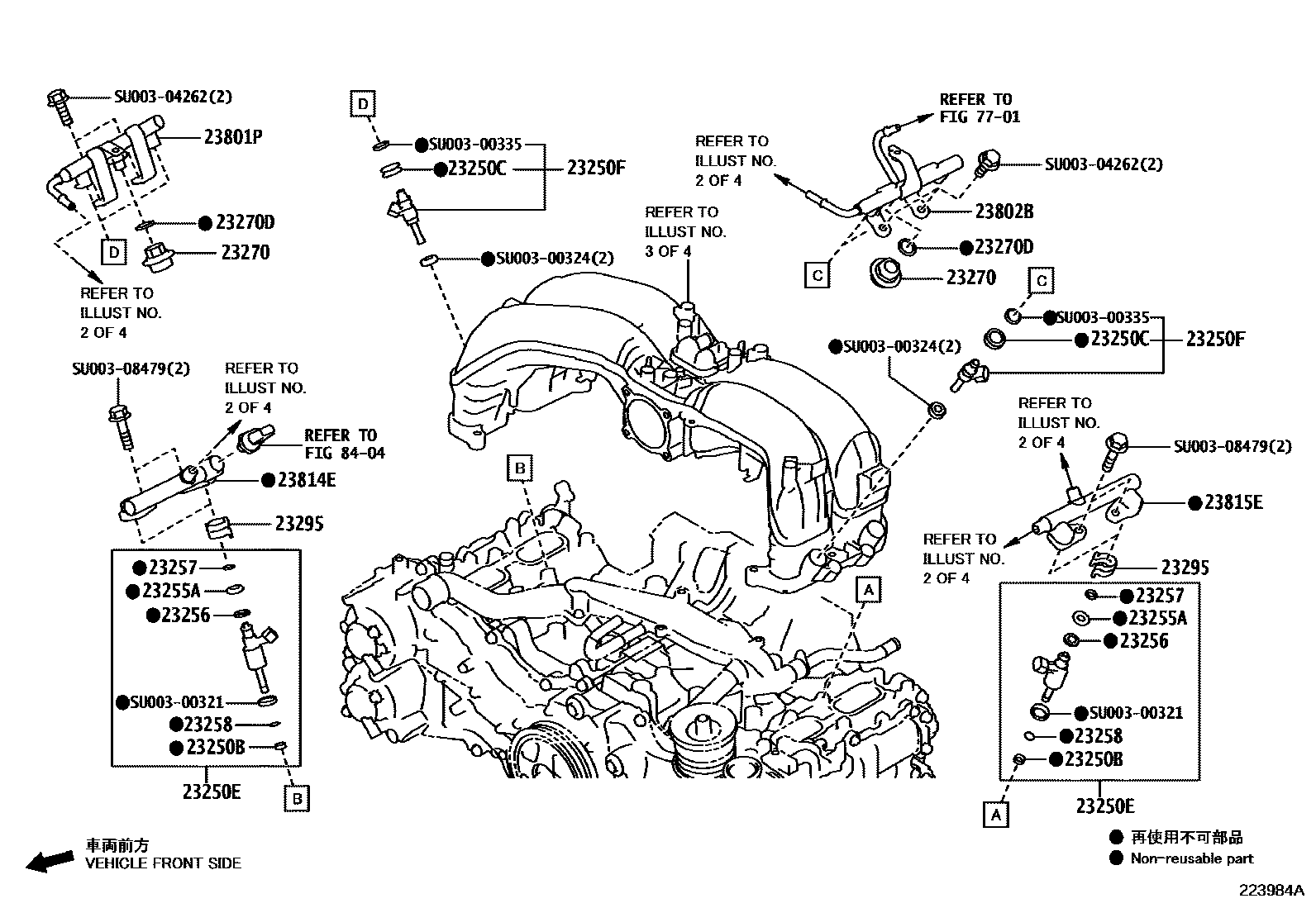

Toyota GR 86 — FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

23250BRING, O(FOR FUEL INJECTOR)

mainSU00300322iFA24..ZN8202203-202310

23250CGROMMET(FOR FUEL INJECTOR)

mainSU00300317iFA24..ZN8202203-202310

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

mainSU00310912iFA24..ZN8202203-202310

MARK 1

mainSU00310913iFA24..ZN8..(BASE,HIGH)..B202203-202310

MARK 2

mainSU00310914iFA24..ZN8..(BASE,HIGH)..B202203-202310

MARK 3

23250FINJECTOR ASSY, FUEL(FOR PORT)

mainSU00300325iFA24..ZN8202203-202310

mainSU00300326iFA24..ZN8..CHI..B202206-202310

23255ASEAL, FUEL INJECTOR

mainSU00300323iFA24..ZN8..B202203-202310

23256RING, FUEL INJECTOR BACK-UP, NO.1

mainSU00300333iFA24..ZN8202203-202310

23257RING, FUEL INJECTOR BACK-UP, NO.2

mainSU00309032iFA24..ZN8202203-202310

23258RING, FUEL INJECTOR BACK-UP, NO.3

mainSU00305632iFA24..ZN8202203-202310

23270DAMPER ASSY, FUEL PRESSURE PULSATION

mainSU00300331iFA24..ZN8..D202203-202310

23270DGASKET(FOR PULSATION DAMPER)

mainSU00300346iFA24..ZN8202203-202310

23295HOLDER, INJECTOR, NO.1

mainSU00300320iFA24..ZN8202203-202310

23801PPIPE SUB-ASSY, FUEL, NO.1

mainSU00308675iFA24..ZN8202203-202310

23802BPIPE SUB-ASSY, FUEL, NO.2

mainSU00308676iFA24..ZN8202203-202310

23814EPIPE, FUEL DELIVERY, RH

mainSU00308415iFA24..ZN8202203-202310

23815PIPE, FUEL DELIVERY, NO.2

mainSU00309033iFA24..ZN8202203-202310

23815EPIPE, FUEL DELIVERY, LH

mainSU00308416iFA24..ZN8202203-202310

7701

8404

SU00300321

mainSU003-00321¥440

SU00300324

mainSU003-00324¥200

SU00300335

mainSU003-00335¥200

SU00304262

mainSU003-04262¥70

SU00308479

mainSU003-08479¥60

23 parts on this diagram · 4 diagrams in section
