Toyota GR 86 — FRONT SPRING & SHOCK ABSORBER

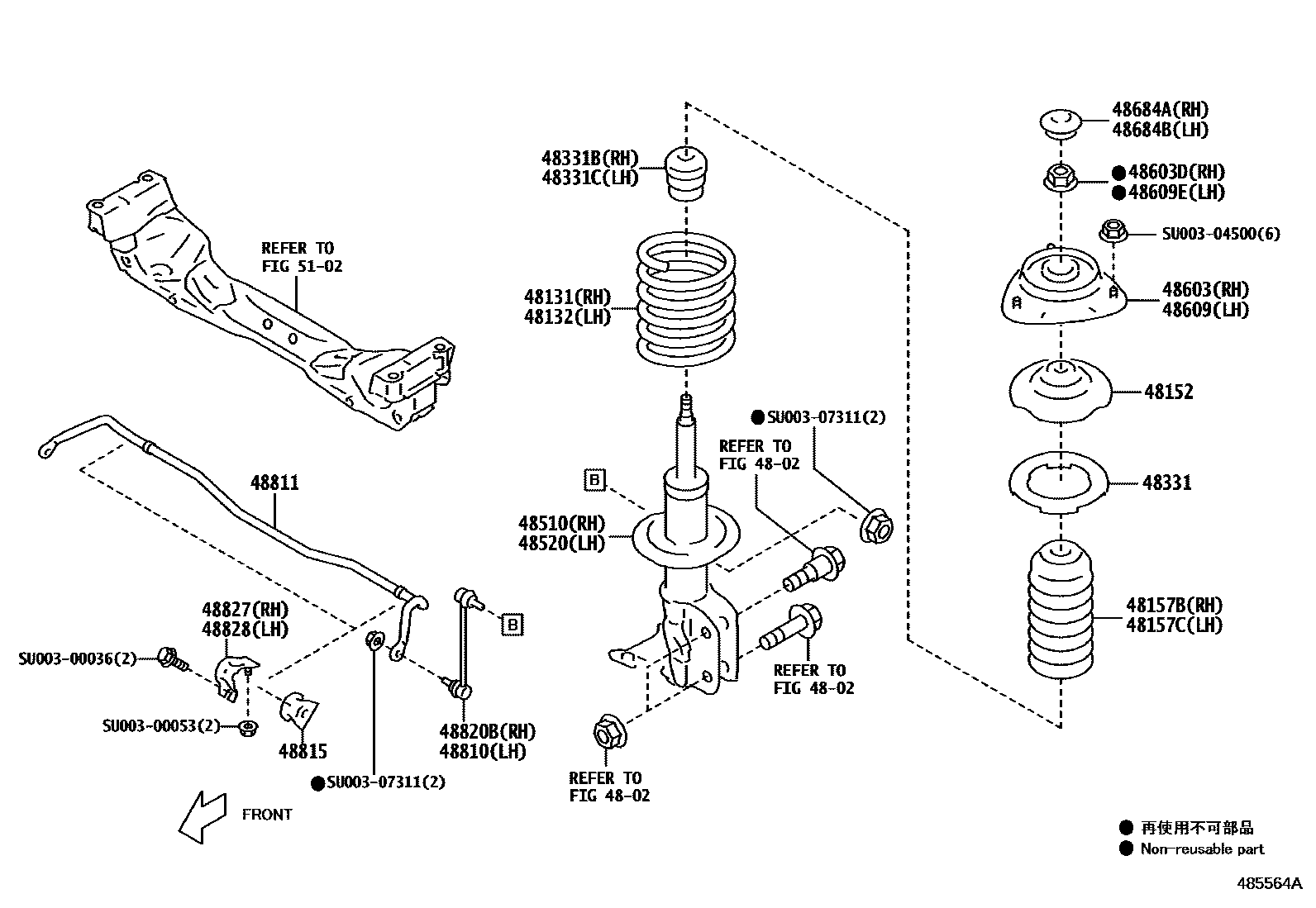

Parts diagram
4802
48131SPRING, FRONT COIL, RH
mainSU00310776i202203-202206
mainSU00310776i202206-202310
mainSU00310776i202311
mainSU00310776i202408
mainSU00310777i202206-202310
mainSU00310777i202408
mainSU00310777i202311
mainSU00310777i202203-202206
48132SPRING, FRONT COIL, LH
mainSU00310776i202311
mainSU00310776i202203-202206
mainSU00310776i202408
mainSU00310776i202206-202310
mainSU00310777i202203-202206
mainSU00310777i202206-202310
mainSU00310777i202408
mainSU00310777i202311
48152SEAT, FRONT SPRING
mainSU00300376i202203-202206
mainSU00300376i202206-202310
mainSU00300376i202311
mainSU00300376i202408
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
mainSU00300375i202203-202206
mainSU00300375i202206-202310
mainSU00300375i202311
mainSU00300375i202408
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
mainSU00300375i202203-202206
mainSU00300375i202311
mainSU00300375i202408
mainSU00300375i202206-202310
48331BUMPER, FRONT SPRING, NO.1
mainSU00300377i202311
mainSU00300377i202206-202310
mainSU00300377i202203-202206
mainSU00300377i202408
48331BBUMPER, FRONT SPRING, RH
mainSU00300374i202311
mainSU00300374i202206-202310
mainSU00300374i202203-202206
mainSU00300374i202408
48331CBUMPER, FRONT SPRING, LH
mainSU00300374i202408
mainSU00300374i202206-202310
mainSU00300374i202203-202206
mainSU00300374i202311
48510ABSORBER ASSY, SHOCK, FRONT RH
mainSU00309576i202311
MARK 20310-CC020,OPTION CODE=FB
mainSU00309576i202311
MARK 20310-CC020,OPTION CODE=FD
mainSU00309576i202311
MARK 20310-CC020,OPTION CODE=FX
mainSU00309576i202311
MARK 20310-CC020
mainSU00309576i202311
MARK 20310-CC020,OPTION CODE=AB
mainSU00309576i202311
MARK 20310-CC020,OPTION CODE=XB
mainSU00309576i202311
MARK 20310-CC020,OPTION CODE=AX
mainSU00309576i202311
MARK 20310-CC020,OPTION CODE=XX
mainSU00309576i202311
MARK 20310-CC020,OPTION CODE=AD
mainSU00309576i202311
MARK 20310-CC020,OPTION CODE=XD
mainSU00309576i202203-202206
MARK 20310-CC020
mainSU00309576i202206-202310
MARK 20310-CC020
mainSU00311419i202408
MARK 20310-CC060
mainSU00311419i202408
MARK 20310-CC060,OPTION CODE=FF
mainSU00311419i202408
MARK 20310-CC060,OPTION CODE=FH
mainSU00311830i202408
MARK 20310-CC100
mainSU00311830i202408
MARK 20310-CC100,OPTION CODE=AB
mainSU00311830i202408
MARK 20310-CC100,OPTION CODE=XB
mainSU00311830i202408
MARK 20310-CC100,OPTION CODE=AX
mainSU00311830i202408
MARK 20310-CC100,OPTION CODE=XX
mainSU00311830i202408
MARK 20310-CC100,OPTION CODE=AD
mainSU00311830i202408
MARK 20310-CC100,OPTION CODE=XD
mainSU00311830i202408
MARK 20310-CC100,OPTION CODE=FB
mainSU00311830i202408
MARK 20310-CC100,OPTION CODE=FD
mainSU00311830i202408
MARK 20310-CC100,OPTION CODE=FX
48520ABSORBER ASSY, SHOCK, FRONT LH
mainSU00309577i202311
MARK 20310-CC030,OPTION CODE=AD
mainSU00309577i202203-202206
MARK 20310-CC030
mainSU00309577i202206-202310
MARK 20310-CC030
mainSU00309577i202311
MARK 20310-CC030
mainSU00309577i202311
MARK 20310-CC030,OPTION CODE=AB
mainSU00309577i202311
MARK 20310-CC030,OPTION CODE=XB
mainSU00309577i202311
MARK 20310-CC030,OPTION CODE=AX
mainSU00309577i202311
MARK 20310-CC030,OPTION CODE=XX
mainSU00309577i202311
MARK 20310-CC030,OPTION CODE=XD
mainSU00309577i202311
MARK 20310-CC030,OPTION CODE=FB
mainSU00309577i202311
MARK 20310-CC030,OPTION CODE=FD
mainSU00309577i202311
MARK 20310-CC030,OPTION CODE=FX
mainSU00311420i202408
MARK 20310-CC070
mainSU00311420i202408
MARK 20310-CC070,OPTION CODE=FF
mainSU00311420i202408
MARK 20310-CC070,OPTION CODE=FH
mainSU00311831i202408
MARK 20310-CC110
mainSU00311831i202408
MARK 20310-CC110,OPTION CODE=AB
mainSU00311831i202408
MARK 20310-CC110,OPTION CODE=XB
mainSU00311831i202408
MARK 20310-CC110,OPTION CODE=AX
mainSU00311831i202408
MARK 20310-CC110,OPTION CODE=XX
mainSU00311831i202408
MARK 20310-CC110,OPTION CODE=AD
mainSU00311831i202408
MARK 20310-CC110,OPTION CODE=XD
mainSU00311831i202408
MARK 20310-CC110,OPTION CODE=FB
mainSU00311831i202408
MARK 20310-CC110,OPTION CODE=FD
mainSU00311831i202408
MARK 20310-CC110,OPTION CODE=FX
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
mainSU00309509i202203-202206
mainSU00309509i202206-202310
mainSU00309509i202311
mainSU00309509i202408
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
mainSU00302868i202203-202206
mainSU00302868i202206-202310
mainSU00302868i202311
mainSU00302868i202408
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
mainSU00309509i202203-202206
mainSU00309509i202206-202310
mainSU00309509i202311
mainSU00309509i202408
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
mainSU00302868i202203-202206
mainSU00302868i202206-202310
mainSU00302868i202311
mainSU00302868i202408
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
mainSU00300378i202203-202206
mainSU00300378i202206-202310
mainSU00300378i202311
mainSU00300378i202408
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
mainSU00300378i202203-202206
mainSU00300378i202206-202310
mainSU00300378i202311
mainSU00300378i202408
48810LINK ASSY, FRONT STABILIZER, LH
mainSU00300394i202203-202206
mainSU00300394i202206-202310
mainSU00300394i202311
mainSU00300394i202408
48811BAR, STABILIZER, FRONT
mainSU00300391i202203-202206
mainSU00300391i202206-202310
mainSU00300391i202311
mainSU00300391i202408
48815BUSH, FRONT STABILIZER BAR, NO.1
mainSU00300392i202203-202206
mainSU00300392i202206-202310
mainSU00300392i202311
mainSU00300392i202408
48820BLINK ASSY, FRONT STABILIZER, RH
mainSU00300394i202203-202206
mainSU00300394i202206-202310
mainSU00300394i202311
mainSU00300394i202408
48827BRACKET, FRONT STABILIZER, NO.2 RH
mainSU00300393i202203-202206
mainSU00300393i202206-202310
mainSU00300393i202311
mainSU00300393i202408
48828BRACKET, FRONT STABILIZER, NO.2 LH
mainSU00300393i202203-202206
mainSU00300393i202206-202310
mainSU00300393i202311
mainSU00300393i202408
5102
SU00300036
mainSU003-00036¥120
SU00300053
mainSU003-00053¥30
SU00304500
mainSU003-04500¥110
SU00307311
mainSU003-07311¥100

28 parts on this diagram · 1 diagram in section
