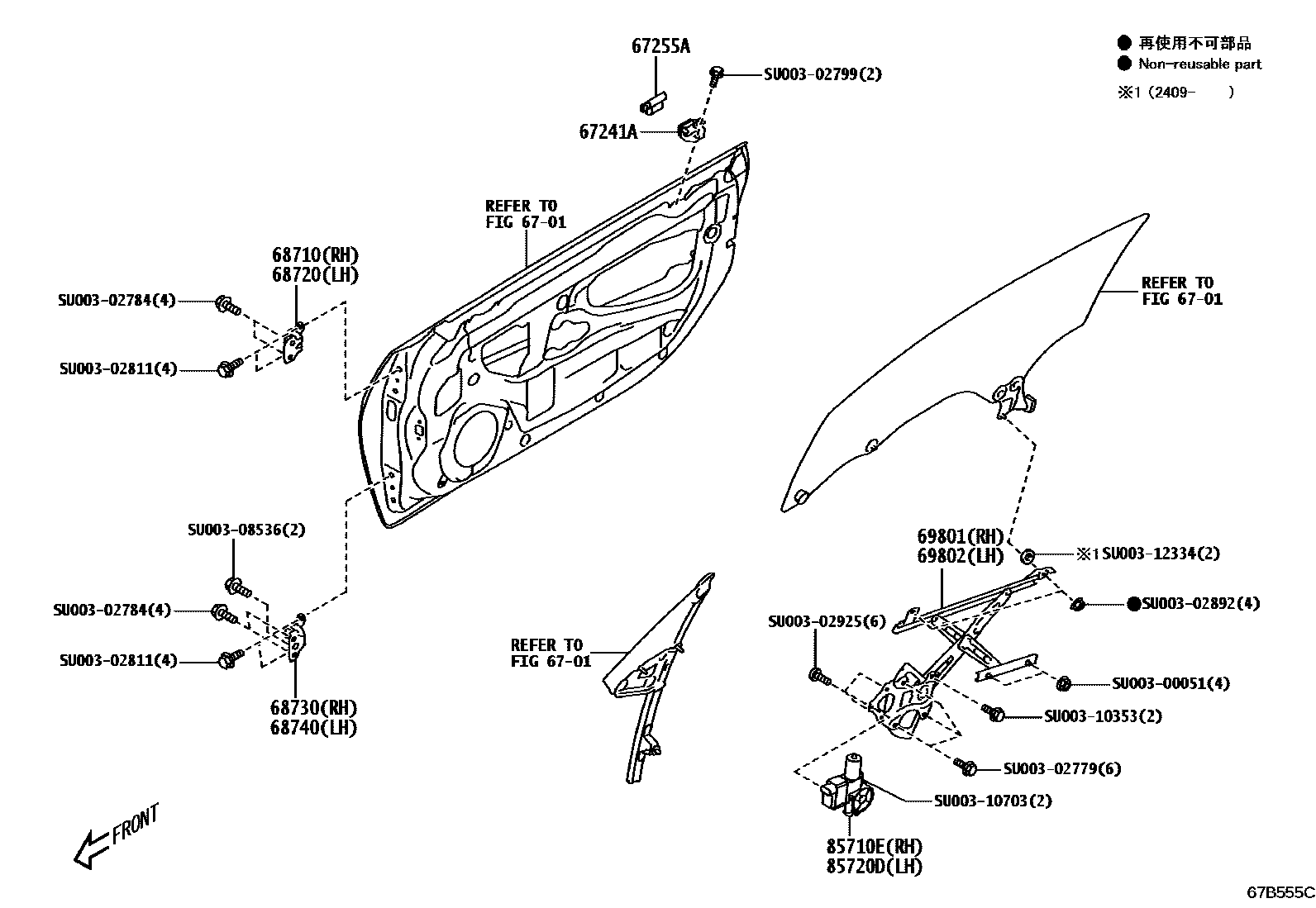

Toyota GR 86 — FRONT DOOR WINDOW REGULATOR & HINGE

6701

67241ASTABILIZER, DOOR GLASS, INNER

mainSU00301617iZN8202203-202310

67255ASTABILIZER, FRONT DOOR GLASS, OUTER

mainSU00301616iZN8202203-202310

68710HINGE ASSY, FRONT DOOR, UPPER RH

mainSU00310349iZN8202203-202310

68720HINGE ASSY, FRONT DOOR, UPPER LH

mainSU00310350iZN8202203-202310

68730HINGE ASSY, FRONT DOOR, LOWER RH

mainSU00310351iZN8202203-202310

68740HINGE ASSY, FRONT DOOR, LOWER LH

mainSU00310352iZN8202203-202310

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

mainSU00301606iZN8202203-202310

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

mainSU00301607iZN8202203-202310

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

mainSU00308668iZN8202203-202310

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

mainSU00308669iZN8202203-202310

SU00300051

mainSU003-00051¥20

SU00302779

mainSU003-02779¥30

SU00302784

mainSU003-02784¥150

SU00302799

mainSU003-02799¥70

SU00302811

mainSU003-02811¥120

SU00302892

mainSU003-02892¥70

SU00302925

mainSU003-02925¥70

SU00308536

mainSU003-08536¥190

SU00310353

mainSU003-10353¥70

SU00310703

mainSU003-10703¥440

SU00312334

mainSU003-12334

22 parts on this diagram · 1 diagram in section
