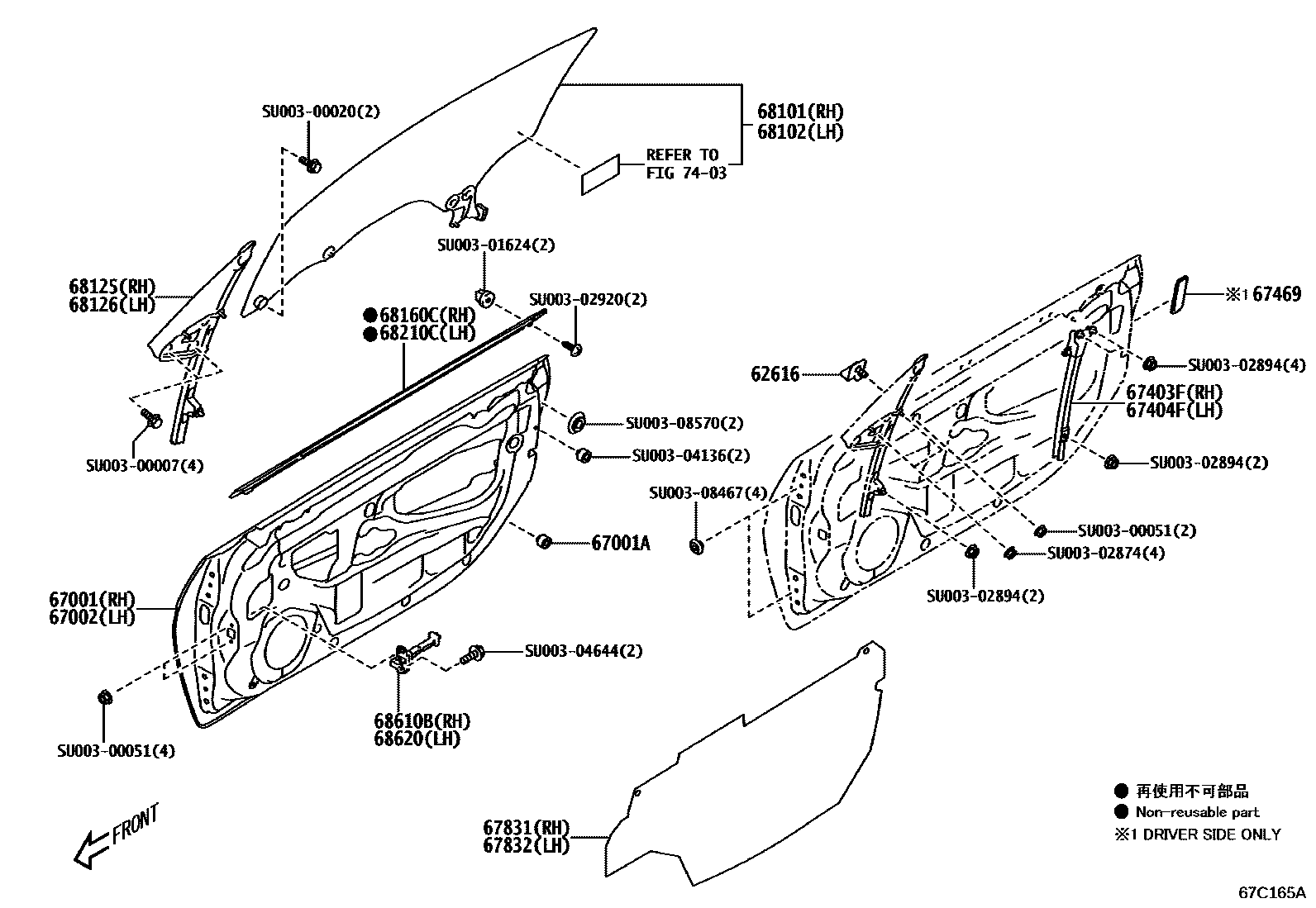

Toyota GR 86 — FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1WEATHERSTRIP 0003 1DOOR TRIM

62616STOPPER, FRONT DOOR SASH

mainSU00304118iZN8202203-202310

67001PANEL SUB-ASSY, FRONT DOOR, RH

mainSU00308678iZN8202203-202209

subSU003-11250¥66,600

mainSU00311250iZN8..B202209-202310

67001ACUSHION, FRONT DOOR PANEL

mainSU00308567iZN8202203-202310

67002PANEL SUB-ASSY, FRONT DOOR, LH

mainSU00308679iZN8202203-202209

subSU003-11251¥66,600

mainSU00311251iZN8..B202209-202310

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

mainSU00308682iZN8..B202203-202310

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

mainSU00308683iZN8202203-202310

67469PROTECTOR, FRONT DOOR GUIDE

mainSU00301625iZN8..D202203-202310

67831COVER, FRONT DOOR SERVICE HOLE, RH

mainSU00308684iZN8..C202203-202310

67832COVER, FRONT DOOR SERVICE HOLE, LH

mainSU00308685iZN8202203-202310

68101GLASS SUB-ASSY, FRONT DOOR, RH

mainSU003G0031iZN8..LHD202203-202310

DESTINATION CODE=KA

mainSU003G0031iZN8..LHD202203-202310

DESTINATION CODE=KC

mainSU003G0031iZN8..LHD202203-202310

DESTINATION CODE=KV

mainSU003G0031iZN8..LHD202203-202310

DESTINATION CODE=KY

mainSU003G0031iZN8..LHD202203-202310

DESTINATION CODE=K2

mainSU003G0031iZN8..C202311-202409

mainSU003G0053iZN8..C,D202409

68102GLASS SUB-ASSY, FRONT DOOR, LH

mainSU003G0032iZN8202203-202409

mainSU003G0054iZN8..C,D202409

68125GLASS, FRONT DOOR FIX WINDOW, RH

mainSU003G0033iZN8202203-202301

mainSU003G0048iZN8..B202301-202310

68126GLASS, FRONT DOOR FIX WINDOW, LH

mainSU003G0034iZN8202203-202301

subSU003-G0049¥42,700

mainSU003G0049iZN8..B202301-202310

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

mainSU00308688iZN8202203-202310

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

mainSU00308689iZN8202203-202310

68610BCHECK ASSY, FRONT DOOR, RH

mainSU00308681iZN8202203-202310

68620CHECK ASSY, FRONT DOOR, LH

mainSU00308681iZN8202203-202310

7403

SU00300007

mainSU003-00007¥20

SU00300020

mainSU003-00020¥40

SU00300051

mainSU003-00051¥20

SU00301624

mainSU003-01624¥60

SU00302874

mainSU003-02874¥90

SU00302894

mainSU003-02894¥40

SU00302920

mainSU003-02920¥30

SU00304136

mainSU003-04136¥110

SU00304644

mainSU003-04644¥70

SU00308467

mainSU003-08467¥60

SU00308570

mainSU003-08570¥20

29 parts on this diagram · 3 diagrams in section
