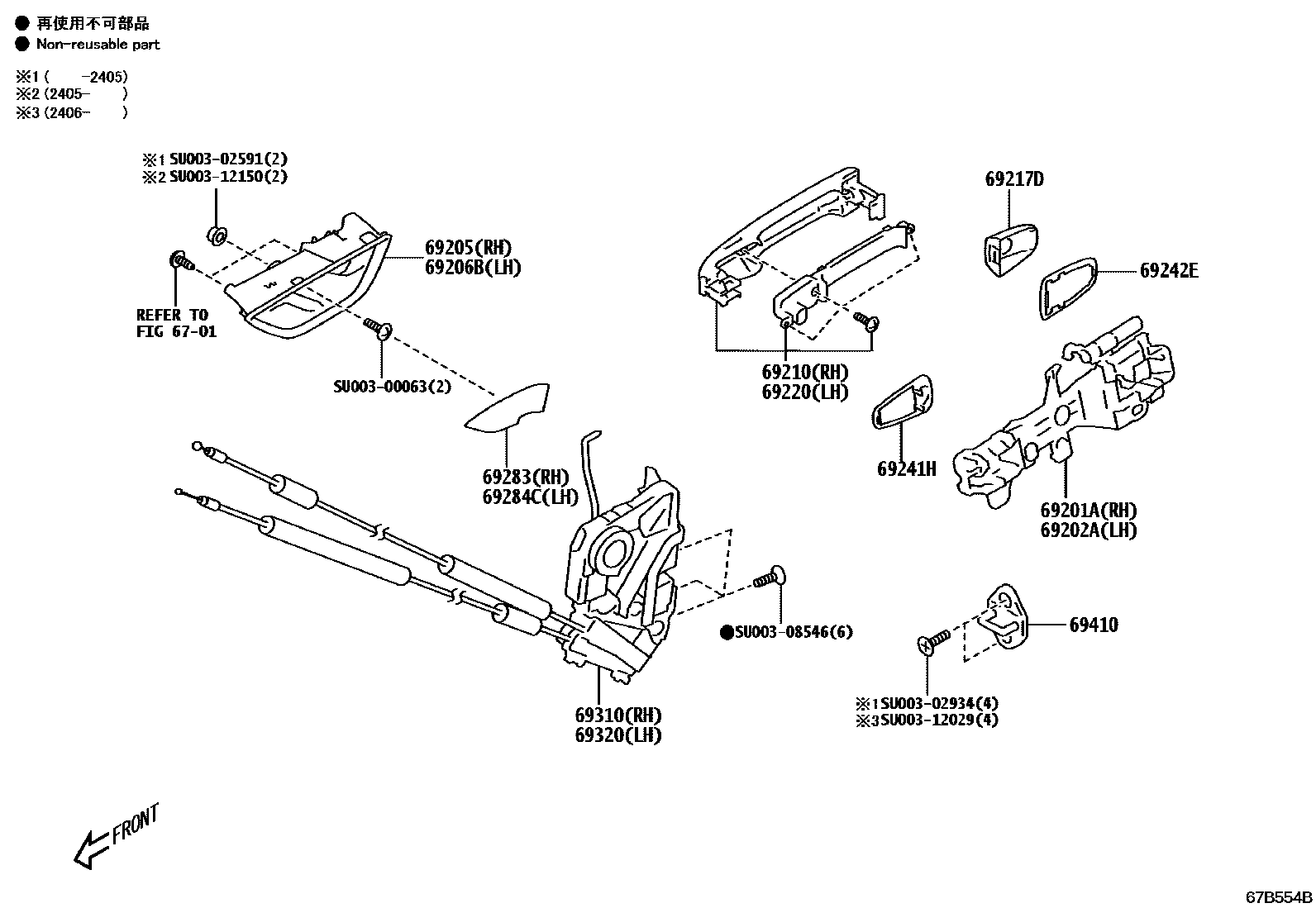

Toyota GR 86 — FRONT DOOR LOCK & HANDLE
6701
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
DESTINATION CODE=K2
DESTINATION CODE=KA
DESTINATION CODE=KC
DESTINATION CODE=KV
DESTINATION CODE=KY
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
MAGNETITE GRAY M,P8Y
ICE SILVER METALLIC,G1U
CRYSTAL BLACK SILICA,D4S
CRYSTAL WHITE PEARL,K1X
BRIGHT BLUE,DAR
SAPPHIRE BLUE PEARL,WCH
IGNITION RED,DCK
SOLAR ORANGE PEARL
OASIS BLUE,XDA
MOSS GREEN,DMG
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
DESTINATION CODE=KY,CRYSTAL BLACK SILICA,D4S,DRIVER SIDE
CRYSTAL BLACK SILICA,D4S,DRIVER SIDE
DESTINATION CODE=EK,CRYSTAL BLACK SILICA,D4S,DRIVER SIDE
DESTINATION CODE=ER,CRYSTAL BLACK SILICA,D4S,DRIVER SIDE
DESTINATION CODE=KA,CRYSTAL BLACK SILICA,D4S,DRIVER SIDE
DESTINATION CODE=KC,CRYSTAL BLACK SILICA,D4S,DRIVER SIDE
DESTINATION CODE=KV,CRYSTAL BLACK SILICA,D4S,DRIVER SIDE
DESTINATION CODE=K2,CRYSTAL BLACK SILICA,D4S,DRIVER SIDE
CRYSTAL BLACK SILICA,D4S,PASSENGER SIDE
DESTINATION CODE=EK,CRYSTAL BLACK SILICA,D4S,PASSENGER SIDE
DESTINATION CODE=ER,CRYSTAL BLACK SILICA,D4S,PASSENGER SIDE
DESTINATION CODE=KA,CRYSTAL BLACK SILICA,D4S,PASSENGER SIDE
DESTINATION CODE=KC,CRYSTAL BLACK SILICA,D4S,PASSENGER SIDE
DESTINATION CODE=KV,CRYSTAL BLACK SILICA,D4S,PASSENGER SIDE
DESTINATION CODE=KY,CRYSTAL BLACK SILICA,D4S,PASSENGER SIDE
DESTINATION CODE=K2,CRYSTAL BLACK SILICA,D4S,PASSENGER SIDE
CRYSTAL BLACK SILICA,D4S,PASSENGER SIDE
DESTINATION CODE=K2,ICE SILVER METALLIC,G1U,DRIVER SIDE
ICE SILVER METALLIC,G1U,DRIVER SIDE
DESTINATION CODE=EK,ICE SILVER METALLIC,G1U,DRIVER SIDE
DESTINATION CODE=ER,ICE SILVER METALLIC,G1U,DRIVER SIDE
DESTINATION CODE=KA,ICE SILVER METALLIC,G1U,DRIVER SIDE
DESTINATION CODE=KC,ICE SILVER METALLIC,G1U,DRIVER SIDE
DESTINATION CODE=KV,ICE SILVER METALLIC,G1U,DRIVER SIDE
DESTINATION CODE=KY,ICE SILVER METALLIC,G1U,DRIVER SIDE
DESTINATION CODE=ER,CRYSTAL WHITE PEARL,K1X,DRIVER SIDE
DESTINATION CODE=EK,CRYSTAL WHITE PEARL,K1X,DRIVER SIDE
CRYSTAL WHITE PEARL,K1X,DRIVER SIDE
DESTINATION CODE=KY,CRYSTAL WHITE PEARL,K1X,DRIVER SIDE
DESTINATION CODE=KV,CRYSTAL WHITE PEARL,K1X,DRIVER SIDE
DESTINATION CODE=KC,CRYSTAL WHITE PEARL,K1X,DRIVER SIDE
DESTINATION CODE=KA,CRYSTAL WHITE PEARL,K1X,DRIVER SIDE
DESTINATION CODE=K2,CRYSTAL WHITE PEARL,K1X,DRIVER SIDE
DESTINATION CODE=K2,ICE SILVER METALLIC,G1U,PASSENGER SIDE
ICE SILVER METALLIC,G1U,PASSENGER SIDE
DESTINATION CODE=EK,ICE SILVER METALLIC,G1U,PASSENGER SIDE
DESTINATION CODE=ER,ICE SILVER METALLIC,G1U,PASSENGER SIDE
DESTINATION CODE=KA,ICE SILVER METALLIC,G1U,PASSENGER SIDE
DESTINATION CODE=KC,ICE SILVER METALLIC,G1U,PASSENGER SIDE
DESTINATION CODE=KV,ICE SILVER METALLIC,G1U,PASSENGER SIDE
DESTINATION CODE=KY,ICE SILVER METALLIC,G1U,PASSENGER SIDE
ICE SILVER METALLIC,G1U,PASSENGER SIDE
DESTINATION CODE=KV,CRYSTAL WHITE PEARL,K1X,PASSENGER SIDE
DESTINATION CODE=KC,CRYSTAL WHITE PEARL,K1X,PASSENGER SIDE
DESTINATION CODE=KA,CRYSTAL WHITE PEARL,K1X,PASSENGER SIDE
DESTINATION CODE=ER,CRYSTAL WHITE PEARL,K1X,PASSENGER SIDE
DESTINATION CODE=EK,CRYSTAL WHITE PEARL,K1X,PASSENGER SIDE
CRYSTAL WHITE PEARL,K1X,PASSENGER SIDE
DESTINATION CODE=K2,CRYSTAL WHITE PEARL,K1X,PASSENGER SIDE
DESTINATION CODE=KY,CRYSTAL WHITE PEARL,K1X,PASSENGER SIDE
CRYSTAL WHITE PEARL,K1X,PASSENGER SIDE
DESTINATION CODE=EK,BRIGHT BLUE,DAR,DRIVER SIDE
DESTINATION CODE=KA,BRIGHT BLUE,DAR,DRIVER SIDE
DESTINATION CODE=KC,BRIGHT BLUE,DAR,DRIVER SIDE
DESTINATION CODE=KV,BRIGHT BLUE,DAR,DRIVER SIDE
DESTINATION CODE=KY,BRIGHT BLUE,DAR,DRIVER SIDE
DESTINATION CODE=K2,BRIGHT BLUE,DAR,DRIVER SIDE
BRIGHT BLUE,DAR,DRIVER SIDE
DESTINATION CODE=ER,BRIGHT BLUE,DAR,DRIVER SIDE
DESTINATION CODE=KA,BRIGHT BLUE,DAR,PASSENGER SIDE
BRIGHT BLUE,DAR,PASSENGER SIDE
DESTINATION CODE=EK,BRIGHT BLUE,DAR,PASSENGER SIDE
DESTINATION CODE=ER,BRIGHT BLUE,DAR,PASSENGER SIDE
DESTINATION CODE=KC,BRIGHT BLUE,DAR,PASSENGER SIDE
DESTINATION CODE=KV,BRIGHT BLUE,DAR,PASSENGER SIDE
DESTINATION CODE=K2,BRIGHT BLUE,DAR,PASSENGER SIDE
DESTINATION CODE=KY,BRIGHT BLUE,DAR,PASSENGER SIDE
DESTINATION CODE=ER,MAGNETITE GRAY M,P8Y,DRIVER SIDE
DESTINATION CODE=KA,MAGNETITE GRAY M,P8Y,DRIVER SIDE
DESTINATION CODE=KC,MAGNETITE GRAY M,P8Y,DRIVER SIDE
DESTINATION CODE=KV,MAGNETITE GRAY M,P8Y,DRIVER SIDE
DESTINATION CODE=KY,MAGNETITE GRAY M,P8Y,DRIVER SIDE
DESTINATION CODE=K2,MAGNETITE GRAY M,P8Y,DRIVER SIDE
MAGNETITE GRAY M,P8Y,DRIVER SIDE
DESTINATION CODE=EK,MAGNETITE GRAY M,P8Y,DRIVER SIDE
DESTINATION CODE=EK,MAGNETITE GRAY M,P8Y,PASSENGER SIDE
MAGNETITE GRAY M,P8Y,PASSENGER SIDE
DESTINATION CODE=ER,MAGNETITE GRAY M,P8Y,PASSENGER SIDE
DESTINATION CODE=KA,MAGNETITE GRAY M,P8Y,PASSENGER SIDE
DESTINATION CODE=KC,MAGNETITE GRAY M,P8Y,PASSENGER SIDE
DESTINATION CODE=KV,MAGNETITE GRAY M,P8Y,PASSENGER SIDE
DESTINATION CODE=KY,MAGNETITE GRAY M,P8Y,PASSENGER SIDE
DESTINATION CODE=K2,MAGNETITE GRAY M,P8Y,PASSENGER SIDE
MAGNETITE GRAY M,P8Y,PASSENGER SIDE
DESTINATION CODE=ER,SAPPHIRE BLUE PEARL,WCH,DRIVER SIDE
DESTINATION CODE=KA,SAPPHIRE BLUE PEARL,WCH,DRIVER SIDE
DESTINATION CODE=KC,SAPPHIRE BLUE PEARL,WCH,DRIVER SIDE
DESTINATION CODE=KV,SAPPHIRE BLUE PEARL,WCH,DRIVER SIDE
DESTINATION CODE=KY,SAPPHIRE BLUE PEARL,WCH,DRIVER SIDE
DESTINATION CODE=K2,SAPPHIRE BLUE PEARL,WCH,DRIVER SIDE
SAPPHIRE BLUE PEARL,WCH,DRIVER SIDE
DESTINATION CODE=EK,SAPPHIRE BLUE PEARL,WCH,DRIVER SIDE
DESTINATION CODE=KV,IGNITION RED,DCK,DRIVER SIDE
DESTINATION CODE=KC,IGNITION RED,DCK,DRIVER SIDE
DESTINATION CODE=KA,IGNITION RED,DCK,DRIVER SIDE
DESTINATION CODE=ER,IGNITION RED,DCK,DRIVER SIDE
DESTINATION CODE=EK,IGNITION RED,DCK,DRIVER SIDE
IGNITION RED,DCK,DRIVER SIDE
DESTINATION CODE=K2,IGNITION RED,DCK,DRIVER SIDE
DESTINATION CODE=KY,IGNITION RED,DCK,DRIVER SIDE
DESTINATION CODE=ER,SAPPHIRE BLUE PEARL,WCH,PASSENGER SIDE
DESTINATION CODE=K2,SAPPHIRE BLUE PEARL,WCH,PASSENGER SIDE
DESTINATION CODE=KY,SAPPHIRE BLUE PEARL,WCH,PASSENGER SIDE
DESTINATION CODE=KV,SAPPHIRE BLUE PEARL,WCH,PASSENGER SIDE
DESTINATION CODE=KC,SAPPHIRE BLUE PEARL,WCH,PASSENGER SIDE
DESTINATION CODE=KA,SAPPHIRE BLUE PEARL,WCH,PASSENGER SIDE
DESTINATION CODE=EK,SAPPHIRE BLUE PEARL,WCH,PASSENGER SIDE
SAPPHIRE BLUE PEARL,WCH,PASSENGER SIDE
SAPPHIRE BLUE PEARL,WCH,PASSENGER SIDE
DESTINATION CODE=K2,IGNITION RED,DCK,PASSENGER SIDE
DESTINATION CODE=KA,IGNITION RED,DCK,PASSENGER SIDE
DESTINATION CODE=EK,IGNITION RED,DCK,PASSENGER SIDE
DESTINATION CODE=ER,IGNITION RED,DCK,PASSENGER SIDE
DESTINATION CODE=KC,IGNITION RED,DCK,PASSENGER SIDE
IGNITION RED,DCK,PASSENGER SIDE
DESTINATION CODE=KV,IGNITION RED,DCK,PASSENGER SIDE
DESTINATION CODE=KY,IGNITION RED,DCK,PASSENGER SIDE
IGNITION RED,DCK,PASSENGER SIDE
SOLAR ORANGE PEARL,DRIVER SIDE
SOLAR ORANGE PEARL,PASSENGER SIDE
OASIS BLUE,XDA,DRIVER SIDE
OASIS BLUE,XDA,PASSENGER SIDE
MOSS GREEN,DMG,DRIVER SIDE
MOSS GREEN,DMG,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
MAGNETITE GRAY M,P8Y
ICE SILVER METALLIC,G1U
CRYSTAL BLACK SILICA,D4S
CRYSTAL WHITE PEARL,K1X
BRIGHT BLUE,DAR
SAPPHIRE BLUE PEARL,WCH
IGNITION RED,DCK
SOLAR ORANGE PEARL
OASIS BLUE,XDA
MOSS GREEN,DMG
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK
69310LOCK ASSY, FRONT DOOR, RH
DESTINATION CODE=K2
DESTINATION CODE=KA
DESTINATION CODE=KC
DESTINATION CODE=KV
DESTINATION CODE=KY
69320LOCK ASSY, FRONT DOOR, LH
DESTINATION CODE=KC
DESTINATION CODE=KA
DESTINATION CODE=K2
DESTINATION CODE=KY
DESTINATION CODE=KV
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
SU00300063
SU00302591
SU00302934
SU00308546
SU00312029
SU00312150
21 parts on this diagram · 1 diagram in section
